Summary of Contents for Energer ENB544SSW

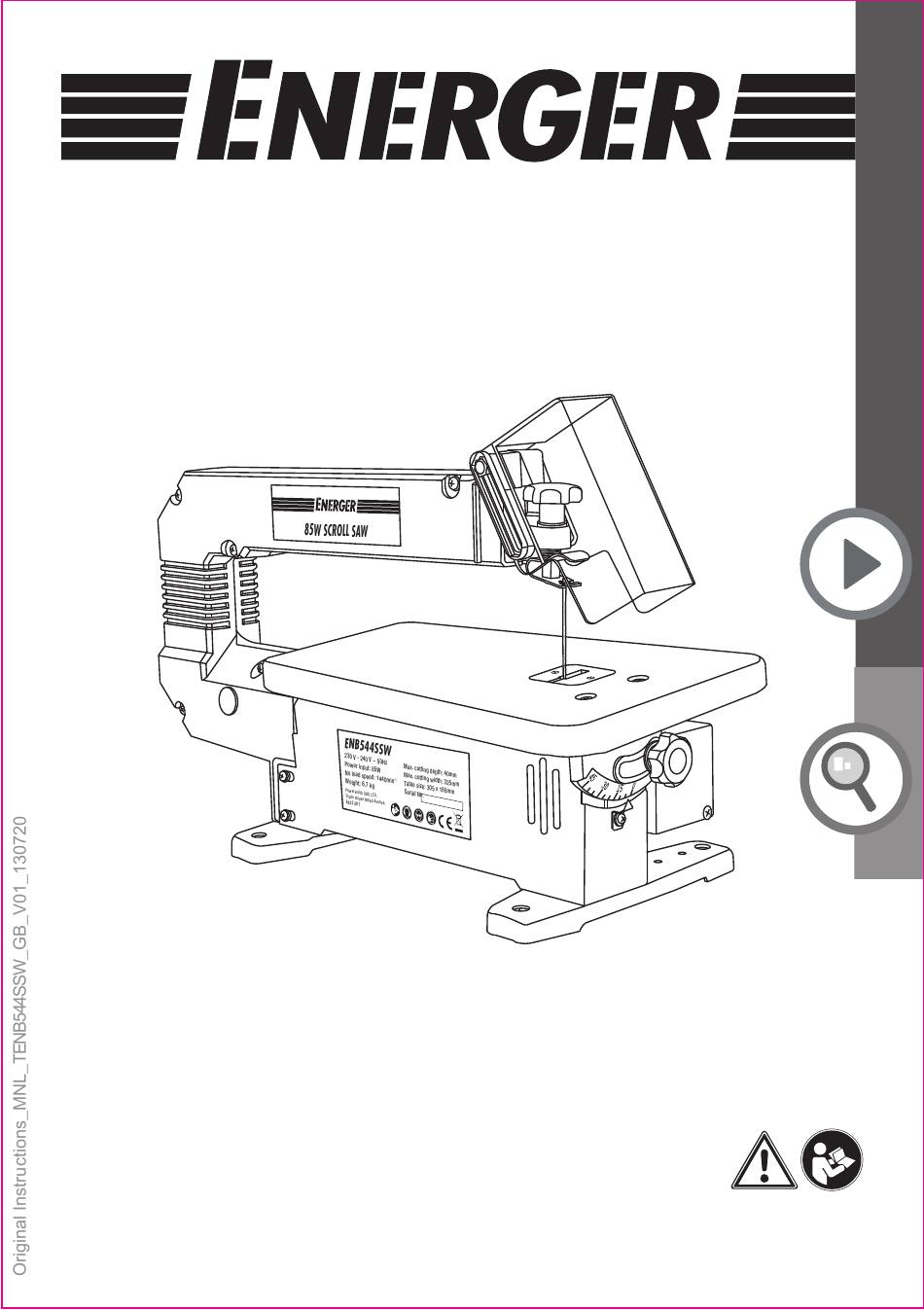

- Page 1 85W Scroll Saw ENB544SSW Barcode: 5052931253654 WARNING! Read the instructions before using the product!
- Page 2 Thank you for choosing a product it will give you full satisfaction in your craft in the work. The scroll saw is a product easy to use, it comes with accessories. For best use, you must read this noice. It will provide key information on the functions of the device and the rules to follow for maintenance.
-
Page 3: Table Of Contents
ENB544SSW by ENERGER Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start more detail... Product functions... -
Page 4: Your Product
ENB544SSW by ENERGER Your product Your product 1. Protective guard 6. Motor 2. Blade tension knob 7. Base 3. Saw blade 8. On/Off switch 4. Table lock knob 9. Table insert 5. Work table 10. Mounting hole... -
Page 5: Technical And Legal Information
ENB544SSW by ENERGER Technical and legal information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input > No load speed 1440min > Max. cutting depth 40mm > Max. cutting width 325mm > Insulation Class Class I > Table size 305x185mm >... - Page 6 ENB544SSW by ENERGER Technical and legal information test stated above and may be used to compare one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure. Warning! The vibration emission value during actual use of the power...
-
Page 7: Safety Warnings
ENB544SSW by ENERGER Technical and legal information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. - Page 8 ENB544SSW by ENERGER Technical and legal information SAVE THESE INSTRUCTIONS 1. Keep work area clear > Cluttered areas and benches invite injuries. 2. Consider work area environment > Do not expose tools to rain. > Do not use tools in damp or wet locations.
- Page 9 ENB544SSW by ENERGER Technical and legal information > Keep proper footing and balance at all times. 14. Maintain tools with care > Keep cutting tools sharp and clean for better and safer performance. > Follow instruction for lubricating and changing accessories.
- Page 10 ENB544SSW by ENERGER Technical and legal information Warning! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint).
- Page 11 ENB544SSW by ENERGER Technical and legal information Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: Work with approved safety equipment, such as those dust masks that are specially...
-
Page 12: Before You Start
ENB544SSW by ENERGER Before you start Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. -
Page 13: Mounting Your Saw
ENB544SSW by ENERGER Before you start > Align the opening of the retaining collar (13 ) with the sharp-nose pliers (not supplied) to the groove (14) on the bolt (11), then push down the retaining collar (13), and secure it to the groove. (Fig. 2) Fig. -
Page 14: To Align The Bevel Indicator
ENB544SSW by ENERGER Before you start To align the bevel indicator > Loosen the table bevel lock knob (4) and move the table until it is approximately perpendicular, or at a right angle to the blade. (Fig. 4) > Use a small square (20) (not supplied) to set the table at 90° to the blade. (Fig. 5) >... -
Page 15: In More Detail
ENB544SSW by ENERGER more detail… Product functions Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... -
Page 16: Product Functions
ENB544SSW by ENERGER Product functions This scroll saw is designed for cutting wood pieces within the maximum recommended capacity with the exception of any material with risk of ignition, explosion or release of hazardous or dangerous to the user or environment. -
Page 17: Straight Line Cutting
ENB544SSW by ENERGER Product functions > You must guide the wood into the blade SLOWLY, because the teeth are very small, and cut ONLY on the down stroke. If you push the wood into the blade too rapidly, you can easily break the blade. - Page 18 ENB544SSW by ENERGER Product functions > Drill a 1/4" hole in the middle of the workpiece, in a area which will not be a part of the finished object. > Switch off and unplug the machine from the supply. > Remove the blade from the machine.
-
Page 19: Care And Maintenance
ENB544SSW by ENERGER Care and maintenance The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep your machine and its cord clean. The outside of the machine can be cleaned using a damp soft cloth with a mild detergent if required. -
Page 20: After Use
ENB544SSW by ENERGER Care and maintenance CAUTION! Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is recommended. Water must never come into contact with the tool. Regularly check that all the fixing screws are tight. They may vibrate loose over time. -
Page 21: Setting The Table For Horizontal Or Bevel Cutting
ENB544SSW by ENERGER Care and maintenance Setting the table for horizontal or bevel cutting > The scroll saw work table can be tilted to the left for bevel cutting up to 45° from the 0° on the horizontal cutting position. -
Page 22: Plug Replacement
ENB544SSW by ENERGER Care and maintenance > Feeding too much material into the saw, - more than the maximum 40mm (1-1/2”) depth for which it was designed. How to determine the right blade for the job This scroll saw accepts a wide variety of blade widths and thickness. The width of the blade, the thickness of the blade, and the number of teeth per inch (TPI) are determined by the type of material and size of the radius being cut. -
Page 23: Removing And Installing Blades
ENB544SSW by ENERGER Care and maintenance is marked with the letter L. 5AMP fuse approved to Green/Yellow BS1362 Blue (neutral) Brown (live) Outer sleeve Cable grip Fig. 10 Warning: Never connect live or netutral wires to the earth terminal of the plug. Only fit an approved 5 Amp BS1363/A plug and the correct rated fuse. - Page 24 ENB544SSW by ENERGER Care and maintenance > Remove blade by pulling forward on blade and then lifting the blade through the access hole in the table. Slight downward pressure against the upper arm may be helpful when removing blade from upper holder. (Fig. 12) Fig.
- Page 25 ENB544SSW by ENERGER Care and maintenance > Install the blade by inserting one end of the blade through the slot in the table then the access hole in the table until you can hook the blade pin in the pin recess in the bottom blade holder. Slide the top blade pin into the pin recess of the top blade holder.
- Page 26 ENB544SSW by ENERGER Care and maintenance IMPORTANT: Side cutting can only be performed when the table is set at 0°. Undertensioning of the blade will cause blades to break rapidly. The thicker, harder and more abrasive the wood you are cutting the more blades...
-
Page 27: Trouble Shooting
ENB544SSW by ENERGER Trouble shooting Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... - Page 28 ENB544SSW by ENERGER Trouble shooting Problem Possible cause Solution 3. Excessive 3.1 Improper mounting 3.1 See proper mounting Vibration (Some of saw instruction vibration is 3.2 Unsuitable mounting 3.2 Replace plywood inevitable when surface workbench surface the saw and with solid lumber...
-
Page 29: Recycling And Disposal
Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Guarantee This ENERGER product carries a guarantee of 12months. If yourproductdevelops a faultwithinthisperiod, youshould, in the first instance contact the retailerwhere the item waspurchased. -
Page 30: Ec Declaration Of Conformity
ENB544SSW by ENERGER EC declaration of conformity Declaration of Conformity We, Importer Powersmith Ltd., BA22 8RT Declare that the product: Designation: 85W scroll saw Model: ENB544SSW Complies with the following Directives: 2004/108/EC Electromagnetic Compatibility Directive 2006/42/EC Machinery Directive 2006/95/EC Low Voltage Directive... - Page 31 Powersmith (UK) LTD. Trade House Mead Avenue, BA22 8RT...
