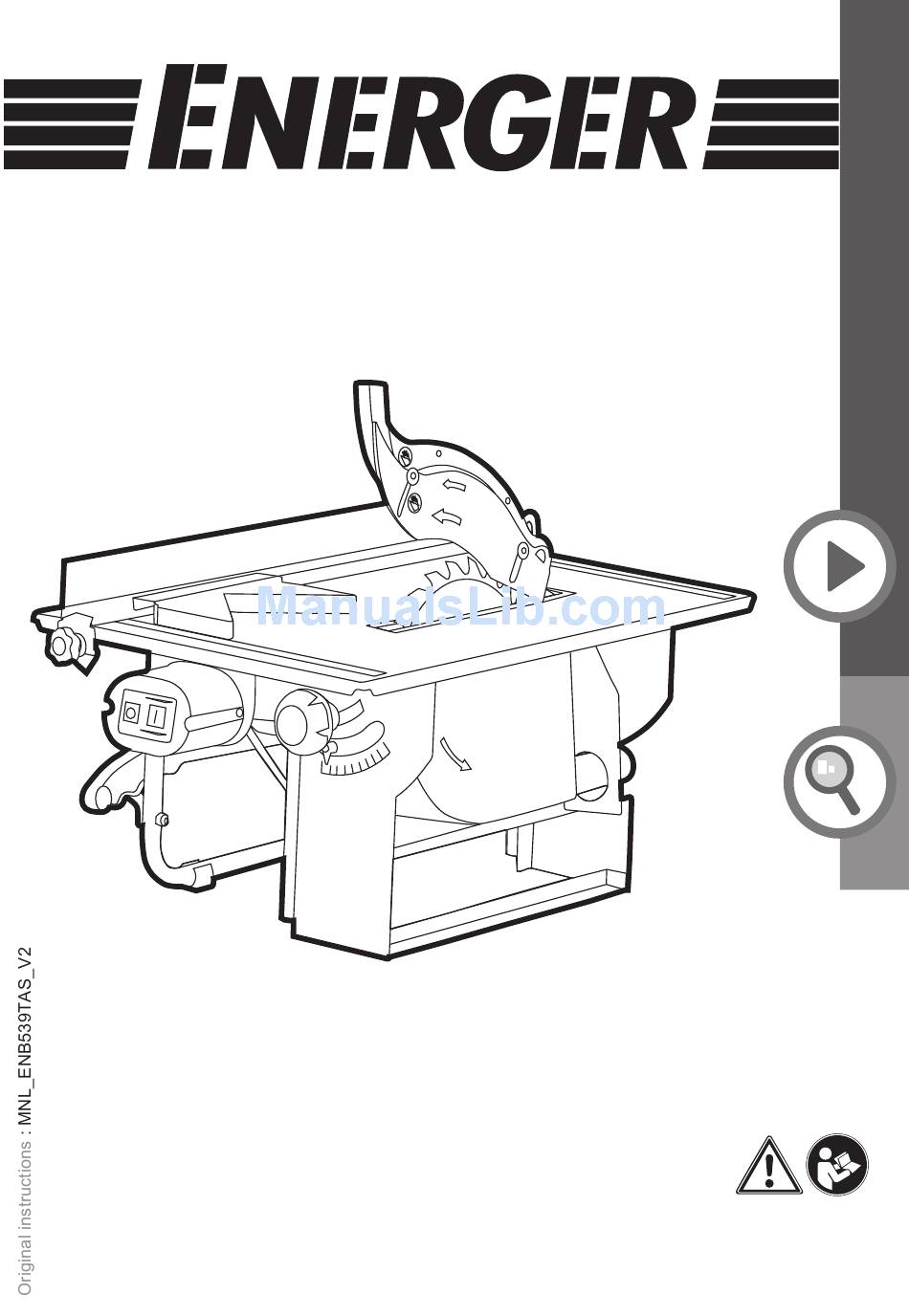

  • Page 1 800W Table Saw ENB539TAS Barcode: 5052931254309 WARNING! Read the instructions before using the product!
  • Page 2 Thank you for choosing a product it will give you full satisfaction in your craft in the work. The band saw is a product easy to use, it comes with accessories. For best use, you must read this noice. It will provide key information on the functions of the device and the rules to follow for maintenance.

  • Page 3: Table Of Contents

    ENB539TAS by Energer Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start more detail... Product functions...

  • Page 4: Your Product

    Your product ENB539TAS by Energer Your product 1. Saw blade guard 10. Push stick 2. Riving knife 11. On/Off switch 3. Screw for saw blade guard 12. Star-grip screw for parallel stop 4. Table insert 13. Rip fence 5. Saw table 14.

  • Page 5: Technical And Legal Information

    Technical and legal ENB539TAS by Energer information Technical data Voltage:230-240V~50Hz Rated input:800W, S2:10min Protection class: I Degree of protection: IP20 No load speed:2950min -1 Carbide saw blade:Ø200 x 30 x 2,4mm Thickness of riving knife:2,2mm Bevel angle range:0 -45º Table size:505 x 335mm Cutting height max.
  • Page 6 Technical and legal ENB539TAS by Energer information Symbols Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance Wear ear protection. Wear eye protection. Wear respiratory protection. The product complies with the applicable European directives...

  • Page 7: General Safety

    Technical and legal ENB539TAS by Energer information General safety WARNING: When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions.
  • Page 8 Technical and legal ENB539TAS by Energer information General safety 11 Do not abuse the cord > Never yank the cord to disconnect it from the socket. > Keep the cord away from heat, oil and sharp edges. 12 Secure work >...
  • Page 9 Technical and legal ENB539TAS by Energer information Additional safety > The bench-type circular saw is designed for the slitting and cross-cutting of all types of timber, commensurate with the machine’s size. The machine is not to be used for cutting any type of round wood.
  • Page 10 ENB539TAS by Energer Technical and legal information Additional safety > Do not use high speed steel (HS) blades. > The push-stick or push block should always be stored with the machine when not in use safe operation: • Use push-sticks or push blocks to feed the workpiece past the saw blade;...

  • Page 11: Before You Start

    Before you start ENB539TAS by Energer Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage.
  • Page 12 Before you start ENB539TAS by Energer Assembling the saw blade(Fig. 1-2) Caution! Pull out the power plug. > Turn the bevel locking screw (8) and set the saw blade to 0° and lock the bevel locking screw (8). > Unscrew the fixing screws (19) and remove bottom guard (6).
  • Page 13 Before you start ENB539TAS by Energer Assembling the riving knife(Fig. 3-5) > Take out the table insert (4) by removing the two cross-head screws (21). > Slacken the two screws (22), ensuring the plate under the table is not removed, then insert the riving knife slots under the screw heads.
  • Page 14 Before you start ENB539TAS by Energer Assembling the rip fence (Fig. 7-8) > This fence is used for all ripping operations. Never rip freehand without the fence in place and securely locked. > Adjust the rip fence (7) to the desired width from the blade using the scale rules on the table surface for reference.
  • Page 15 Before you start ENB539TAS by Energer Mounting the table saw (Fig. 10-11) The table saw must be properly secured to a sturdy workbench using the two mounting holes (9) on the saw base. > Place the table saw over the workbench table top and mark two locations on top of the workbench by setting the mounting holes at the saw base.

  • Page 16: In More Detail

    ENB539TAS by Energer more detail.. Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity...

  • Page 17: Operation

    Operation ENB539TAS by Energer Intended use This table saw is designated with a rated input of 800 Watts. This product is intended for cutting wood and similar material e.g. MDF and chipboard. This product should not be used on other materials or those harmful to health.
  • Page 18 Operation ENB539TAS by Energer Push stick > Push stick (10) is a device used for safely pushing a work piece through the blade instead of using your hands. They can be made from scrap wood in various sizes and shapes to be used in a specific project.

  • Page 19: Operation

    Operation ENB539TAS by Energer Bevel cross cutting (Fig. 15) > Bevel cross cutting is the same as cross cutting except that the wood is also cut at an angle other than at 90° with the flat side of the wood. Follow the same procedures as you would for cross cutting.

  • Page 20: Care And Maintenance

    Care and maintenance ENB539TAS by Energer Bevel cutting > Bevel ripping is the same as ripping, except that the blade bevel angle is set to an angle other than “0”. > When bevel ripping material 150mm (6”) or narrower use the fence on the right side of the blade only.

  • Page 21: Care And Maintenance

    Care and maintenance ENB539TAS by Energer Saw blade replacement (Fig.18-19) If the saw blade is damaged or deformed, please replace the saw blade. Before replacing the saw blade, you must clean the flanges and use standard saw blade which conform to EN847-1.

  • Page 22: Power Cord

    Care and maintenance ENB539TAS by Energer Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard. UK plug If you need to replace the fitted plug then follow the instructions below.

  • Page 23: Trouble Shooting

    Trouble shooting ENB539TAS by Energer Trouble shooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. Problem Solution Possible cause 1.

  • Page 24: Guarantee

    Guarantee ENB539TAS by Energer Guarantee This ENERGER product carries a guarantee of 12months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically exclude slosses caused due to: >...

  • Page 25: Ec Declaration Of Conformity

    EC declaration of ENB539TAS by Energer conformity Declaration of conformity We, Importer Powersmith Ltd., BA22 8RT Declare that the product: Designation: 800w Table Saw Model: ENB539TAS Complies with the following Directives 2004/108/EC Electromagnetic Compantibility Directive 2006/42/EC Machinery Directive 2006/95/EC Low voltage Directive...
