Summary of Contents for EMTOP SBC8600B

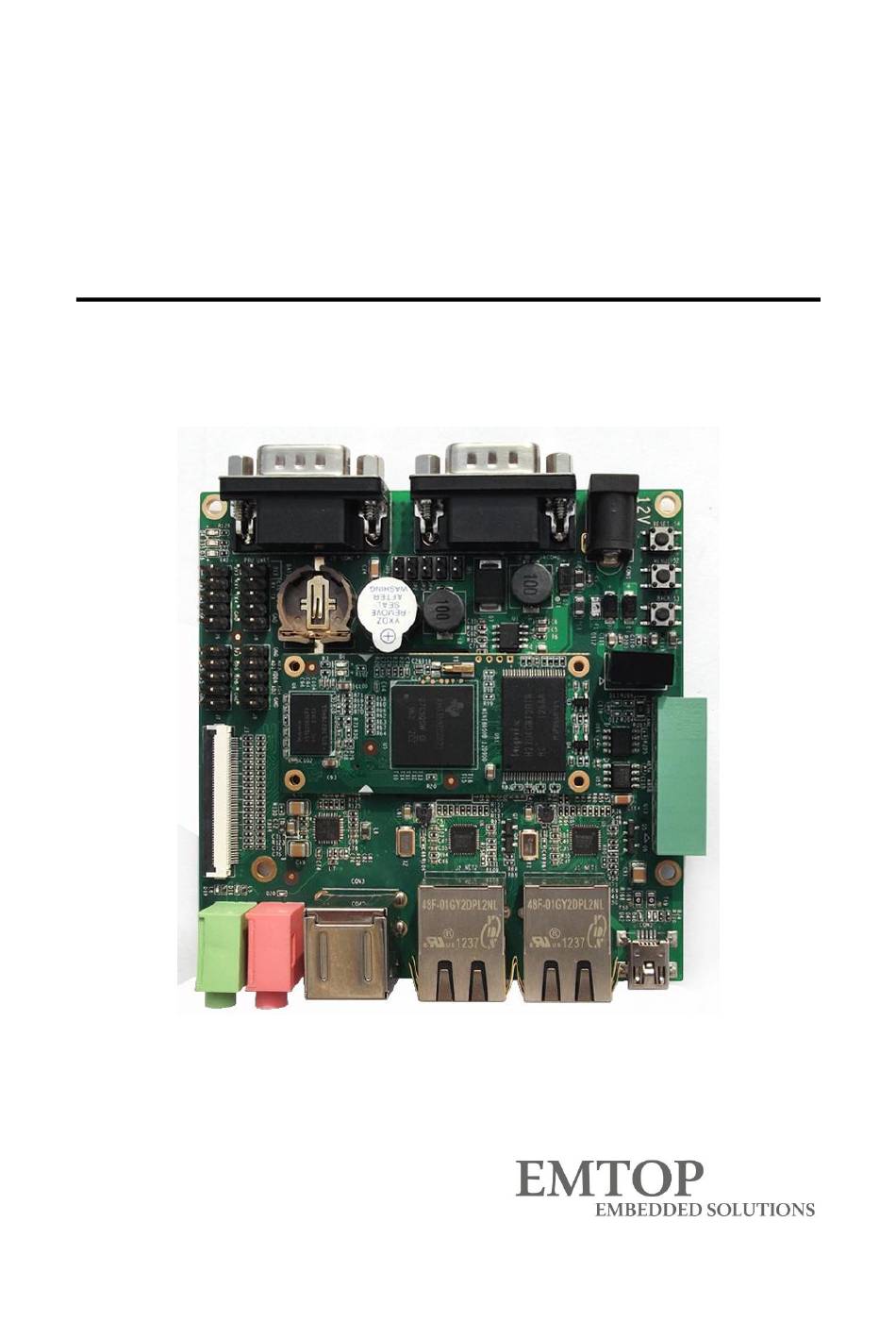

- Page 1 SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com...
-
Page 2: Table Of Contents
WinCE Operating System ....................10 1. Updating TF Card and Booting from It ..............10 2. Updating NAND Flash and Booting from It ............13 Technical Support and Warranty ..................15 Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com... -
Page 3: Product Overview
4.3-inch LCD by default; If another display mode is required, please refer to the Display Mode Configurations in user manual. SBC8600B Rev2.0 has no CR1220 battery installed on board; Please purchase it if necessary. SBC8600B Rev2.0 Single Board Computer preferably boots from NAND Flash ... -
Page 4: Preparations
Emtop Technology Preparations 1. Setting Up HyperTerminal 1） Click Start > Programs > Accessories > Communications > HyperTerminal on your PC’s desktop; Figure 1 Start HyperTerminal Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com... - Page 5 2） Enter a name in the Name field and select an icon below, and then click OK; Figure 2 Enter a Name 3） Select the port to be used and click OK; Figure 3 Select Port Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
- Page 6 Emtop Technology 4） Please configure the port you selected as shown in the following window, and then click OK; Figure 4 Configure Port Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
- Page 7 Emtop Technology 5） HyperTerminal has been set up successfully. Figure 5 HyperTerminal Window Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
-
Page 8: Hardware Connects
Table 1 Connection Details Descriptions Descriptions If you want to boot from TF Connect a LCD card, short the jumper JP5 Connect a Serial Cable Connect a Power Adapter Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com... -
Page 9: Linux Operating System
It is not recommended to use other versions of HP USB Disk Storage Format Tool. HP USB Disk Storage Format Tool will erase the partitions of TF card. Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com... -
Page 10: Updating Nand Flash And Booting From It
2） Copy the files MLO, u-boot.img, uImage and ubi.img from \linux\image in the DVD-ROM to the TF card; 3） Insert the TF card on SBC8600B Rev2.0 and short the jumper JP5 4） Power the board on; when the HyperTerminal window starts countdown in seconds as shown in the following table, press any key on your PC’s keyboard to... - Page 11 The system image has a default setting for 4.3-inch LCD. You can change the settings in UBOOT according to the detailed instructions contained in 3.10 Display Mode Configurations. Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
-
Page 12: Wince Operating System
HP USB Disk Storage Format Tool will erase the partitions of TF card. If partitions need to be retained, please use the format function of Windows system. Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com... - Page 13 2） After formatting is done, copy MLO, EBOOTSD.nb0 and NK.bin from \WINCE700\image of the DVD-ROM to TF card; 3） Insert the TF card on SBC8600B Rev2.0 and short the jumper JP5, and then power it on; When you see information counting down in seconds in the HyperTerminal window, please press Space key on your PC’s keyboard to enter...
- Page 14 [5] DVI 800x600 60Hz(N/A) //For LVDS [6] DVI 800x600 56Hz(N/A) [7] VGA 1024x768 60Hz //For VGA [8] DVI 1280x720 60Hz(N/A) [0] Exit and Continue Selection (actual LCD 480x272 60Hz): 4 Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
-
Page 15: Updating Nand Flash And Booting From It
MLO, EBOOTSD.nb0, EBOOTND.nb0, NK.bin and XLDRNAND.nb0 from \WINCE700\image\ of the DVD-ROM to the TF card; 2） Insert the TF card on SBC8600B Rev2.0 and short the jumper JP5, and then power it on; When you see information counting down in seconds, please press Space key on your PC’s keyboard to enter EBOOT menu. - Page 16 6） Type a under main menu to select display mode and then type 7 and y under main menu to save changes; 7） Remove the TF card and the jump cap from SBC8600B Rev2.0, and then reboot the system; Now it will boot up from NAND flash;...
-
Page 17: Technical Support And Warranty
1） 12-month free warranty on the PCB under normal conditions of use since the sales of the product; 2） The following conditions are not covered by free services; Emtop Technology will Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com... -
Page 18: Contact Information
4） Please contact technical support if there is any repair request. Note: Emtop Technology will not take any responsibility on the products sent back without the permission of the company. Contact Information Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide... - Page 19 Technical Support Tel: +86-755-25635626-872/875/897 Email: support@emtop-tech.com Sales Information Tel: +86-755-25635626-863/865/866/867/868 Fax: +86-755-25616057 Email: sales@emtop-tech.com Company Information Website: https://www.emtop-tech.com Address: RM402,403,405 Dongmei Building, Minde Road, Minzhi Street, Longhua District,Shenzhen,China,518100 Copyright © 2021 Emtop Technology SBC8600B Rev2.0 Quick Operation Guide www.emtop-tech.com support@emtop-tech.com...
