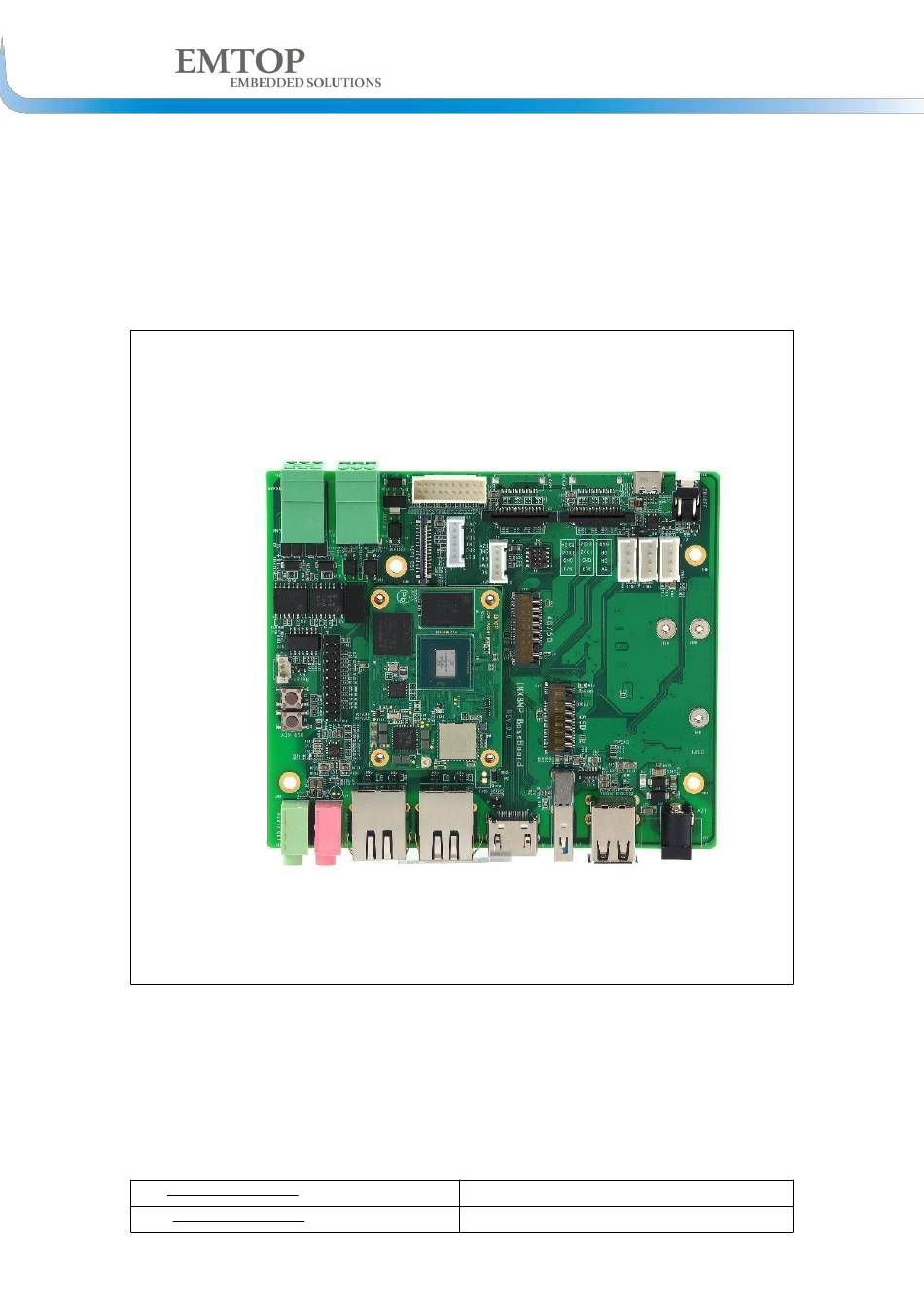

- Page 1 SOM-IMX8MP Hardware User Manual SBC-IMX8MP Hardware User Manual www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
- Page 2 SOM-IMX8MP Hardware User Manual Revision History Date Version Description 2023-01-03 V1.0 Initial Release 2023-07-14 V1.1 Check Errors www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 3: Table Of Contents
4.12 4G/5G ......................22 4.13 NVME ......................23 4.14 2.54mm Extension Interface ................ 24 4.15 USB Extension Interface ................25 4.16 Debug Extension ..................26 4.17 Debug Port ....................27 4.18 Camera CSI0 ....................28 4.19 Camera CSI1 ....................30 www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 4 SOM-IMX8MP Hardware User Manual 4.20 MIPI DSI ....................... 32 4.21 HDMI ......................34 4.22 USB3.0 Host ....................34 4.23 Jtag .......................35 www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 5: Introduction
1 Introduction The IMX8MP BaseBoard is a baseboard that design by Emtop tech for the SOM board SOM-IMX8MP. It features a lot of rich and flexible interfaces. Can be used for the customers to develop their user programs, verify their expected functions and shorten product development cycles. -
Page 6: Imx8Mp Baseboard
Operating Temperature Industrial Version: -45°C-85°C Power Single +5V Power supply input. 2.2 IMX8MP BaseBoard WiFi/BT Combo(on SOM) Connectivity: 2x GbE LAN port Carrier Board Unit 1x RS485 1x CANFD www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 7 1x M2 Key B(USB3.0) 1x HDMI2.0a(1920 x 1080p60) Display: 1x MIPI DSI 1x LVDS(single channel) 2x MIPI CSI Media: Audio IN/Out 12V/2A typical Power supply: 135.3x113mm Mechanical: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 8: Mechanical Dimension
3 Mechanical Dimension www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 9: Interface Details
The recommended power supply is 12V/2A. If some customized features are requested, please contact the sales. 1) Part Reference：J26 2) Not special Pin1 is defined. The center is positive power input, and the negative pole around. 3) Specification for the DC Jack as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 10: Usb 2.0 Host
The audio output can drive a headphone directly and the audio input can receive audio signal from microphone. 1) Part Reference：J25 for audio in, J24 for audio out. 2) Not special Pin1 is defined. The specification for the audio plug show as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 11: 10/100/1000M Ethernet
3) Specification for the audio connectors as below: 4.4 10/100/1000M Ethernet The IMX8MP BASEBOARD feature two 10/100/1000M ethernet. These network ports are 10/100/1000M adaptive. 1) Part Reference：J2(ETH0), J3(ETH1). 2) Not special Pin1 is defined. 3) Specification for the RJ45 as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 12: Din/Do
1) Part Reference：J23 2) Not special Pin1 is defined. The pin define for the digital input/output as below: Upper DIN1 DIN2 Bottom DOUT1+ COMMON DOUT2+ 3) Specification for the connector for the digital input/output as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 13: Can/Rs485
1) Part Reference：J21 2) Not special Pin1 is defined. The pin define for the CAN/RS485 as below: Upper CAN_L CAN_H CAN_GND Bottom RS485_A RS485_B RS485_GND 3) Specification for the connector for the digital input/output as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 14: Lvds
The IMX8MP BASEBOARD order a 2.00mm pitch connector to feature the one display interface. It is a single channel LVDS output port. 1) Part Reference：J10 2) The 2.00mm pitch connector has an special Pin1 defined that shows below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 15 LVDS0_CLK_N Differential signal negative LVDS0_CLK_P Differential signal positive Ground LVDS0_TX3_N Differential signal negative LVDS0_TX3_P Differential signal positive SEL1 10K pull down default SEL2 10K pull down default 4) Specification for the 20pin 2.00mm connector as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 16: Touch
2) The 2.00mm pitch connector has an special Pin1 defined that shows below. The pin defines for the touch Connector as below: Num. Pin Name Level Description 3.3V power output CTP_SCL I2C2 clock CTP_SDA Ground I2C2 data CTP_INT Ground Interrupt for touch Ground CTP_RST Reset output for touch www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 17: Backlight
The IMX8MP BASEBOARD order a 2.00mm pitch connector to feature the backlight interface for LVDS. It can be used for other purpose if not require a backlight. 1) Part Reference：J7 2) The 2.00mm pitch connector has an special Pin1 defined that shows below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 18 The pin defines for the touch Connector as below: Num. Pin Name Level Description 12V power output Ground 3.3V Blacklight enable 3.3V PWM output for backlight No connection 4) Specification for the 20pin 2.00mm connector as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 19: Power Button
Short press the user button will generate an interrupt and long press the user button will turn down the system. 1) Part Reference：SW1 2) Not special Pin1 is defined. 3) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 20: Tf Card
The IMX8MP BASEBOARD has a TF Card connector to install a media card. This media card can be used for data storage or for firmware. 1) Part Reference：J18. 2) Not special Pin1 is defined. 3) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 21 support@emtop-tech.com...
- Page 22 4G or 5G module. 4G module is 2242 size and 5G module is 3052. 1) Part Reference：J13 for 4G module and J14 for SIM Card. 2) Not special Pin1 is defined. 3) Specification for the MiniPCIe as below: 4) Specification for the 4G SIM card as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 23: Nvme
The IMX8MP BASEBOARD has a MiniPCIe that is used for NVME SSD storage. The port can offer the PCIe 3.0 one lane and can install the 2242 SSD expansion. 1) Part Reference：J15. 2) Not special Pin1 is defined. 3) Specification for the MiniPCIe as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 24: Mm Extension Interface
J15 of J3 ECSPI2_MOSI 3.3V General Purpose Input Output SAI2_MCLK 3.3V General Purpose Input Output General Purpose Input Output, The level of this pin is related to the SAI1_RXC input of pin J15 of J3 www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 25: Usb Extension Interface
USB expansion. This connector is routed to a 7 ports USB HUB FE2.1 to provide standard USB2. 0 signal. 1) Part Reference：CON2. 2) Pin1 position shows as below. 3) The defines for the pin header as below table. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 26: Debug Extension
UART4. The UART2 is debug port for A53 and the UART4 is debug port for M7 default. These two headers are connected to the USB to UART chip also. 1) Part Reference：CON4, CON5. 2) Pin1 position shows as below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 27: Debug Port
The IMX8MP BASEBOARD has a USB type C port for debug, The USB port hire a USB to UART chip connect to UART2 and UART4 of the SOM board for debug purpose. 1) Part Reference：J20. 2) Not special Pin1 is defined. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 28: Camera Csi0
Camera module. The PHY for this camera is CSI0 and run in 2 lane mode. The port shares the same Power EN controller with CSI1. 1) Part Reference：J11. 2) Please note that although these is 30 pins in the connector but these is only 15 contactor. Pin1 position shows as below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 29 CAM0_C_N Differential signal negative CAM0_C_P Differential signal positive Ground CAM_PWREN 3.3V Camera Power Enable No connection I2C5_SCL 3.3V I2C5 clock I2C5_SDA 3.3V I2C5 data CAM0_3V3 3.3V power output 4) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 30: Camera Csi1
Camera module. The PHY for this camera is CSI1 and run in 2 lane mode. The port shares the same Power EN controller with CSI0. 1) Part Reference：J12. 2) Please note that although these is 30 pins in the connector but these is only 15 contactor. Pin1 position shows as below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 31 CAM1_C_N Differential signal negative CAM1_C_P Differential signal positive Ground CAM_PWREN 3.3V Camera Power Enable No connection I2C3_SCL 3.3V I2C3 clock I2C3_SDA 3.3V I2C3 data CAM0_3V3 3.3V power output 4) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 32: Mipi Dsi
The IMX8MP BASEBOARD has a 30 pin 0.5mm pitch FPC connector for MIPI panel. The pin definition for this connector also includes the I2C and USB port for touch and PWM for blacklight. 1) Part Reference：J4. 2) Pin1 position shows as below. www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 33 Differential signal negative DSI1_D2_P Differential signal positive Ground DSI1_D3_N Differential signal negative DSI1_D3_P Differential signal positive Ground CTP_RST Touch Panel reset output CTP_INT Touch panel interrupt input I2C2_SDA I2C2 data I2C2_SCL I2C2 clock DSI_BK_EN Backlight enable www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
-
Page 34: Hdmi
3) Specification for the user button as below: 4.22 USB3.0 Host The IMX8MP BASEBOARD has a USB3.0 type A connector for USB host. 1) Part Reference：J16. 2) Not special Pin1 is defined. 3) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... -
Page 35: Jtag
The IMX8MP BASEBOARD has a 10pin pin header with box to offer Jtag function. 1) Part Reference：J1. 2) Pin1 position shows as below. 3) The defines for the pin header as below table. Pin Num. Pin Name Level Description VDD1V8 1.8V power output www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com... - Page 36 JTAG function TMS pin Ground JTAG_TCK TAG function clock pin Ground JTAG_TDO TAG function TDO pin No connection JTAG_TDI TAG function TDI pin Ground SYS_nRST Reset signal for CPU 4) Specification for the user button as below: www.emtop-tech.com https://github.com/EMTOP-TECH/SOM-IMX8MP sales@emtop-tech.com support@emtop-tech.com...
