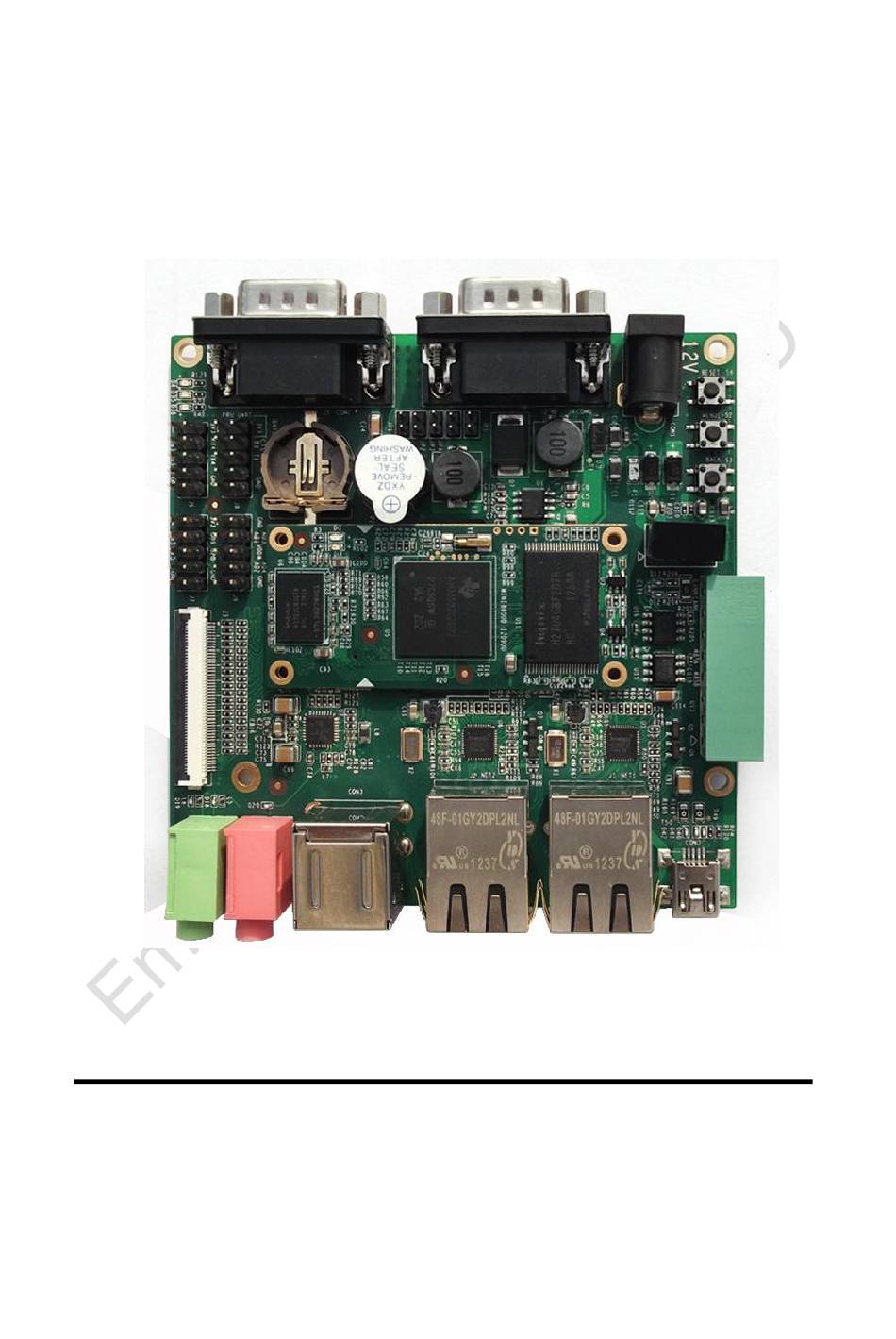

- Page 1 SBC8600B Single Board Computer Quick Operation Manual Version 1.0 – Dec. 12, 2012...
- Page 2 Embest Technology Co., Ltd. Microsoft, MS-DOS, Windows, Windows95, Windows98, Windows2000 and Windows Embedded Compact 7 are trademarks of Microsoft Corporation. Revision History: Version Date Description 2012-12-21 Initial Version Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 3: Table Of Contents
UICK OPERATION OF SYSTEM 3.2.1 Boot-up from TF card ..................16 3.2.2 Boot-up from NAND Flash ................22 3.3 Q ..............22 UICK OPERATION OF NDROID SYSTEM TECHNICAL SUPPORT AND WARRANTY ..............25 Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual... -
Page 4: Overview
Chapter 1 Overview The primary purpose of this document is to give users an overview of the software and hardware development environment of SBC8600B, and help user to start their development or to learn faster. This document will cover the following points: ... - Page 5 Learning about hardware DVD -> \HW design\schematic SBC8600B principle of SBC8600B actual dimensions Dimensions of User Manual->Appendix-> Appendix SBC8600B used to help make SBC8600B a mold For software development: Table 3 Quick Operation Manual->2.1 Connecting external devices , Establishment hardware...
- Page 6 Establish DEMO DEMO system demonstration demonstration system demonstration 3.8.3.2 TISDK System (Android, TISDK) Demonstration For learning: It is recommended reading each part of this Manual from the beginning to the end. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 7: Development Suite
Development Kit of SBC8600B Software （Linux/WinCE/Android/Starterware） 1.3 Factory default configuration Configuration of hardware SBC8600B default factory configuration: no RTC cell, no TF card. b) Factory-setting parameters of software SBC8600B Single Board Computer preferably boots from NAND Flash by default, if you want to boot from TF Card, you need to short the jumper JP5 on the board. -
Page 8: Quick Establishment Of Development Environment
Use serial cable to connect the debugger serial port and PC serial port of SBC8600B. If you want to boot from TF card, you need to short the jumper JP5 Connect the 12V power adapter to the evaluation board Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual... -
Page 9: Establishment Of Software Environment
Embest Technology Co., Ltd 2.2 Establishment of software environment 2.2.1 Preparation of Windows XP system environment Before powering up SBC8600B, a HyperTerminal needs to be set up on PC through the following steps: desktop Windows click Start->Programs->Accessories->Communication->HyperTerminal, shown below; Figure 1-2 Copyright ©... - Page 10 Embest Technology Co., Ltd Establish a new HyperTerminal connection: Figure 1-3 Select the specific serial port from the list according to your PC's COM port configuration: Figure 1-4 Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 11 Embest Technology Co., Ltd Configure parameters for serial port connection as follows: Figure 1-5 Now we have successfully established a Hyper Terminal connection with PC serial port: Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 12: Notes For Operating System Image File
User Manual section 3.8.1 Selecting Display Mode. Now we successfully established software and hardware environment for the system. We can turn on the power switch to start the development on SBC8600B. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual... -
Page 13: Quick Switching And Use Of Operating Systems
Chapter 3 Quick Switching and Use of Operating Systems SBC8600B supports three operating systems: Linux 3.2.0, WinCE6.0 and Android. This chapter mainly introduces how to switch between different operating systems and how to boot up from TF card and NAND Flash. - Page 14 Copy all files under the directory linux\image to the TF card, insert it on the board, and then power up the board. The information on serial interface will be shown as below: Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 15 ** Unable to read "uEnv.txt" from mmc 0:1 ** reading uImage 3224184 bytes read reading ramdisk.gz 12514633 bytes read ## Booting kernel from Legacy Image at 80007fc0 ... Image Name: Linux-3.2.0 Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 16 Sending discover... udhcpc: sendto: Network is down Sending discover... udhcpc: sendto: Network is down No lease, failing done. Tue Jan 27 08:47:00 UTC 2009 INIT: Entering runlevel: 5 Starting syslogd/klogd: done .-------. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 17: Boot-Up From Nand Flash
"Hit any key to stop autoboot" appears: Note: You may short the jumper JP5 on the board to allow SBC8600B boot up from TF card and enter uboot to write the image in NAND Flash, and then disconnect JP5 to allow system boot up from NAND Flash. - Page 18 NAND write: device 0 offset 0x0, size 0x8cef 36079 bytes written: OK reading u-boot.img 234896 bytes read HW ECC BCH8 Selected NAND write: device 0 offset 0x80000, size 0x39590 234896 bytes written: OK Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 19: Quick Operation Of Wince System
Insert TF card into a card reader and then insert the reader into PC. b) Open the HP USB Disk Storage Format Tool, the following window will appears. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual... - Page 20 HP USB Disk Storage Format Tool will erase partitions of TF card. If you want to maintain the partitions, please use the formatting software of Windows. Copy runtime image Copy MLO, EBOOTSD.nb0 and NK.bin image files under CD\WINCE700\image to the TF card; System Boot-up Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 21 BOOT_CFG_SIGNATURE is different, read -1, expect 1111705159 WARN: Boot config wasn't found, using defaults INFO: SW3 boot setting: 0x04 IsValidMBR: MBR sector = 0x480 (valid MBR) OpenPartition: Partition Exists=0x1 for part 0x20. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 22 [0] Exit and Continue Selection (actual Internal EMAC): 2 Boot device set to NK from SDCard FILE Type [a] to enter “Select Display Resolution” menu and select LCD\LVDS as the output Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 23 Main Menu -------------------------------------------------------------------------------- [1] Show Current Settings [2] Select Boot Device [3] Select KITL (Debug) Device [4] Network Settings [5] SDCard Settings [6] Set Device ID [7] Save Settings [8] Flash Management Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 24 Windows CE Kernel for ARM (Thumb Enabled) CPU CP15 Control Register = 0xc5387f CPU CP15 Auxiliary Control Register = 0x42 I2C EEPROM returned wrong magic value 0xffffffff +OALTimerInit(1, 24000, 200) --- High Performance Frequecy is 24 MHz--- Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 25: Boot-Up From Nand Flash
Remove TF card and reboot the system. The system will boot from NAND Flash. 3.3 Quick operation of Android system SBC8600B provides Android system demonstration, please follow the steps listed below: 1） Copy all files under the directory \linux\demo\Android\image of the DVD-ROM to a TF card;... - Page 26 NAND write: device 0 offset 0x80000, size 0x3947c 234620 bytes written: OK reading uImage 2719416 bytes read HW ECC BCH8 Selected NAND write: device 0 offset 0x280000, size 0x297eb8 2719416 bytes written: OK reading ubi.img 72744960 bytes read Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 27 4） U-boot configuration The system image has a default setting for 4.3-inch LCD. You can change the settings in UBOOT according to the detailed instructions contained in 3.8.1 Selecting Display Mode. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
-
Page 28: Technical Support And Warranty
Customers encounter issues caused by any unauthorized alter to the embedded operating system; Customers encounter issues related to their own applications; Customers encounter issues caused by any unauthorized alter to the source code provided by Embest Technology; Warranty Conditions Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual... - Page 29 Embest Technology should be paid by customers; the freight from Embest to customers should be paid by us. The freight in any direction occurs after warranty period should be paid by customers. Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
- Page 30 Embest Technology will not take any responsibility on the products sent back without the permission of the company. Contact Information Hotline: +86-755-25503401 Fax: +86-755-25616057 Pre-sales: sales@timll.com After-sales: support@timll.com Website: http://www.timll.com Address: Rm 405, Luohu Technology Building, No. 85, Taining Rd., Luohu District, Shenzhen Copyright © 2012 Embest Technology SBC8600B Quick Operation Manual...
