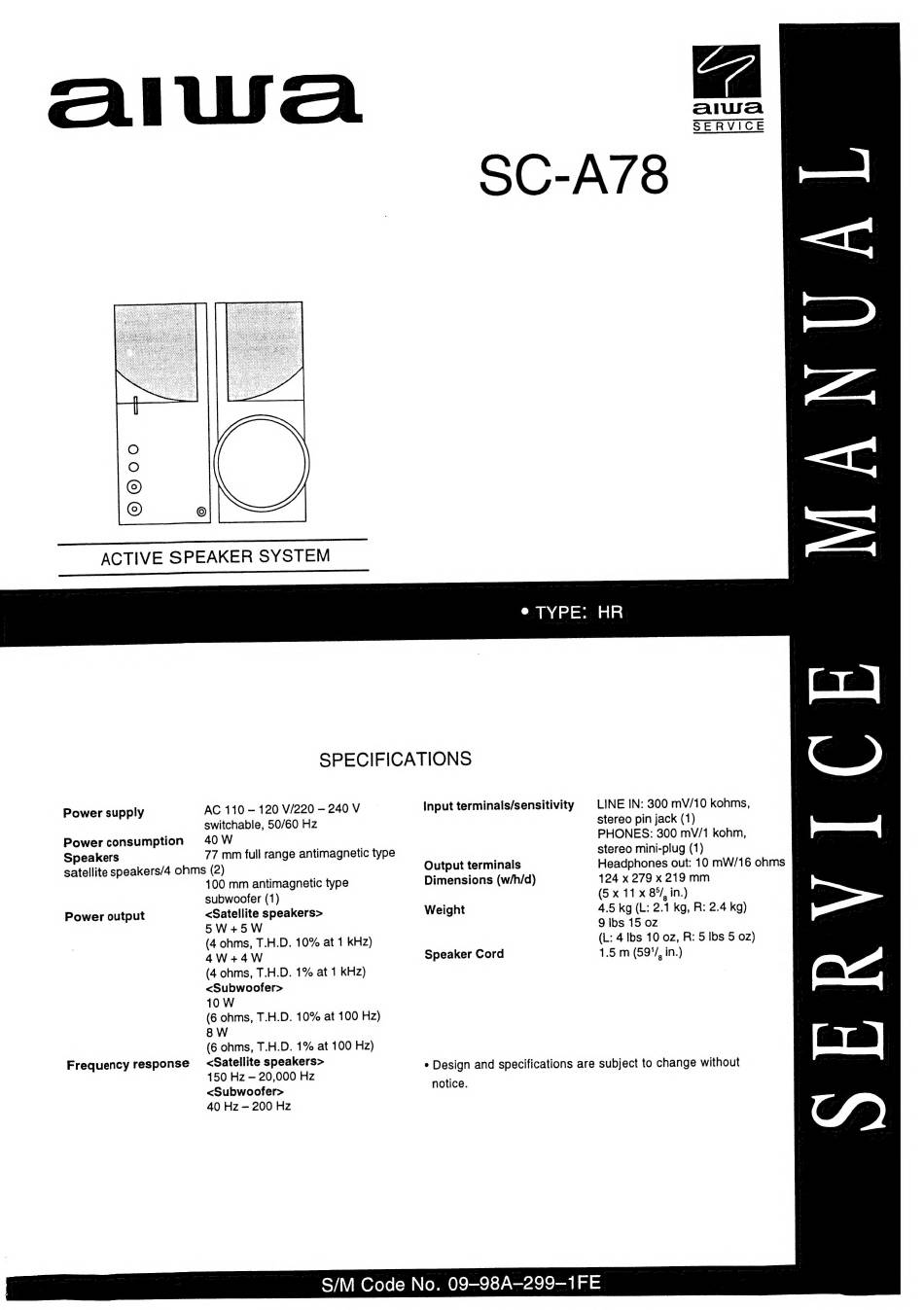

Aiwa SC-A78 Service Manual

e TYPE: HR
SPECIFICATIONS
Power supply
AC 110 — 120 V/220 —- 240 V
Input terminals/sensitivity
LINE IN: 300 mV/10 kohms,
switchable, 50/60 Hz
stereo pin jack (1)
Powerconsumption
40W
PHONES: 300 mV/1 kohm,
Speakers
77 mm full range antimagnetic type
stereo mini-plug (1)
satellite speakers/4 ohms (2)
Output terminals
Headphones out: 10 mW/16 ohms
100 mm antimagnetic type
Dimensions (w/h/d)
124 x 279 x 219 mm
subwoofer (1)
(5 x 11 x 8°/, in.)
Power output
<Satellite speakers>
Weight
4.5 kg (L: 2.1 kg, R: 2.4 kg)
5W+5W
9 Ibs 15 oz
(4 ohms, T.H.D. 10% at 1 kHz)
(L: 4 lbs 10 0z, R: 5 Ibs 5 oz)
4W+4W
Speaker Cord
1.5 m (597/, in.)
(4 ohms, T.H.D. 1% at 1 kHz)
<Subwoofer>
10W
(6 ohms, T.H.D. 10% at 100 Hz)
8W
(6 ohms, T.H.D. 1% at 100 Hz)
Frequency response
<Satellite speakers>
150 Hz — 20,000 Hz
<Subwoofer>
40 Hz — 200 Hz
