Bionaire BFH3520 Instruction Manual

BFH3520IUK06EM2 V new.qxd 6/16/06 15:13 Page 1
Setting the Off Timer: on or off in 1 hour increments, up to 16 hours.
For more information see Using Programmable
1. Select the Mode and/or temperature you wish
the heater to run in. Timer instructions above.
2. While the heater is running, press and hold
AUTO SAFETY SHUT-OFF
the up (+) and down (-) buttons simultaneously.
This heater is equipped with a technologically
3. By pressing the up (+) and down (-) buttons,
advanced, safety system that requires the user
program the heater to turn off in up to 16 hours
to reset the heater if there is a potential overheat
from the current time, in increments of 1 hour.
situation. When a potential overheat temperature
4. After setting the timer, the LCD display will
is reached, the system will automatically shut
return to show the current room temperature.
the heater off. It can only resume operation
An LED will illuminate to show that the timer is
when the user resets the unit.
activated.
To reset the heater
5. After the predetermined length of time has
passed, the heater will automatically shut off. 1. Press the MODE ( ) button.
2. Unplug the heater and wait for 30 minutes for
Setting the On Timer:
the unit to cool down.
1. While the heater is off, press and hold the up
3. After the 30 minutes, plug the unit in again
(+) and down (-) buttons simultaneously.
and operate normally.
2. By pressing the up (+) and down (-) buttons,
Tip Over Protection
program the heater to turn on up to 16 hours in
advance of current time, in increments of 1 hour. When the unit is accidentally knocked over, it will
3. After the preset length time of time has passed, instantly shut off. To reset, simply place the
heater in an upright position.
the heater will automatically turn on to auto mode
HI power at 24°C for a preset time of 2 hours. Safety Back-Up Fuse
OSCILLATION INSTRUCTIONS In the unlikely case the heater does not respond
to an overheat situation, the safety back-up fuse
Press ( ) button J to start and ( ) button J
will engage. In this case, the heater will not
again to stop oscillation.
reset. Please contact your local service number
for advice.
REMOTE CONTROL INSTRUCTIONS
Before operation, insert 2 "AAA" batteries (not
PLEASE READ AND SAVE THESE
included) into the back of the remote control. Remove
IMPORTANT INSTRUCTIONS
batteries before discarding the remote control.
When using electrical appliances, basic safety
• Do not mix old and new batteries.
precautions should always be taken including
• Do not mix alkaline, standard (carbon-zinc), or
the following:
rechargeable (nickel-cadmium) batteries.
1. Before connecting the heater, check that the
The remote control for this unit has the capability
voltage indicated on the rating plate
of operating all control panel functions (see Fig.
corresponds to the main voltage in your
3, 4).
home/office.
POWER: To turn the unit on press the
2. WARNING: In order to avoid overheating,
Mode ( ) button. To turn the unit off press the
do not cover the heater ( ).
Mode ( ) button.
3. DO NOT position the heater directly under a
MODES: To scroll through the various modes
power socket.
FA, HI, LO, AH, AL and AF press the Mode ( )
4. Do not use this heater in the immediate
Button until you reach your desired setting.
surroundings of a bath, a shower or a
OSCILLATION: To start oscillation, press the
swimming pool.
Oscillation ( ) Button once. To stop oscillation
5. If the supply cord or plug is damaged, it must
press the button again.
be replaced by the manufacturer or its
TEMPERATURE: The temperature can be
service agent or similarly qualified person in
adjusted only when the unit is set on the Auto
order to avoid hazard. The heater contains
Mode Hi (AH) and Auto Mode Lo (AL).To
no user serviceable parts. Should the
increase the temperature setting, press the (+)
product suffer damage or breakdown, it must
button. To decrease the temperature setting that
be returned to the manufacturer or their
you desire press the (-) button.
service agent.
TIMER: To activate the timer from the remote
6. Under the environment with electrical fast
control, press the Timer Button ( ). From there
transient, the product may malfunction and
you can press the (+) or (-) button, which will
require user to reset the product.
give you the ability to program the heater to turn
7. Do not use this heater with a programmer, NOTE: If the terminals in the plug are not
timer or any other device that switches the marked or if you are unsure or in doubt about
heater on automatically, since a fire risk exists if the installation of the
the heater is covered or positioned incorrectly. plug please contact a
qualified electrician.
8. Only touch the heater with dry hands.
If a 13A 3-pin plug is
9. DO NOT position where it can be touched by
fitted, it must be an 13 amp
children, especially the very young.
ASTA approved plug,
10. DO NOT use this heater outdoors.
conforming to
11. Allow a safe area around the heater away
BS1363 standard.
from furniture or other objects; at least 50 cm
Replacement 13A
from the top and sides and 200 cm at the
fuses must be BSI or
front.
ASTA BS1362
12. Do not use this heater when it is lying on its
approved.
side.
GUARANTEE
13. DO NOT use the heater in rooms with
explosive gas (e.g. petrol) or while using PLEASE KEEP YOUR RECEIPT AS THIS WILL
BE REQUIRED FOR ANY CLAIMS UNDER THIS
inflammable glue or solvent (e.g. when
GUARANTEE.
gluing or varnishing parquet floors, PVC etc.)
• This product is guaranteed for 2 years.
14. DO NOT insert any objects into the heater.
• In the unlikely event of breakdown, please take
15. Keep the mains cord at a safe distance from
it back to the place of purchase, with your till
the main body of the heater.
receipt and a copy of this guarantee.
16. If overheating should occur, the built-in
• The rights and benefits under this guarantee
overheating safety device will switch off the
are additional to your statutory rights which
heater.
are not affected by this guarantee.
17. Do not place the cord under a rug.
• The manufacturer undertakes within the
18. The heater is to be installed so that switches
specific period, to repair or replace free of
and other controls cannot be touched by a
charge, any part of the appliance found to be
person in the bath.
defective provided that:
19. Avoid the use of an extension cord because
• We are promptly informed of the defect.
it may cause the heater to overheat.
• The appliance has not been altered in any
For U.K. and Ireland only:
way or subjected to misuse or repair by a
If the plug is not suitable for the socket outlets in person other than a person authorised by
your home, it can be removed and replaced by a the manufacturer.
plug of the correct type. Please refer to
• No rights are given under this guarantee to a
"Installation of a plug" below.
person acquiring the appliance second hand
or for commercial or communal uses.
Installation of a plug
• Any repaired or replaced appliance will be
Applicable to U.K. and Ireland
guaranteed on these terms for the remaining
The wires in the mains lead are coloured as such:
portion of the guarantee.
BROWN - LIVE
THIS PRODUCT IS MANUFACTURED TO
BLUE - NEUTRAL
COMPLY WITH THE E.E.C. DIRECTIVES
Please note that the colour of these mains wires
73/23/EEC, 89/336/EEC AND 98/37/EEC.
may not correspond with the colour markings
that identify the terminals in your plug. Please
proceed as follows:
Waste electrical products should
The BROWN coloured wire must be connected
not be disposed of with
to the terminal, which is marked with the letter
Household waste. Please recycle
"L" or is coloured RED.
where facilities exist. Check on
The BLUE coloured wire must be connected to
the following website for further
the terminal, which is marked with the letter "N"
recycling and WEEE information:
or is coloured BLACK.
www.bionaire.com/europe or
DO NOT CONNECT either of these wires to the
e-mail info-europe@theholmesgroup.com
earth terminal in the plug. The earth terminal plug
is marked with the letter "E", or with the earth
symbol or coloured GREEN and YELLOW.
Holmes Products (Europe) Ltd
1 Francis Grove
London SW19 4DT
England
Fax: +44 (0)20 8947 8272
Email: info-europe@theholmesgroup.com
Website address: www.bionaire.com/europe
UK - Free phone Customer Service Helpline – 0800 052 3615
©2006 JCS/THG, LLC
Bionaire ® , the Bionaire logo TM and AccuTemp Plus TM are trademarks of JCS/THG, LLC.
9100020007277
BFH3520IUK06EM2

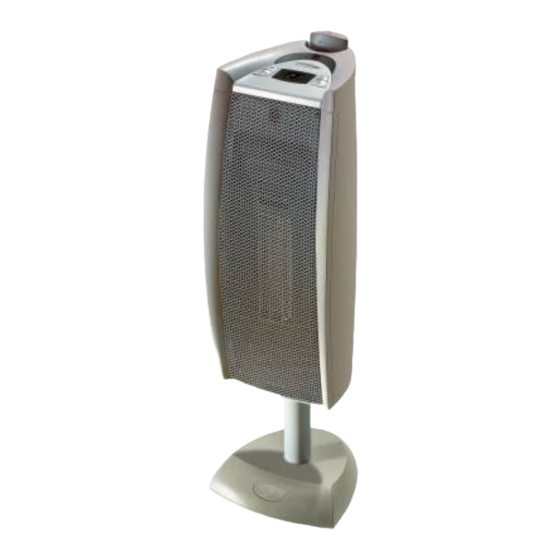

2.4KW digital
® ®
TOWER heater
BFH3520
INSTRUCTION MANUAL
