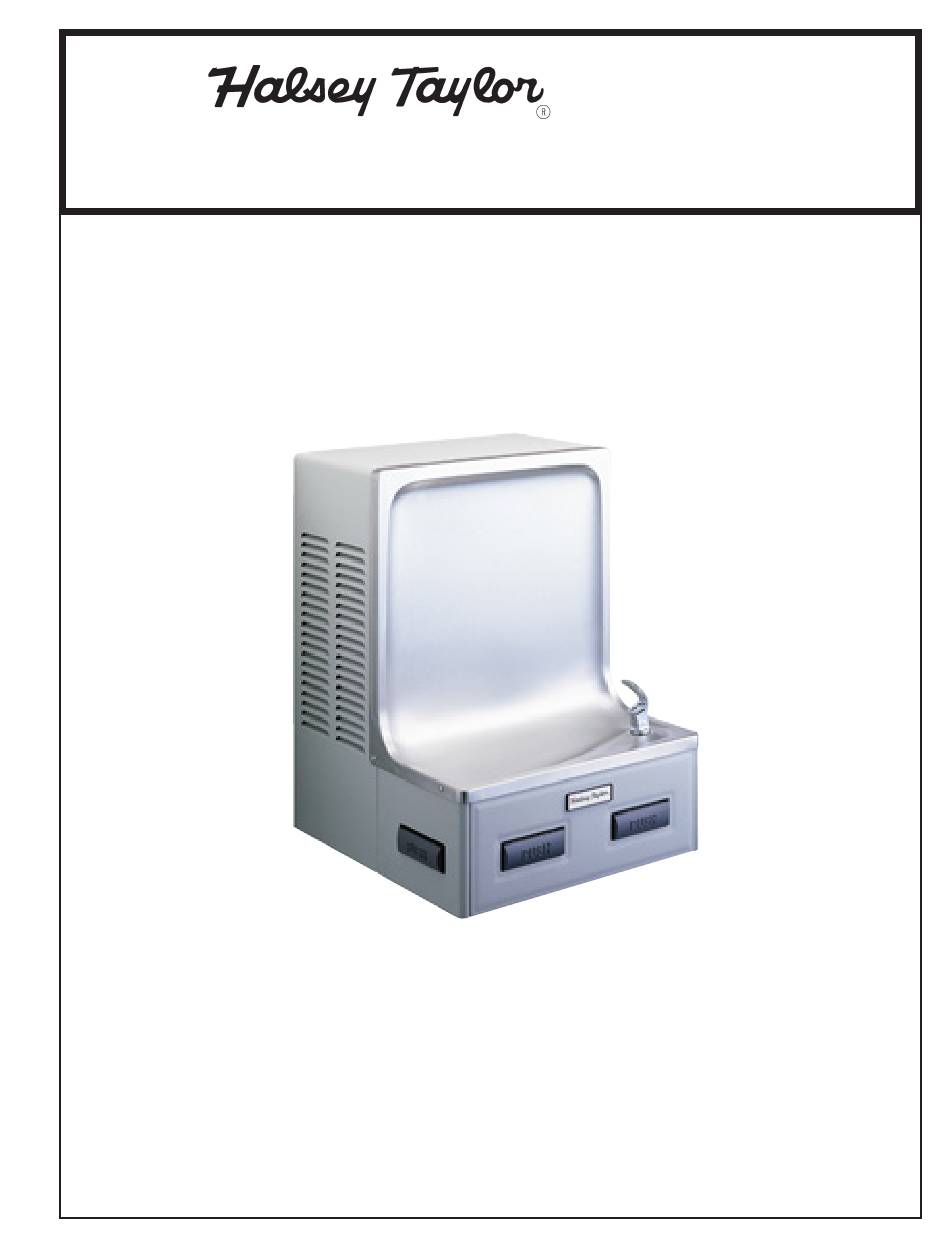

- Page 1 WCFS*G*L*R WC8AFSQ*1G WC8AFSQ*2GJO OWNERS MANUAL Backsplash Model Water Coolers USES HFC-134A REFRIGERANT PAGE 1 98593C (Rev. D - 08/16)
- Page 2 WCFS*G*L*R WC8AFSQ*1G WC8AFSQ*2GJO Note: Danger! Electrical shock hazard. Disconnect power before servicing unit. Uses HFC-134A refrigerant NOTE: Non-refrigerated units do not include all electrical and refrigeration com- ponents shown above. Other components and rough-in are the same as shown. 28,43 See Fig.
- Page 3 WCFS*G*L*R WC8AFSQ*1G WC8AFSQ*2GJO PAGE 3 98593C (Rev. D - 08/16)
- Page 4 WCFS*G*L*R WC8AFSQ*1G WC8AFSQ*2GJO PUSH BAR MECHANISM FIG. 3 Water Valve Mechanism - ADJUSTMENT PROCEDURE: LEGEND - Turn adjustment screw (Item 9) “Counter-Clockwise” until water flow from bubbler starts. A) Note: Water flow direction - Turn adjustment screw “Clockwise” until water flow stops, THEN turn an additional 1/2 turn. B) Adjust this screw to eliminate mechanism “Free Play”...
- Page 5 WCFS*G*L*R WC8AFSQ*1G WC8AFSQ*2GJO 115V PARTS LIST PART NO. DESCRIPTION ITEM NO. 36208C Power Cord 27095C Fan Bracket 98775C Kit - Fan Motor Assy/Blade/Shroud/Nut/Screws 27093C Angle - Bracket Corner 27094C Bracket - Front Support 28797C Bracket - Basin Mounting 27097C Frame - Back/Bottom 70142C Clip (Front and Rear Panels) 98533C...
