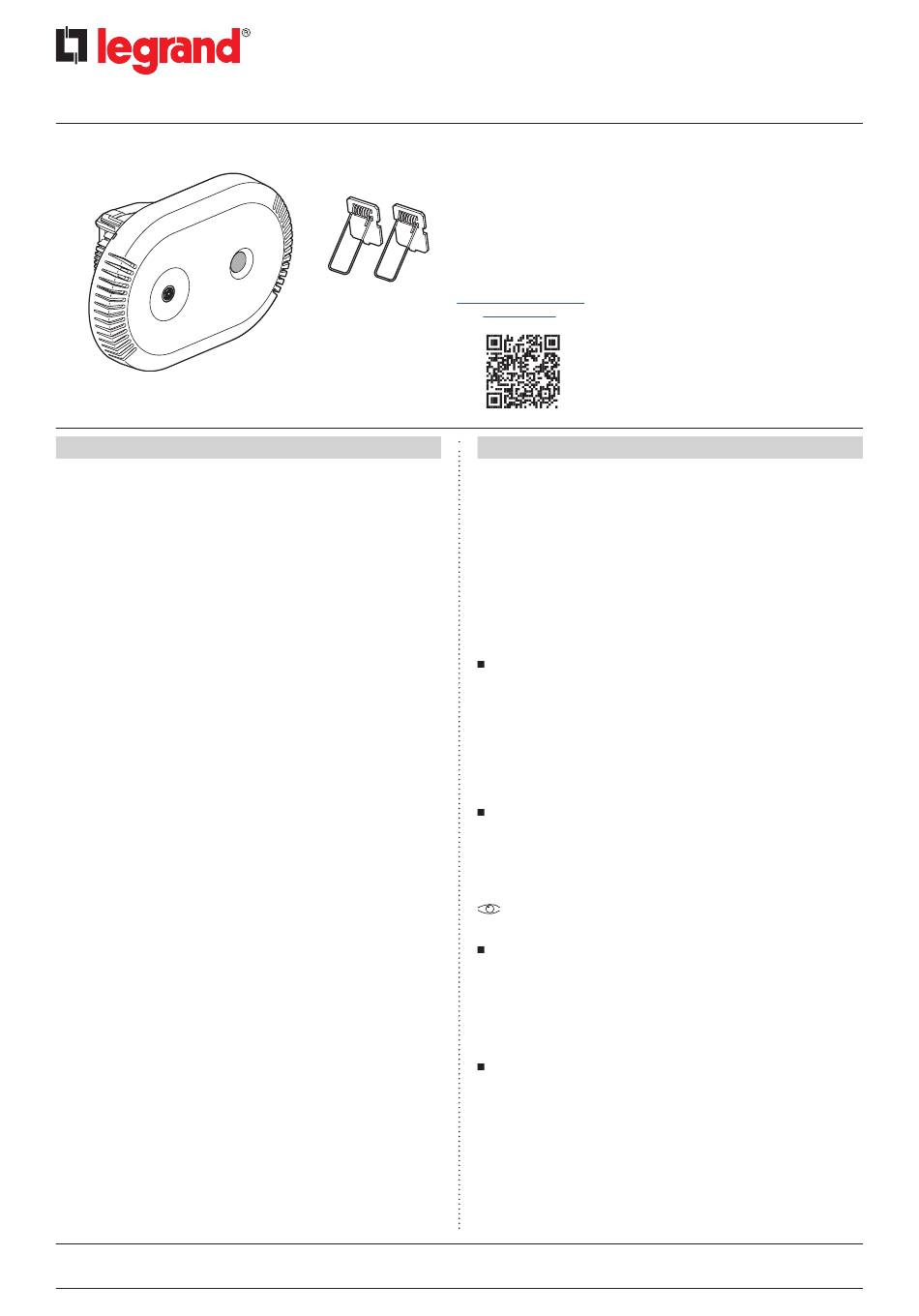

LEGRAND Light Up 048572 Manual

Light Up DALI multisensor advanced detector
1. USE
The "DALI multisensor advanced detector" is a people-counting sensor
dedicated to lighting control and building management applications.
In addition to the people-counting module for measuring the building
use, it has an environmental sensor module.
It has the following features:
- 1 auxiliary input for controlling lighting by means of a push-button
connected to the phase.
- 1 thermal image sensor and its lens in order to measure the number
of people per zone and presence detection.
- 1 daylight sensor measures natural and artificial light in order to
control lighting according to the daylight setpoint.
- 1 temperature sensor which can be used to measure the room
temperature in degrees Celsius.
- 1 relative humidity sensor which measures the current relative
humidity in the room as a percentage.
- 1 sound level sensor which measures the ambient noise level in dB
SPL.
- 1 tVOC sensor which estimates the indoor air quality in the room. It
measures the total volatile compounds in ppb, provides an air quality
index such as the UBA index and estimates the CO2 level in ppm called
"eCO2".
- 1 DALI output for supplying the bus and controlling diffuse lighting.
- 1 relay output mainly dedicated to powering DALI ECGs.
- 1 Bluetooth 5.0 node for:
 commissioning the product - using the "CLOSE UP" mobile app
- 1 Radio node at frequency 2.4 GHz (16 channels) used for:
 creating a radio network, for managing 1 connected power outlet
and 1 wireless batteryless switch and can be used to add a motion
sensor as a slave to extend the coverage.
Updating the product using the "CLOSE UP" app available for IOS and
Android.
Technical data sheet: S00120135EN-3
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex - France
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrandgroup.com
Updated: 21/11/2024
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . . .1
3. Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Simplified EU declaration of conformity. . .2
6. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
7. Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
8. Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
9. Detection zone . . . . . . . . . . . . . . . . . . . . . . . . . .7
10. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Access to the full LIGHT UP
11. First switch-on . . . . . . . . . . . . . . . . . . . . . . . . .8
documentation
12. Settings - Default setup . . . . . . . . . . . . . . . . .9
13. LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
14. Using "CLOSE UP" . . . . . . . . . . . . . . . . . . . . . 11
15. Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
16. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
18. Surface mounting. . . . . . . . . . . . . . . . . . . . . 17
2. TECHNICAL CHARACTERISTICS
• Power supply: 230 V~
• Frequency: 50-60 Hz
• Terminal capacity: 2 x 1.5 mm
• Standby consumption: 2.7 W
• Flush-mounting diameter: 68 mm
• Weight of product only: 281 g
• Weight of packaged product: 347 g
• Impact resistance: IK04
• Penetration by solid and liquid matter: IP20
• Usage temperature: +5°C to +30°C
• Storage temperature: -20°C to +70°C
• Bluetooth 5.0: from BLE 4.2
2.1 Thermal image sensor:
• 160° field of vision
• Coverage: 8 m x 8 m
• Installation height: 2.5 m (possible up to 4 m)
• Management of 1 to 6 zones of interest
• Management of 1 to 6 exclusion zones
• Counting up to 40 people
• Resolution: 1
• Availability of data once commissioned: up to 5 min
2.2 Daylight sensor
Measures natural and artificial light in order to control lighting
according to the daylight setpoint.
Range: 5 1275 lux

It is possible to disable daylight measurement with this setpoint value:
1275 lux.
Has the light regulation function. The value "0" can be used to save
the ambient light level in the room as a daylight setpoint.
2.3 Humidity sensor:
• Measures the relative humidity in the zone as a percentage
• Measurement range: 20% to 80%
• Drift: < 0.25%/year
• Accuracy: 5%
• Availability of data once commissioned: 1 hour
• Humidity offset: -20% to +20% (default: 0)
2.4 Temperature sensor:
• Measures the ambient temperature in ° Celsius
• Measurement range: 0° to 50°C
• Resolution: 0.1°C
• Drift: < 0.02°C/year
• Availability of data once commissioned: 1 hour
• Temperature offset: -20°C to +20°C (default: 0)
Cat. No(s): 0 485 72
PAGE
or 1 x 2.5 mm
2 2
Created: 24/01/2024
1/17
