LEGRAND WattStopper LMUC-100-2 Quick Start Manual

THIS UNIT IS PRE-SET FOR PLUG n' GO™
OPERATION, ADJUSTMENT IS OPTIONAL.
For full operational details, adjustment and more
features of the product, see the DLM System
Installation Guide supplied with the LMRC-102 and
www.wattstopper.com
also available at
INSTALLATION SHALL BE
IN ACCORDANCE WITH ALL
APPLICABLE REGULATIONS,
LOCAL AND NEC CODES.
Intended for Listed Class
2 DLM Devices.
For Class 2 DLM devices -
To be connected to a Class
2 power source only.
SENSOR PLACEMENT (10' MAX. HEIGHT)
31.6'
9.63m

COVERAGE PATTERN

The LMUC-100-2 provides a 360° coverage pattern. The
coverage shown represents walking motion at a mounting
height of 8 to 10 feet.

CONNECTIVITY

The illustrations below show examples of free-topology wiring. The LMUC-100-2
communicates to all other Digital Lighting Management devices connected to the low
voltage DLM Local Network, regardless of their position on the DLM Local Network.
Corner Mount Ceiling Mount
Sensor Sensor
DLM Local Network
Switch Switch
Daylight Sensor
For Class 2 Device Wiring Only –
Do Not Reclassify and Install as
Class 1, or Power and Lighting
Wiring.
Wire connections shall be rated
suitable for the wire size (lead
and building wiring) employed.
31.6'
9.63m
max.
Sensor
Line
Voltage
Low Voltage
LMRJ Cables
Line/Hot Neutral
Black wire White wire
LMRC
102
Room
Controller
Red wire
to Load A (1)
J-Boxes
Voltage: ............................................................................... 24VDC
Current Consumption: ......................................................... 20mA
Power Supply: ............. Watt Stopper/Legrand Room Controllers
Connection to the DLM Local Network ...................2 RJ-45 ports
DLM Local Network Characteristics:
Provides low voltage power over Cat 5e cable (LMRJ).
Supports up to 24 communicating devices, including 4
LMRC-10x or LMPL-101 max per each DLM Local Network.
Free topology up to 1,000ft of low voltage cable.
Environment ................................................. For Indoor Use Only
Operating Temperature ....................32° to 131°F (0° to 55°C)
Storage Temperature ...................... 23° to 176°F (-5° to 80°C)
Relative Humidity ...........................5 to 95% (non condensing)
Patent Pending
Sensor
50'
15.24m
Loads
To
Load
1
2
Yellow wire
to Load B (2)

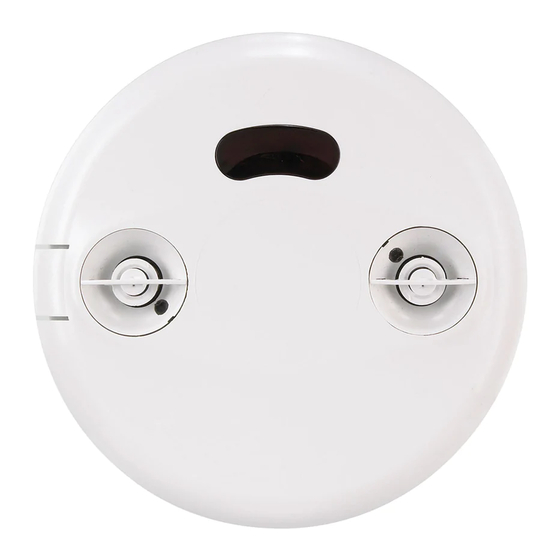

LMUC-100-2
Digital Lighting Management
Ultrasonic Ceiling Mount
Occupancy Sensor
Sensor
30'
9.14m
Mount sensor at least 6' away
from strong air supply
Major Motion
Minor Motion
22.3 ft 31.6 ft
6.79m 9.63m
Room
Controller
J Box
Switch
Ceiling Mount
Occupancy
Sensor
Strong air
supply
6'
