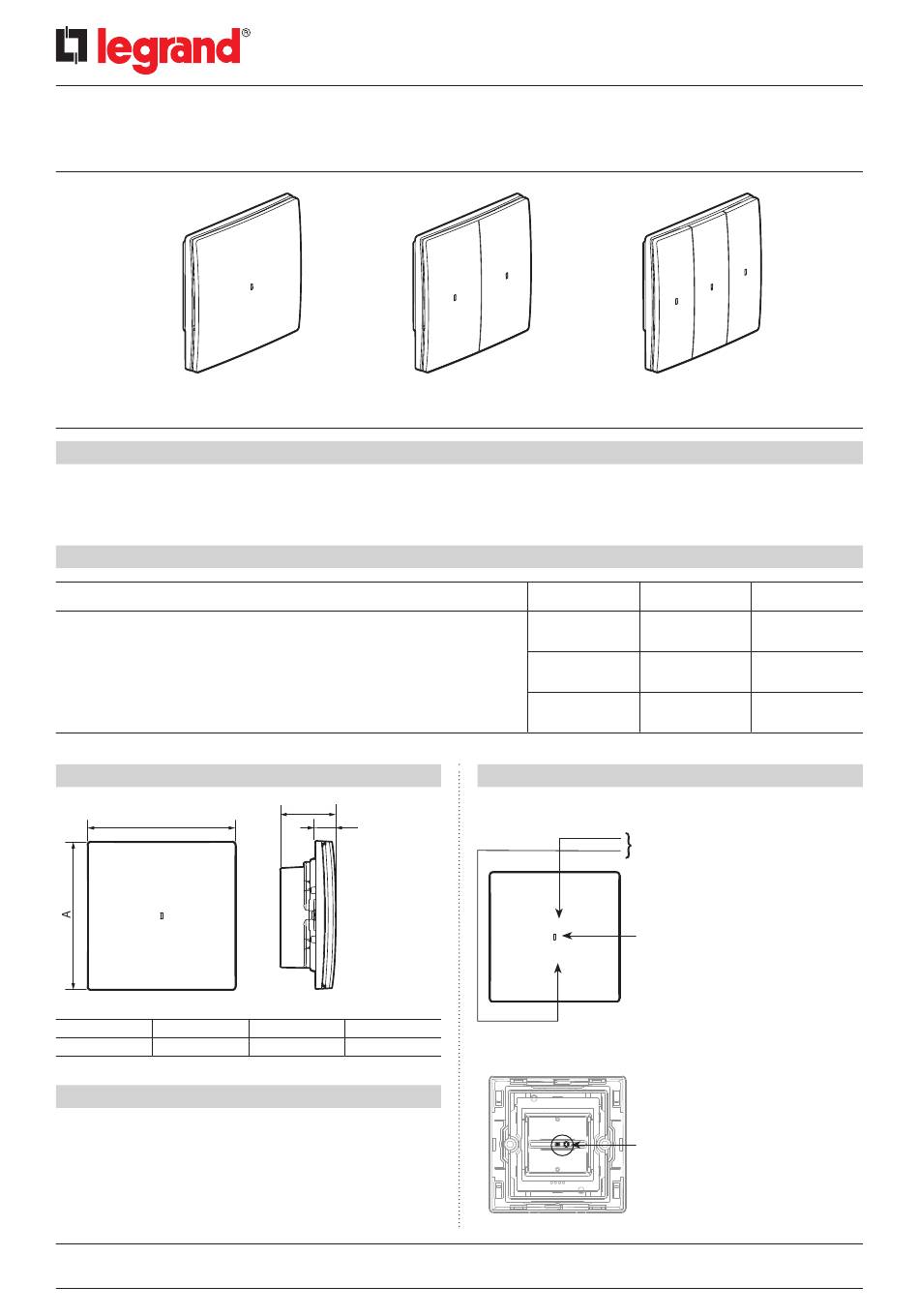

Mallia Senses with Netatmo
TM
Connected switches with neutral
2 815 02DS/MB/MW
1. USE
For local or remote control of lighting devices and other controls.
Can be combined with one or more wireless lighting controls.
Can be installed in place of an existing switch in a flush-mounting box 25 mm deep (minimum).
2. RANGE
Product for use in conjunction with the starter pack.
With LED indicator (locator) and RESET button (hidden) used to return to factory
settings.
Locator and indicator modes can be activated from the Home + Control App.
Complete delivered with protection film and 2 screws M3.5 for BS boxes.
3. DIMENSIONS (mm)
B
A B
86 86
4. CONNECTION
Terminal type : with screws
Terminal capacity: 2 x 1.5 mm - 2 x 2.5 mm
2
Stripping length: 8 mm
Technical data sheet: F03691EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 33(0)5 55 06 87 87 - Fax: 33(0)5 55 06 88 88
www.legrand.com
2 815 04DS/MB/MW
Description
C
D
C D
32.5 12
- 1 x 4 mm
2 2
Updated: 01/09/2023
Cat. No(s): 2 815 02DS/MB/MW - 2 815 04DS/MB/MW
Silver
2 815 02DS
1-gang
2 815 04DS
2-gang
2 815 06DS
3-gang
5. OPERATION
1-gang: 2 815 02DS/MB/MW
ON/OFF
when press
LED indicator:
- useful during installation
- illumination function can be activated
RESET button
used to return to factory settings
2 815 06DS/MB/MW
2 815 06DS/MB/MW
Black White
2 815 02MB 2 815 02MW
1-gang 1-gang
2 815 04MB 2 815 04MW
2-gang 2-gang
2 815 06MB 2 815 06MW
3-gang 3-gang
from the Home + Control app
Created: 11/04/2022
1/2
