Deck mount bath faucet

Advertisement

Quick Links

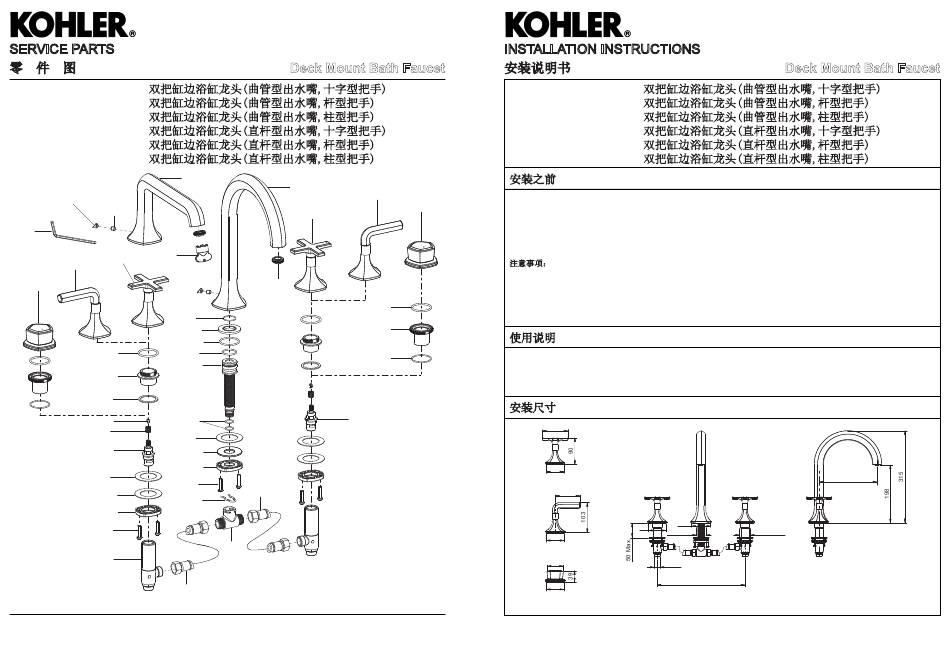

SERVICE PARTS
零 件 图
EX27104T-3
双把缸边浴缸龙头(曲管型出水嘴,十字型把手)
EX27104T-4
双把缸边浴缸龙头(曲管型出水嘴,杆型把手)
EX27104T-9
双把缸边浴缸龙头(曲管型出水嘴,柱型把手)
EX27105T-3
双把缸边浴缸龙头(直杆型出水嘴,十字型把手)
EX27105T-4
双把缸边浴缸龙头(直杆型出水嘴,杆型把手)
EX27105T-9
双把缸边浴缸龙头(直杆型出水嘴,柱型把手)
EX27105T
1402155(Only for CP, BN & CBL)
1423195(Only for AF, RGD & 2MB)
1423196(Only for BL & BMB)
46112
66637
1402144**
3006148
1402139**
(Only for -3)
(Only for -4)
1402149**
(Only for -9)
34264
1124651
1098124
871472
1414335
1402153
1405146
(Only for -3/4)
871021
(Only for -3/4)
834683
870858
78125
22352
835750(Only for -3/9)
3028156
835749(Only for -4)
3027230
22352
831587
1110332
3026861
3027229
831587
880062
834361
**订购时请说明颜色编号
**Color code must be specified when ordering
1426822-2-A
凯诗
OCCASION
Deck Mount Bath Faucet
EX27104T
1402140**
(Only for -4)
1402145**
(Only for -3)
1258088
1414335
1405169
(Only for -9)
1429288
(Only for -9)
835749(Only for -3/9)
835750(Only for -4)
834361
3026813
INSTALLATION INSTRUCTIONS
安装说明书
EX27104T-3
EX27104T-4
EX27104T-9
EX27105T-3
EX27105T-4
EX27105T-9
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒公
1402150**
(Only for -9)
司保留任何时候不经通知即可改变产品特性、包装或产
品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容,请把
这些资料交给用户阅读。
注意事项:
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 尽可能在安装浴缸之前安装水龙头。
3. 检查供水管有无损坏漏水。如需要,进行替换维修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
使用说明
对于杆型把手-4,逆时针旋转左把手为热水,顺时针旋
转右把手为冷水。
对于十字型和柱型把手-3/9,顺时针旋转左把手为热水
逆时针旋转右把手为冷水。
安装尺寸
87
61
Cross handle -3
84
61
Lever handle -4
55
61
Knob handle -9
4
1426822-2-A
Deck Mount Bath Faucet
双把缸边浴缸龙头(曲管型出水嘴,十字型把手)
双把缸边浴缸龙头(曲管型出水嘴,杆型把手)
双把缸边浴缸龙头(曲管型出水嘴,柱型把手)
双把缸边浴缸龙头(直杆型出水嘴,十字型把手)
双把缸边浴缸龙头(直杆型出水嘴,杆型把手)
双把缸边浴缸龙头(直杆型出水嘴,柱型把手)
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. If possible, install this faucet before installing the bathtub.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
For lever handle -4, turn the left handle counter-clockwise for
hot water, right handle clockwise for cold water.
For cross/knob handle -3/9, turn the left handle clockwise for
hot water, right handle counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
65
61
Ø22~Ø35
Ø32~Ø36
G1/2˝
200~400
EX27104T-3/4/9
凯诗
OCCASION
198
1
