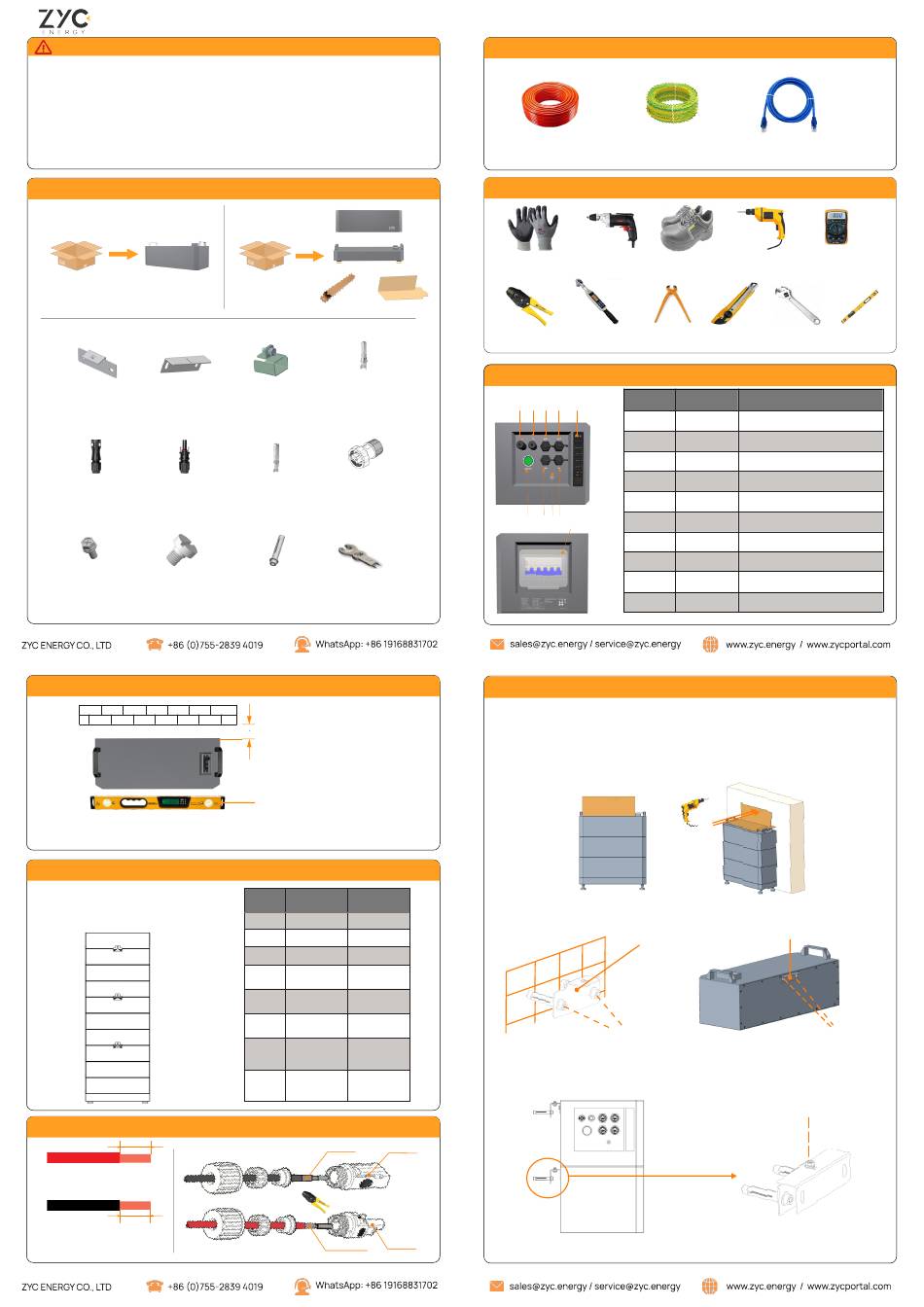

ZYC ENERGY SIMPO HV Quick Start Manual

SIMPO HV Quick Start Guide_V2.2(EN)
Safety Precaution
• Important: Installers and users are obliged to familiarise themselves with this manual.
• Danger: Power Cables and plugs have high voltage from the baery, be careful when
wiring.
• Important: Ensure that a fire extinguisher is in place prior to installation and use.
• Warning: Installation and operation must be carried out by qualified personnel and
the system must be installed in restricted access areas.
• Caution: The baery module is with certain weight. Install with the help of tools if
necessary.
Contents in SIMPO HV Package
Baery Package:
Baery Module
Module Box
Accessories Included:
A×4 B×4
Fixing part Fixing part
E×1 F×1
DC- Connector DC+ Connector
I×4 J×8
Bolt M5*10 Sloed step bolt
M5
Place the base
Wall
The base should be based on solid floor.
A spirit level is recommended for use when adjusting the feet.
Quantity of Fixing Parts Needed
Number ① - ⑨ represent module sequence
only in this part.
*Fixing part for BMS is necessary for any amount
of modules
⑨
⑧
⑦
⑥
⑤
④
③
②
①
Power Cables Crimping
28mm
≥10AWG
Copper:5mm²≤S≤9mm²
≥10AWG
28mm
*Cables of 8/10 AWG is recommended to
meet the need of SIMPO HV.
*Determine the cable size according to
your system.
BMS Package:
BMS
+
Base
+
BMS&Base Box
+
Accessories Package Stencil
C×2 D×1
Power Cable fixing part DC- Terminal
G×1 H×3
DC+ Terminal Rj45 Connectors
K×8 L×1
Expansion Screw Assembly Tool
1
26~34 mm
Spirit Level
Qty of fixing parts
Module Qty Position of module
per Tower recommended fixing parts
2 NONE NONE
3 1
③
4 1
④
5 2
③&⑤
6 2
③&⑥
7 2
③&⑦
8 3
③&⑥&⑧
9 3
③&⑥&⑨
E
H
3
Extra Accessories
Extra accessories are not included in the accessory box but necessary for system build up.
DC Cables
(≥10 AWG)
Tools
Insulated gloves
Crimper Torque Wrench
Dierent Functional Area on BMS
A B C D E
F G H I J
Fix To The Wall
Stack up the modules and whenever reaches the quantity of fixing parts needed,
follow the instructions below ：
Step 1:Locate and drill holes for fixing parts on the wall.
Before stacking up the module that needs to be fixed to the wall, use the stencil to
locate the drilling holes and finish the drilling.
Step 2:Install fixing part A to the wall and fixing part B to the module.
Step 3:Stack up the module and fix the screw between A and B
F
-
+
G
PE Cable with T
terminal (SC10-5)
(≥ 8AWG) (Cat.5e or Upper)
Screwdriver Safety Shoes Drill
Wire Cuer Utility Knife
Leer Lable
A -
B +
C ETH
D OUT
E HMI Human Machine Interface
F ON/FF
G INV
H PE
I IN
J /
2
A
K*2
Torque=5N*m
4
COM Cable
Multimeter
Wrench Spirit Level
Function
DC-
DC+
Ethernet
Com Out
ON/OFF
Inverter COM
PE Connection
COM In
Circuit Breaker
B
J*2
Torque=3.5N*m Torque=3.5N*m
I
Torque=3.5N*m Torque=3.5N*m
