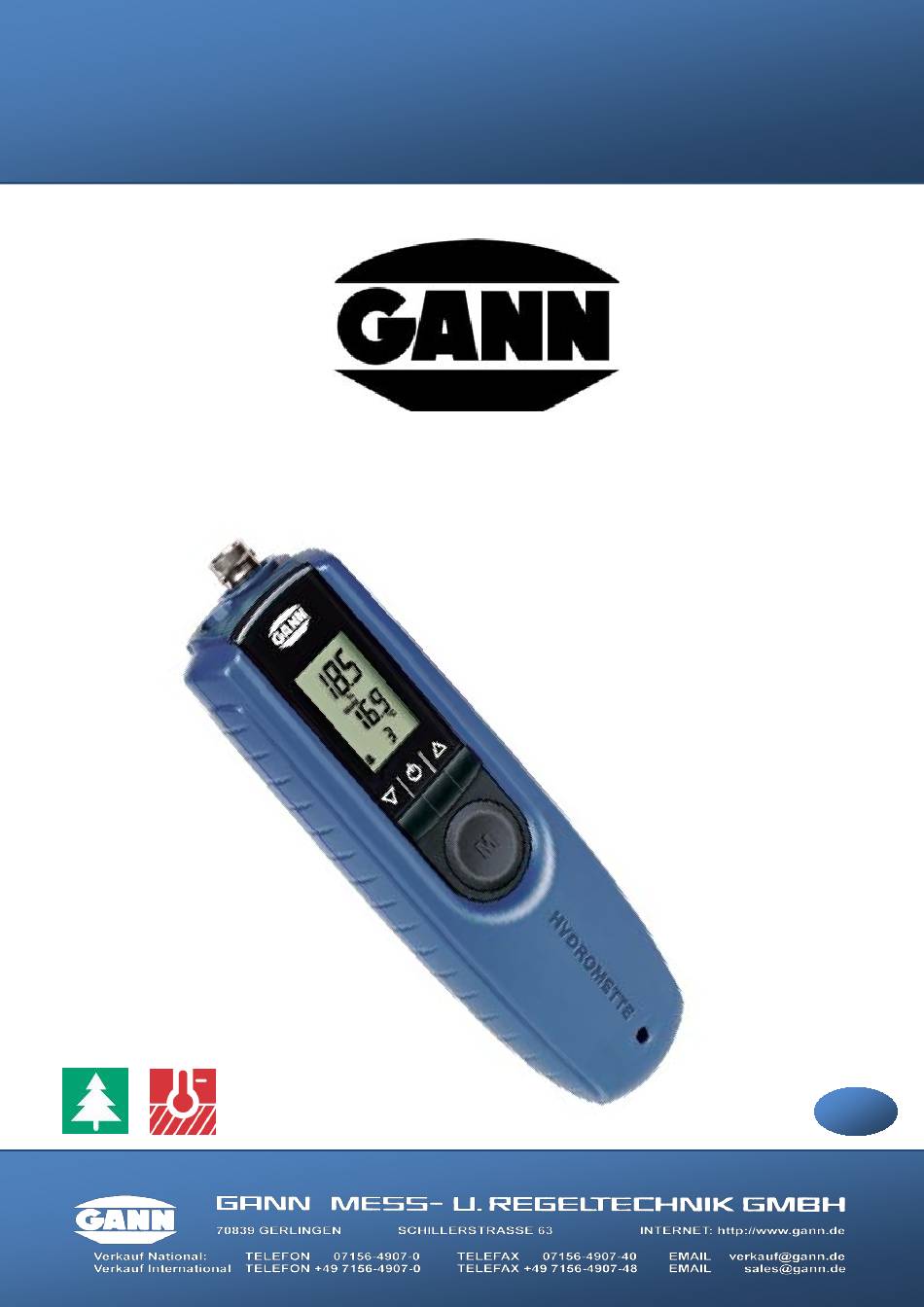

Operating Instructions
F
Version 3.0
HYDROMETTE
BL HT 70
EN
[Geben Sie Text ein]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDROMETTE BL HT 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GANN HYDROMETTE BL HT 70

Summary of Contents for GANN HYDROMETTE BL HT 70

  • Page 1 Operating Instructions Version 3.0 HYDROMETTE BL HT 70 [Geben Sie Text ein]...
  • Page 2 Disclaimer GANN Mess- u. Regeltechnik GmbH does not make any assurances or warranties with respect to this document and, to the extent permitted by law, limits its liability for breach of any implied warranty to the replacement of this document with another. Furthermore, GANN Mess- u. Regeltechnik GmbH reserves the right to revise this publication at any time without having to notify anyone about such revisions.

  • Page 3: Table Of Contents

    Table of Contents Foreword ............................5 User Description ........................5 Intended Use ..........................5 Non-Intended Use ........................5 Explanation of the General Warnings ..................6 General Safety Instructions ......................7 1.5.1 Persons at Risk ........................7 1.5.2 Preparation and Start-up ......................8 1.5.3 Use / Operation ........................8 1.5.4 Care, Maintenance and Inspection ..................
  • Page 4 General Information on Wood Moisture Measurement ............27 Notes on resistance-based Measuring Wood Moisture ............28 7.3.1 Test Adapter for resistance-based Wood Moisture Measurement ........29 Using the Hydromette BL HT 70 .................... 30 7.4.1 M 20 Drive-in Electrode......................31 7.4.2 M 20-HW 200/300 Stick-in Electrode Pair................

  • Page 5: Foreword

    All local regulations must be observed. 1.2 Intended Use The Hydromette BL HT 70 is an electronic wood moisture meter for precisely measuring sawn timber, chipboards and veneers. The device has a wood type selector function for automatic correction of measured values for over 300 types of wood as well as manually adjustable wood temperature compensation.

  • Page 6: Explanation Of The General Warnings

    1.4 Explanation of the General Warnings The following danger levels are used in this operating manual to indicate potentially dangerous situations and important safety instructions: Danger Level Description Danger / Indicates a hazardous situation which, if not avoided, will result in death or serious irreversible injuries. DANGER Warning / Indicates a hazardous situation which, if not avoided, could result in death or serious irreversible injuries.

  • Page 7: General Safety Instructions

    1.5 General Safety Instructions It must be ensured that the complete instructions and all safety instructions have been read and understood before using this device. All instructions must be followed. This prevents accidents that can result in property damage or minor or moderate injuries.

  • Page 8: Preparation And Start-Up

    1.5.2 Preparation and Start-up Never store or place the device in a location where it can fall or be drawn into water or other liquids. To avoid the risk of electric shock, never immerse the device in water or other liquids. Always remove all packaging before operating the device.

  • Page 9: Care, Maintenance And Inspection

    Caution, there is a risk of explosion if the wrong type of battery is inserted. Handle used batteries according to the manufacturer's instructions. Gann Mess- u. Regeltechnik GmbH accepts no liability for damage caused by non-compliance with the operating instructions or by violation of a duty to care during transport, storage or operation of the instrument, even if this duty to care is not specifically discussed in the operating instructions.

  • Page 10: Specific Warnings

    1.6 Specific Warnings There is a risk of injury from the measuring tips of the electrodes for resistance measurement. There is also a risk of injury due to careless handling when piercing / knocking into the material to be measured. Before the electrode pins are pressed / driven into walls or ceilings CAUTION (e.g.

  • Page 11: Specifications

    Ambient temperatures continuously too low (< 0 °C) 2.3 Transport- & Storage Conditions The Hydromette BL HT 70 may only be stored in the packaging provided by the manufacturer or available from the manufacturer as an accessory. The manufacturer shall not accept any liability or warranty for damage that may occur to the device or to the sensor system as a result of non- compliance.

  • Page 12: Measuring Range

    2.4 Measuring Range Wood moisture: 5.0 to 70 % (depending on type and temperature) Display in weight percent / bone-dry 7-level wood species correction ---------------------------------------------------------------------------------- 0.1 to 41 % (depending on type and temperature) Display in per cent water content 7-level wood species correction ---------------------------------------------------------------------------------- Compensation temperature:...

  • Page 13: General Information

    Operational reliability and functionality are no longer ensured if the device is modified or adapted. Gann Mess- u. Regeltechnik GmbH shall not be liable for any damage arising from such modifications or adaptations. The risk is borne solely by the user.

  • Page 14: Description Of The Product

    (wt.-% / bone-dry) as well as the wood moisture in % water content. The Hydromette BL HT 70 has a 3-line LCD display. The silicone buttons give haptic feedback for important functions.

  • Page 15: Device Layout And Button Assignment

    5 Device Layout and Button Assignment BNC socket 3.5 mm - jack receptacle LCD segment display Up button On / Off button Down button Measure button ("M" button) Figure 5-1: View of the Hydromette BL HT 70 ® Version 3.0 Hydromette BL HT 70...

  • Page 16: Display Symbols

    5.1 Display Symbols 5.1.1 Main Menu Symbols Material moisture in % by weight "Hold" symbol Compensation temperature in °C - manual Material index Wood symbol Figure 5-2: Main menu symbols 5.1.2 Other Symbols Symbols for minimum / maximum value display Battery level indicator Compensation temperature in °C –...

  • Page 17: Switching The Device On And Off

    5.2 Switching the Device On and Off The device is switched on and off by pressing the "On / Off" button . The device starts in the measuring menu or main menu. The measuring process can be carried out here [see Chapter 5.3.1 "Measurement menu (main menu"].

  • Page 18: Measuring Menu (Main Menu)

    5.3.1 Measuring Menu (Main Menu) After switching on, the device is in the measuring menu (main menu). The other menus can be accessed from here by pressing the "Up" or "Down" buttons. In the measuring menu, the last measured values are displayed according to the material selection made with the associated units and the note "Hold".

  • Page 19: Material Setting

    Now a new measurement can be performed by pressing and holding (> 2 seconds) the "M" button. The Hydromette BL HT 70 has a 7-level wood species correction. The setting for the wood to be measured is therefore taken from the "1...7" column. The measured value is displayed in weight-%. If the measured value is to be displayed in water content in %, the wood type is assigned to the material codes "31 …...

  • Page 20: Compensation Temperature

    5.3.3 Compensation Temperature Press Down button twice Measuring menu The Hydromette has an automatic compensation of the measured value depending on the adjustable material temperature. This measured value compensation is always carried out with the temperature displayed in the measuring mode. The instrument is supplied as standard with a compensation temperature of 20 °C as the factory setting.
  • Page 21 Compensation temperature via external temperature sensor No further settings need to be made in order to use this function. The ET 10 BL Pt100 temperature sensor must be connected to the measuring device via the 3.5 mm jack receptacle. Ensure that the octagonal plug is firmly seated. The measuring instrument now automatically recognises the connected sensor.

  • Page 22: Maximum Value Display

    5.3.4 Maximum Value Display Measuring menu Press Down button 3 times The highest measured value of a measurement series is displayed together with the "Max" display symbol. A dash at the position of the measured value indicates that there is no maximum value (yet). If an existing maximum value should be deleted, the displayed value must be selected by briefly (<...

  • Page 23: Minimum Value Display

    5.3.5 Minimum Value Display Measuring menu Press Down button 4 times The lowest measured value of a measurement series is displayed together with the "Min" display symbol. A dash at the position of the measured value indicates that there is no minimum value (yet). If an existing minimum value should be deleted, the displayed value must be selected by briefly (<...

  • Page 24: Memory Menu

    5.3.6 Memory Menu Measuring menu Press Down button 5 times As soon as you select the memory menu, the memory location number "o1" is displayed for approx. 1 second, and then the last measured saved value contained there is displayed. By briefly (<...

  • Page 25: Other Functions

    6 Other Functions 6.1 Automatic Switch-Off If no button is pressed within approx. 90 seconds, the device switches off automatically. The current values are retained and are displayed again after the device is switched on again. 6.2 Battery Monitoring If the battery symbol is shown in the display, the battery is dead and must be replaced.

  • Page 26: Application Notes

    7 Application Notes 7.1 Comparative Measurement or Reference Measurement With this type of measurement, almost all (set) building materials or mixed materials or mixed structures can be measured comparatively. It is important that these measurements are only carried out on the same materials or structures. A deliberately dry spot must be determined on the structure to be measured.

  • Page 27: General Information On Wood Moisture Measurement

    7.2 General Information on Wood Moisture Measurement The wood moisture in the GANN Hydromettes® is displayed in per cent by weight (wt.-%) in relation to absolutely dry wood (bone-dry). If wood is stored for extended periods in a given climate it assumes a moisture content corresponding to this climate, which is also termed equilibrium moisture or wood moisture equilibrium.

  • Page 28: Notes On Resistance-Based Measuring Wood Moisture

    7.3 Notes on resistance-based Measuring Wood Moisture The GANN Hydromettes works by measuring electrical resistance or conductivity, a principle which has been well-known for many years. This process is based on the fact that electrical resistance is highly dependent on the amount of moisture in the wood.

  • Page 29: Test Adapter For Resistance-Based Wood Moisture Measurement

    1 % wood moisture for every 10 °C deviation from 20 °C, provided the wood is dry. In addition, the GANN Hydromettes® have a wood temperature compensation table in the appendix of the operating instructions.

  • Page 30: Using The Hydromette Bl Ht 70

    7.4 Using the Hydromette BL HT 70 When measuring wood moisture, the two measuring tips of the Hydromette must be pushed / hammered into the wood to be measured at right angles to the fibre direction. When removing them, light prying movements can be used at right angles to the grain to loosen the tips. Please refer also to the notes on wood moisture measurement in Sections and 7.3.

  • Page 31: M 20 Drive-In Electrode

    7.4.1 M 20 Drive-in Electrode The M 20 drive-in electrode is made of impact-resistant plastic and is suitable for measuring wood thicknesses of up to 50 mm. When the drive-in electrode M 20 is first delivered, 10 replacement tips of 16 and 23 mm length are included in the delivery. The two electrode pins of the drive-in electrode must be pressed or hammered into the wood to be measured at right angles to the fibre direction.

  • Page 32: M 20-Of 15 Surface Measuring Caps

    7.4.3 M 20-OF 15 Surface Measuring Caps The surface measuring cap pair M 20-OF 15 is used in conjunction with the M 20 electrode for resistance-based measurement of moisture on surfaces without damaging the material being measured. In the area of wood moisture, it can be used to measure workpieces that have already been processed or to measure veneers or multi-layer parquet / multi-layer planks.

  • Page 33: M 19 Stick-In Electrode

    7.4.5 M 19 Stick-in Electrode The stick-in electrode M 19 is made of impact-resistant plastic and is suitable for measuring finished thermal insulation composite systems (e.g. wood fibre insulation materials). The initial delivery of the stick-in electrode M 19 includes 10 Teflon-insulated electrode pins, each 60 mm long. To change the electrode pins, the coupling nut must be unscrewed.
  • Page 34 Please note that: - In order to determine any increased core moisture, the electrode pins must be driven in approx. 1/3 of the entire wood thickness. - Particularly in the case of moisture ingress from outside, e.g. rain or condensation, only the increased surface moisture is measured, regardless of INFORMATION the penetration depth.

  • Page 35: Accessories

    8 Accessories 8.1 Accessories for Wood Moisture Measurement Wood moisture test adapter (order no. 31006070) Test adapter for wood moisture, for check of wood moisture measuring instruments with accessories. M 20 drive-in electrode (order no. 31003300) The drive-in electrode M 20 is made of impact-resistant plastic and is suitable for measuring wood thicknesses of up to 50 mm (e.g.
  • Page 36 M 20-OF 15 surface measuring caps (order no. 31004315) The surface measuring cap pair is suitable for moisture measurements on surfaces without damaging the material to be measured in conjunction with the M 20 electrode (e.g. veneers, solid or multi-layer parquet). Depth effect 2–5 mm.
  • Page 37 M 18 ram-in electrode (order no. 31003500) The ram-in electrode M 18 is made of corrosion-resistant V2A steel and is suitable for (depth) measurements in up to 180 mm thick or hard wood, wood fibre insulation materials and wood composites. When first delivered, the ram-in electrode M 18 is supplied with 10 replacement tips of 40 and 60 mm length (not insulated).

  • Page 38: Accessories For Temperature Measurement

    8.2 Accessories for Temperature Measurement ET 10 BL push-in temperature sensor (order no. 31013165) The ET 10 BL is a simple penetration temperature sensor for measuring temperatures in semi-solid materials (e.g. frozen goods), bulk materials, liquids and for measuring core temperatures in a drill hole. ...

  • Page 39: Appendix

    9 Appendix 9.1 Material-Table Display in: Wood type 1 Wood type 2 Wood type 3 Wood type 4 wood moisture in weight % / atro Wood type 5 Wood type 6 Wood type 7 Wood type 1 Wood type 2 Wood type 3 Wood type 4 wood moisture in % of water content...
  • Page 40 Measured values Measured values 11.0 11.0 12.0 12.0 13.5 13.5 14.5 14.5 16.0 16.0 17.0 17.0 18.5 18.5 19.5 19.5 20.5 20.5 22.0 22.0 23.0 23.0 10.0 10.0 11.0 11.0 12.5 12.5 13.5 13.5 15.0 15.0 16.0 16.0 17.5 17.5 18.5 18.5 19.5...

  • Page 41: General Concluding Remarks

    9.4 General Concluding Remarks The notes and tables in these operating instructions on permitted or normal humidity conditions in practice and the general definitions of terms have been taken from the specialist literature. No responsibility can therefore be taken by the manufacturer of the measuring device for the correctness of this information.

  • Page 42: Eu Declaration Of Conformity

    EU Declaration of Conformity Document no. / order no.: 30011250 HYDROMETTE BL HT 70 Product identifier: We declare that the hand-held meter and related accessory correspond with the protection requirements and if used according to their intended purpose, comply with the requirements of the directives: ☒...
