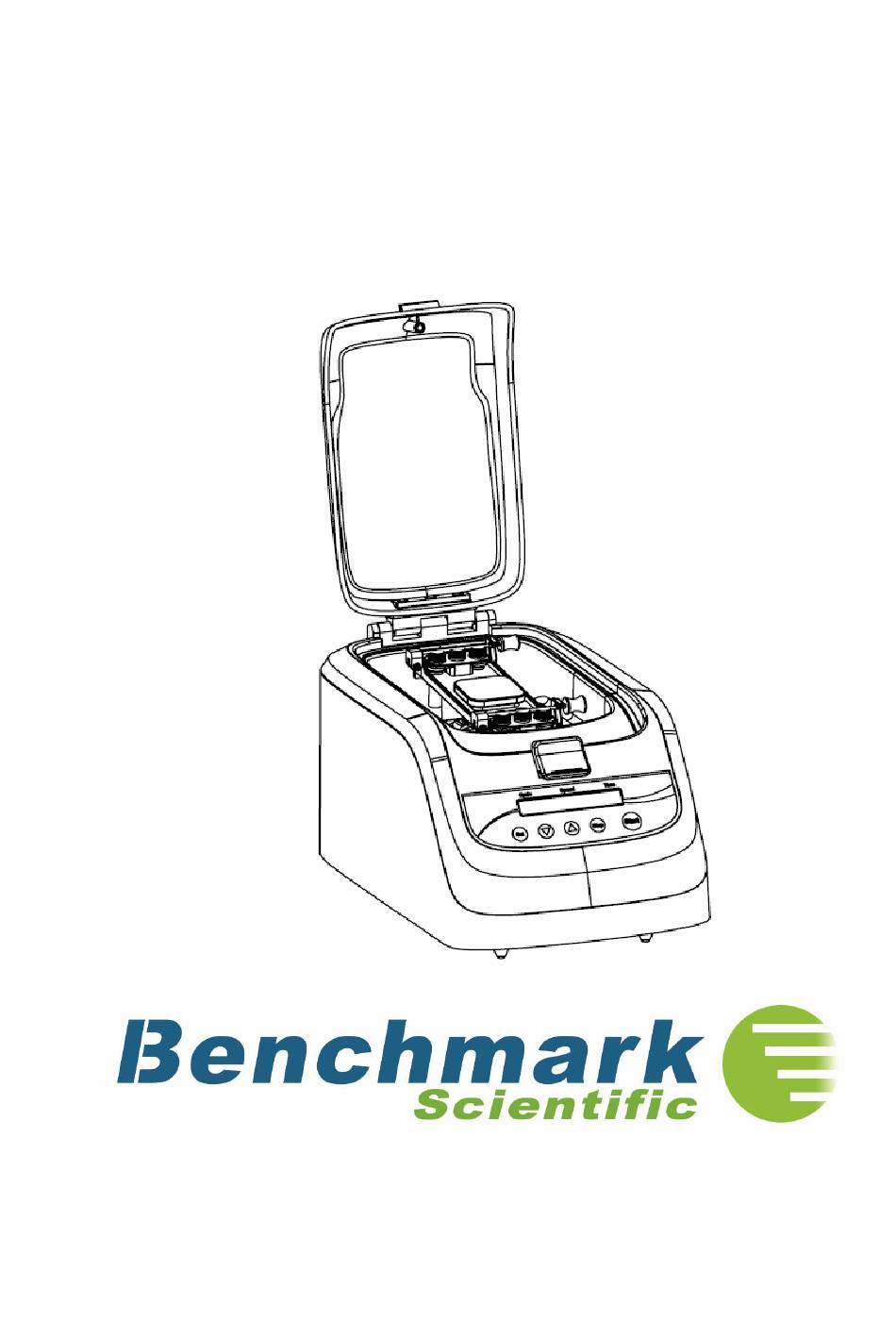

- Page 1 ™- BeadBug Microtube Homogenizer PO Box 709 Edison, NJ 08817 USA Ph: 908 769-5555 EM: info@benchmarkscientific.com...
- Page 2 Included in this package should this manual, the instrument, two tube holders for 3 x 0.2ml tubes and the power cord/adapter. The BeadBug 6 is a universal voltage instrument. Please be sure that the power cord complies with local voltage requirements.
-
Page 3: Safety Warnings And Guidelines
Safety Warnings and Guidelines 1. Important operation information: Read this manual carefully before attempting to operate the instrument. Read this manual prior to powering up the instrument. Pay special attention to the guidelines and directions below and become familiar with all safety warnings and guidelines. 2. -
Page 4: Maintenance
Install the instrument in a cool, dry location free from dust, direct sunlight or strong lights. The instrument should be placed away from corrosive gasses, strong magnetic fields and heat sources. Allow at least 4 inches on all sides of the instrument for proper air circulation. If using 2 instruments side by side, they should be placed at least 100cm apart. -
Page 5: Table Of Contents
Contents CHAPTER 1 INTRODUCTION ....................6 CHAPTER 2 SPECIFICATIONS ....................7 1. NORMAL OPERATION CONDITIONS ................7 2. BASIC PARAMETERS AND CHARACTERISTICS ............7 CHAPTER 3 BASIC INSTRUCTIONS ..................7 1. STRUCTURE OVERVIEW ....................8 2. INSTALLATION AND TUBE LOADING ................9 CHAPTER 4 OPERATION GUIDE .................. -
Page 6: Chapter 1 Introduction

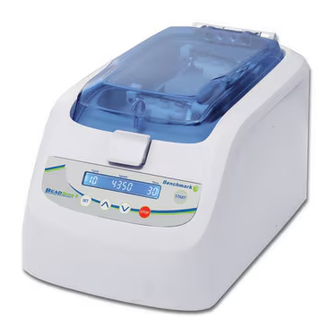

BeadBug-6 Homogenizer Manual Chapter 1 Introduction The BeadBug-6 is a microtube homogenizer designed for use with biological samples. Samples are placed in a tube with the appropriate grinding media and buffer, and subjected to a three-dimensional, high speed motion. Features: ... -
Page 7: Chapter 2 Specifications
BeadBug-6 Homogenizer Manual Chapter 2 Specifications 1. Normal operating conditions: Ambient temperature：5°C - 35°C The relative humidity：≤70% Power：24VDC 6A 2. Basic parameters and characteristics Type BeadBug-6 Parameter Display Sample capacity 6 x 2ml tubes/or 2 x 5ml tubes* Cycle duration 1 sec to 90 sec in 1 sec increments Pause 1 sec to 90 sec in 1 sec increments... -
Page 8: Chapter 3 Basic Instructions
BeadBug-6 Homogenizer Manual Chapter 3 Basic Instructions This chapter focuses on the structure, operation keys, and display of the instrument, as well as preparatory work before starting. Please read this chapter before initial operation 1. Structure overview Magnet Transparent cover Swing plate Sample tubes Lid latch... -
Page 9: Installation And Tube Loading
BeadBug-6 Homogenizer Manual 2. Installation and Tube Loading 2.1 Removing Shipping Screws The BeadBug-6 is shipped with motor stabilizing screws. These screws must be removed before use. Failure to do so may damage the unit. Locate the shipping screws on the bottom of the unit (see image below). Using the supplied Allen key, remove these screws completely. -
Page 10: Chapter 4 Operation Guide
BeadBug-6 Homogenizer Manual Chapter 4 Operation Guide 1. Operation Panel and Display Display Rotate speed Press“▲”+“▼” Cycle Running time Linear velocity to switchover 2. Control Panel Functions : Press to enter the programming mode and set operating parameters. Pressing multiple times will toggle between the parameters. -
Page 11: System Check
BeadBug-6 Homogenizer Manual 3. System Check Upon turning on the instrument, a self-check is performed. he display will flash 8’s on the screen three times (shown below) and then the last run parameters will be displayed. 4. Setting Run Parameters 4.1 Press “Set”... -
Page 12: Tips For Setting Up Samples
See the Bead Compatibility Chart later in this manual for bead recommendations. If unsure, contact Benchmark for support at info@benchmarkscientific.com. • For the most efficient homogenization, tubes should be no more than ½ full of beads, sample and buffer. - Page 13 BeadBug-6 Homogenizer Manual D1031-T21 2.0ml tubes (empty) pack of 50 with caps and sealing ring D1031-RF 2.0ml reinforced tubes (empty) pack of 500 with cap and sealing ring C1005-SC5 5.0ml tubes (empty), pack of 500 with cap** Bulk Beads D1131-01 Bulk Beads, Silica (glass), 0.1mm, acid washed, 200g D1131-05 Bulk Beads, Silica (glass), 0.5mm, acid washed, 200g...
-
Page 14: Bead Compatibility Chart
BeadBug-6 Homogenizer Manual 7. Bead Compatibility Chart... -
Page 15: Chapter 5 Troubleshooting Guide
BeadBug-6 Homogenizer Manual Chapter 5 Troubleshooting Guide Problems and actions Problem Possible cause Solution(s) Check the power supply and No power that the unit is plugged in properly No display on the screen On/Off button broken Change button Others Contact supplier Sensor broken Velocity measurement Contact supplier... - Page 16 BeadBug-6 Homogenizer Manual Notes...
