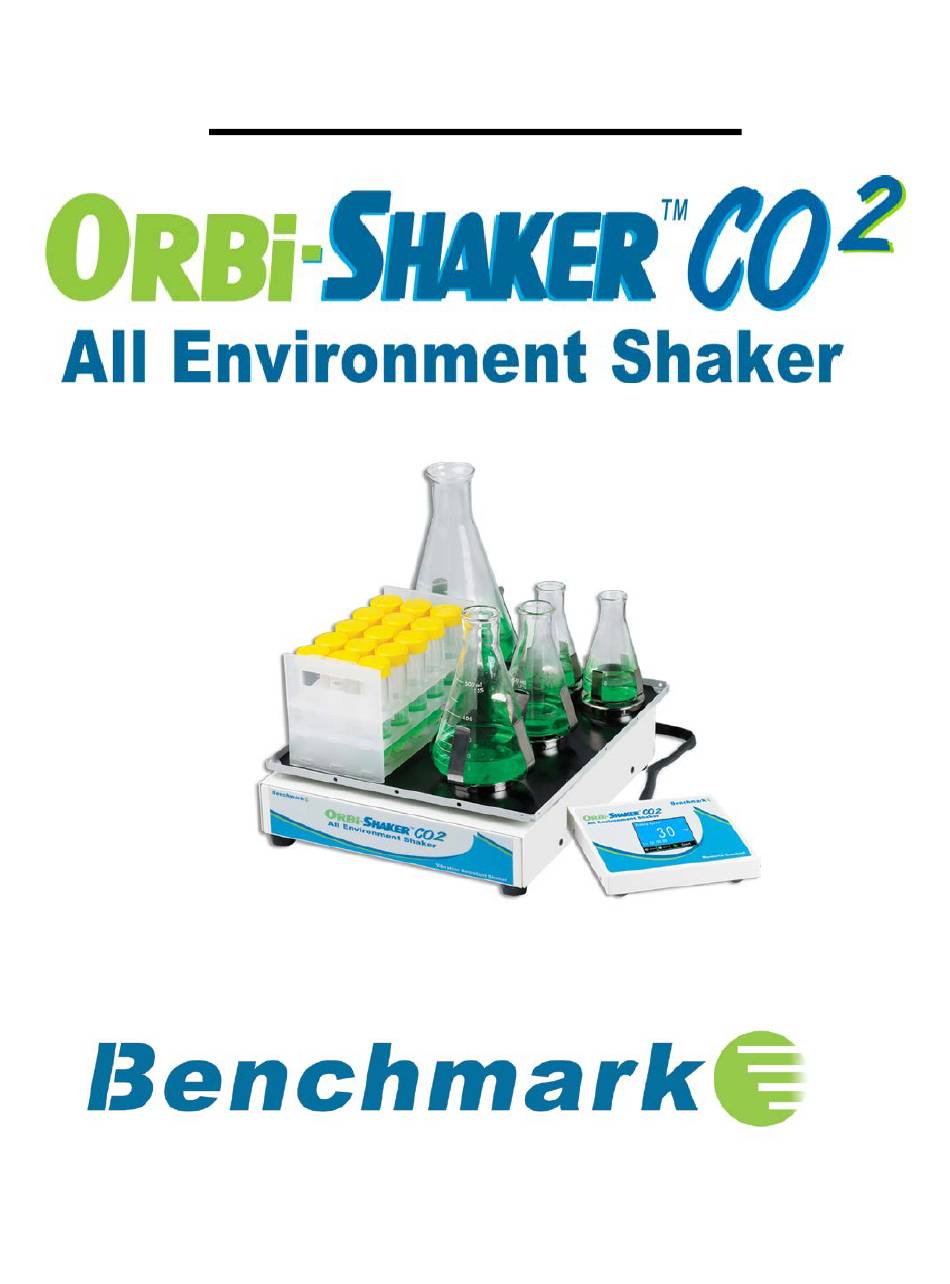

- Page 1 Operations Manual...
- Page 2 Index: I. General Information II-1. Introduction II-2. Installation II-3. Specifications II-4. Features III-1. Operation III-2. Platform Installation III-3. Error Messages III-4. Maintenance IV-1. Service and Contact...
- Page 3 I. General Information ₂ NOTE : Before operating the Orbi-Shaker CO please take a few minutes to familiarize yourself with the contents of this manual. Thank you for purchasing the Orbi-Shaker CO₂. This operations manual contains instructions for the care of this Instrument. In order to use the instrument properly, please read this manual carefully before operation.
- Page 4 available for compatibility with a wide variety of laboratory vessels, including flasks, tubes, dishes and trays. II-2. Installation - Choose a location for the shaking mechanism. - To assure proper ventilation, allow a minimum of 2 inches (5 Cm) of the clearance between the rear and side of the unit and the adjacent wall.
- Page 5 II-3. Specification 1) Dimension (Exterior) : 30 (W) X 34 (D) X 11.8 (H) cm / 11.8 (W) x 13.5 (D) x 3.5 (H) (Platform): 30 (W) x 33 (D) cm / 12 (W) x 13 (D) in. 2) Speed range : 30 - 300 RPM (No load &...
- Page 6 II-4. Features 1) Constant Monitoring System (CMS) ensures precise control over speed 2) Sealed shaking mechanism for use in extreme environments (humidity up to 100%) 3) Controller allows for speed/time adjustment without opening door when it is used in an Incubator or a chamber. 4) MAGic Clamp platform available as optional accessory.
- Page 7 III-1. Operation ▶ Booting Press the power switch into the ON position, the display illuminates and the booting screen is displayed for 2 seconds before showing the “Basic View” screen. NOTE: If the shaker has been powered off before the completion of a run, the unit will automatically power on to the previous settings.
- Page 8 ▷ Time setting change ⓐ TOUCH the time value, The numbers become red ⓑ “SET MODE” is displayed (flashes) ⓒ Input the desired value by pressing UP(▲)/DOWN(▼) buttons NOTE: Press and hold the buttons to increase or decrease the value quickly.
- Page 9 ▶ Shaker setting (Advanced) ⓑ Adjusting the Shaking Time ⓑ TOUCH the “Time Set” Value to adjust the set shaking time. ⓒ Input the desired value by using the key pads in the ⓒ setup screen ⓓ Apply: When you press , the changed setting values are saved and the screen turns to the previous screen...
- Page 10 ⓐ 3.1.3. Shaker Step Setting ▷RPM, time setting ⓐ TOUCH the RPM Shaker value to enter the shaker setup screen. ⓑ Select , the screen moves to the shaker step & setup screen ⓒ You can select/link up to 4 desired shaking speeds. Choose each of the 4 desired speeds by pressing on the speed value.
- Page 11 ▶Step Cycle Ending Screen ⓐ ⓐ When the time for each step has expired, the “Shaker End” message is displayed ⓑ “Set” displays the setting value of 1 step ⓑ (Default value is displayed when Step Off) Time is displayed as 0 ⓒ...
- Page 12 III-2. Platform Installation The Orbi-Shaker CO₂ includes a flat non-slip platform for low speed operation with many common vessels, including trays and dishes. For installation of the optional MAGic Clamp platform, please follow the instructions below: 1.) Unscrew the four metal thumb screws from the corners of the internal platform and remove the green rubber mat.
- Page 13 IV-1. Service and Contact Service on the Orbi-Shaker CO₂ should only be performed by qualified service personnel. To request service or technical support, please contact Benchmark Scientific or your local Benchmark Scientific representative. Ph: +1-908-769-5555 Fax: +1-908-222-1864 Em: Info@BenchmarkScientific.com Web: www.BenchmarkScientific.com...
