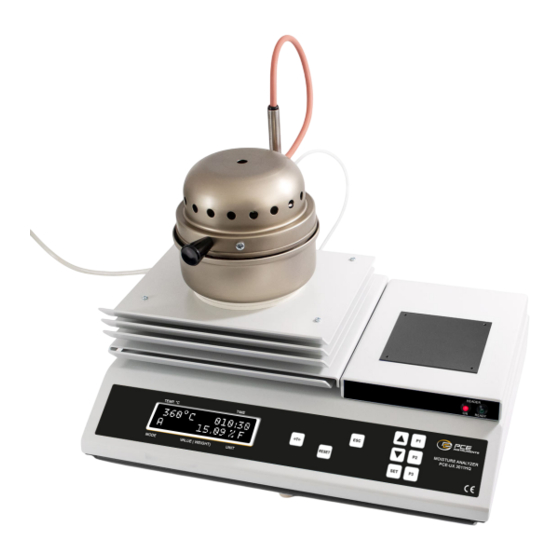

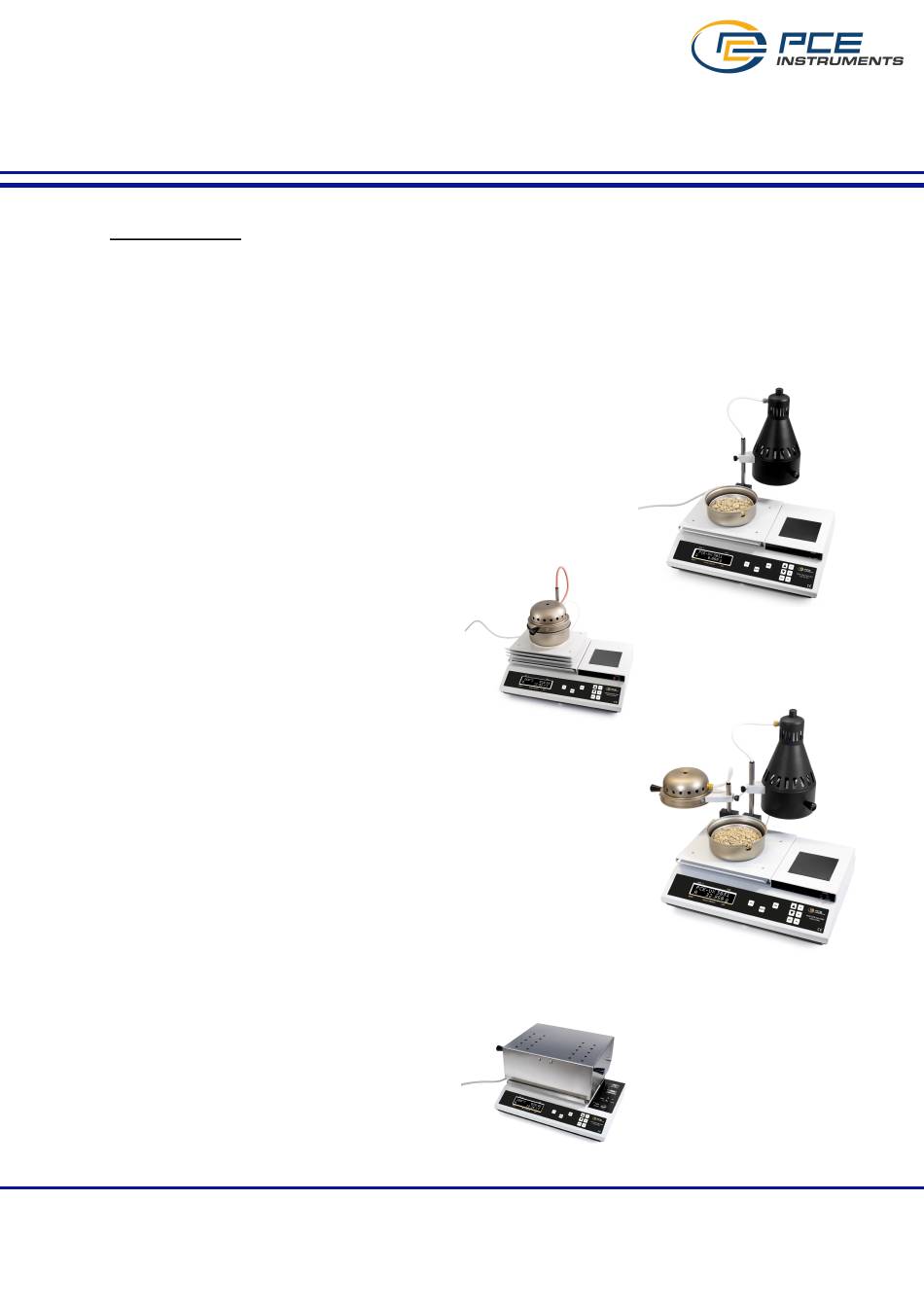

Operating instructions for moisture analysers
PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q,
PCE-UX 3011HQ, PCE-UX 3031
012021
Basic information
Intended use
PCE-UX moisture analysers are solely designed to quickly measure moisture and dry matter in solid,
viscous and fluid substances using thermogravimetric analysis. A sample is weighed while being dried
by infra-red heat.
Common features for all PCE-UX devices:
Short measurement time, gentle and even drying of samples, high reproducibility
Automatic or time-controlled measurement shut-off
PCE-UX 3011/ PCE-3011Q/ PCE-3011HQ
Temperature-controlled infrared heater 250 W/ 375 W
Temperature range: 40 – 200 °C/ 360 °C/600 °C
Stainless steel drying tray 111 mm diameter
PCE-UX 3031
Special device for gypsum industry
2 temperature-controlled heaters for separate measurement of
free and chemically bound moisture in gypsum products
Temperature range: 40 – 360 °C
Stainless steel drying tray 111 mm diameter
PCE-UX 3081/ PCE-3081WQ
Special device for extra large samples,
e.g. in the chipboard industry
2 temperature-controlled ceramic heaters
Temperature range: 40 – 220 °C/ 300 °C
Stainless steel drying tray 245 x 120 mm
Seite 1
Advertisement
Related Manuals for PCE Instruments PCE-UX 3011
Summary of Contents for PCE Instruments PCE-UX 3011
- Page 1 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 012021 Basic information Intended use PCE-UX moisture analysers are solely designed to quickly measure moisture and dry matter in solid, viscous and fluid substances using thermogravimetric analysis. A sample is weighed while being dried by infra-red heat.
- Page 2 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Contents Search term page Accessories, supplied 4/6/ 14 Assigning a device ID Automatic mode Automatic shut-off Buttons Calibrating the scale Care and maintenance Changing the print ribbon...
- Page 3 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Safety instructions Always transport the device in an upright position and protect it from impact. Always operate the device on a level surface, using a vibration-free base.
-
Page 4: Tray Holder
PCE Instruments undertakes to repair faulty devices within the warranty period, free-of-charge, if the defect is a manufacturing fault. This warranty covers the repair of spare parts and working hours required. It does not cover normal wear-and-tear and soiling and staining of the device. PCE Instruments will not accept any freight costs. - Page 5 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 1. 3 Now swing the heater to the right or the left to its rearmost position. Avoid using force to twist the heater beyond its stop point, as this could damage the device.
- Page 6 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Operation Display and buttons temp. C° time down reset mode value (weight) unit Tare button for setting the Button for accessing and percentage purity weight readout back to zero...
-
Page 7: Temperature Control
Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 temp. C° time Temperature control unit mode value (weight) temp. C° time temp. C° time Value is stored down mode value (weight) unit mode value (weight) unit temp. -
Page 8: Measurement Unit
Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 temp. C° time mode value (weight) unit Start of query in minutes Specify the drying period required for the samples without automatic mode. The factory-set 3 minutes are usually adequate. -
Page 9: Printer Options
Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 temp. C° time Printer options unit mode value (weight) For devices without a printer, the number of prints must be set to ‘1’! temp. C°... -
Page 10: Date And Time
Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 temp. C° time Date and time mode value (weight) unit Use ‘up’/ ‘down’ to set the date and press ‘set’. temp. C° time Use ‘up’/ ‘down’ to set the month and press ‘set’... - Page 11 C° time temp. C° time Position Enter 5-digit 5x Under scored etc. down mode value (weight) un it mod e value (weight) unit If you forget the PIN, you can obtain a new one from PCE Instruments. Seite 11...
- Page 12 If your device has a program memory, appears in the top left of the display "HP" for type PCE-UX 3011 and a number of 1-9, "QP" for type PCE-UX 3011Q and PCE-UX 3011HQ and a number of1-9, "HP" for type PCE-UX 3031 and a number of 1-9 for the infra-red heater, or "QP"...
- Page 13 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Moisture analysis process The device should be connected to the mains supply and switched on with a drying tray. A weight value is displayed. Set scales to zero using the ‘tare’ button, display ‘0.000 g’.
- Page 14 Connect devices, place CD in PC, the installation is self-explanatory. Order no.: Application: Accessories: Stainless-steel drying tray 10000282 Sample containers for PCE-UX 3011/ 3031 (2 trays supplied) Tray tongs 10000230 for lifting the tray (supplied) Mains cable H1000190 Mains connection (supplied) Order no.:...
- Page 15 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Overview of menu setup via the UP button M e n u Menu language Language, GERMAN Menu CAL „ Calibrate? Set or esc“ <set> „If scales are empty, press set!“ <set>“...
- Page 16 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Potential errors Error Reason Solution Display Display blank: Initial load too small or large, Place empty drying dray on centre of Tray support and / or tray missing tray support, temp.
- Page 17 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Error Reason Solution Measuring Heater will not switch on: Heater is faulty Change heater Temperature sensor is faulty Contact PCE Instruments Infrared heater will not...
- Page 18 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Technical data Scale: Weight range up to 220 g Resolution 0.1 g Sample volume max. 95 cm³ Weighing tray 110 mm round For moisture analysis: Initial weight any weight from approx.
- Page 19 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Order no.: Use: Accessories: Stainless steel drying tray 10000282 Sample carriers UX 3011/ 3031 (2 trays supplied) Tray tongs 10000230 for lifting the tray (supplied)
- Page 20 Operating instructions for moisture analysers PCE-UX 3011, PCE-UX 3011G, PCE-UX 3011Q, PCE-UX 3011HQ, PCE-UX 3031 Assembly PCE-UX 3011HQ Seite 20...
- Page 21 For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE Instruments contact information...
