Hanna Instruments HI2211 Quick Reference Manual

QUICK REFERENCE GUIDE

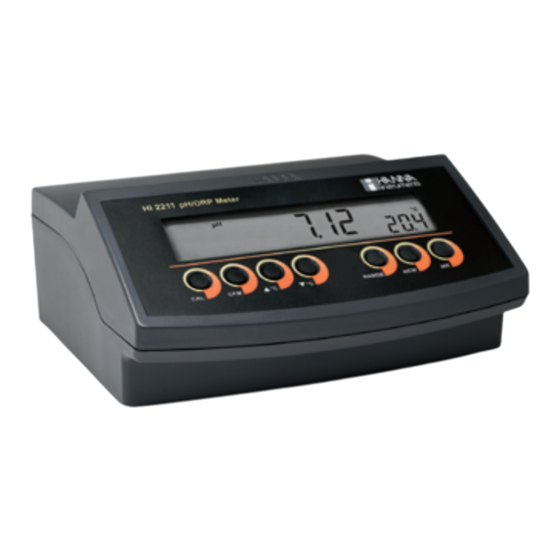

HI2211 pH/mV Benchtop Meter
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products,
visit www.hannainst.com or e-mail us at sales@hannainst.com.
For technical support, contact your local Hanna Instruments office
or e-mail us at tech@hannainst.com.
Please scan the QR code or use the link below
to download the user manual.
https://manuals.hannainst.com/HI2211
Available Models
• HI2211-01 115 Vac, USA plug
• HI2211-02 230 Vac, EU plug
Package Contents
• HI2211
• HI1131B pH electrode
• HI7662 Temperature probe
• HI76404N Electrode holder
• pH 4.01 buffer solution, 20 mL sachet
• pH 7.01 buffer solutions, 20 mL sachet
• HI7082 3.5M KCl electrolyte solution (30 mL)
• HI700661 Cleaning solution, 20 mL sachet
• 12 Vdc power adapter
• Instrument quality certificate with quick reference guide
• Electrode | probe quality certificates with quick reference guides
Note: Save all packing material. Any damaged or defective item must be
returned in its original packing material with the supplied accessories.
Main Features
• Two-point calibration
• Automatic temperature compensation
• Measurement recall
Compatible Accessories
Application-specific pH and ORP probes can be found here:
www.hannainst.com/products/electrodes-probes
Brief Operational Overview
Attaching the electrode holder base plate
• Identify the metal base plate with integrated pivot pin.
• Place the meter face down and align the hole on the base plate over
the rubber foot. The pivot pin should be facing downward.
• Use a screwdriver to tighten the screw.
BNC electrode connection
• Connect the electrode to the BNC connector port (10).
• Align the key and twist the plug into the socket.
Reference electrode connection
• Plug the reference electrode's jack into socket (11).
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
RCA probe connection – temperature
• Plug the connector into socket (12).
Note: Connect the probe with the device disconnected from power.
Power connection
• Plug the 12 Vdc adapter in to power.
• Press the power button (9) to turn the device on.
Functional Description
HI2211 pH/ORP Meter
4
pH
3
CAL CFM  ˚ C
2
1
1. Temperature and pH buffer value configuration
2. Confirm configured value
3. Enter (exit) calibration
4. Liquid Crystal Display (LCD)
On
9
Off
8
8. Input for power cable
9. Power button
10. BNC electrode connector
Best Practices
• Use pH 7.01 as first calibration buffer.
• Use pH 4.01 as second buffer when measuring acidic solutions.
• Use pH 10.01 as second buffer when measuring alkaline solutions.
• Immerse electrode tip 4 cm (1½") into the sample to be measured.
• Remove electrode from solution prior to powering off the meter.
• Do not place electrode in storage solution if connected to the meter.
Hanna Instruments is committed to developing and deploying digital solutions
with a positive impact on the environment and climate.
All Hanna instruments conform to the CE European Directives and
UK standards, and our production facilities are ISO 9001 certified.
HI2211 is warranted for a period of two years against defects in workmanship
and materials when used for its intended purpose and maintained according
to instructions. Electrodes and probes are warranted for six months.
Please retain for future use.
˚
C
 ˚
C RANGE MEM MR
5. Data recall
6. Data logging
7. Range selection
pH/ORP Ref.
TEMP
11. Reference electrode port
12. Temperature probe port
QR2211 11/23
5
6
7
10
11
12
