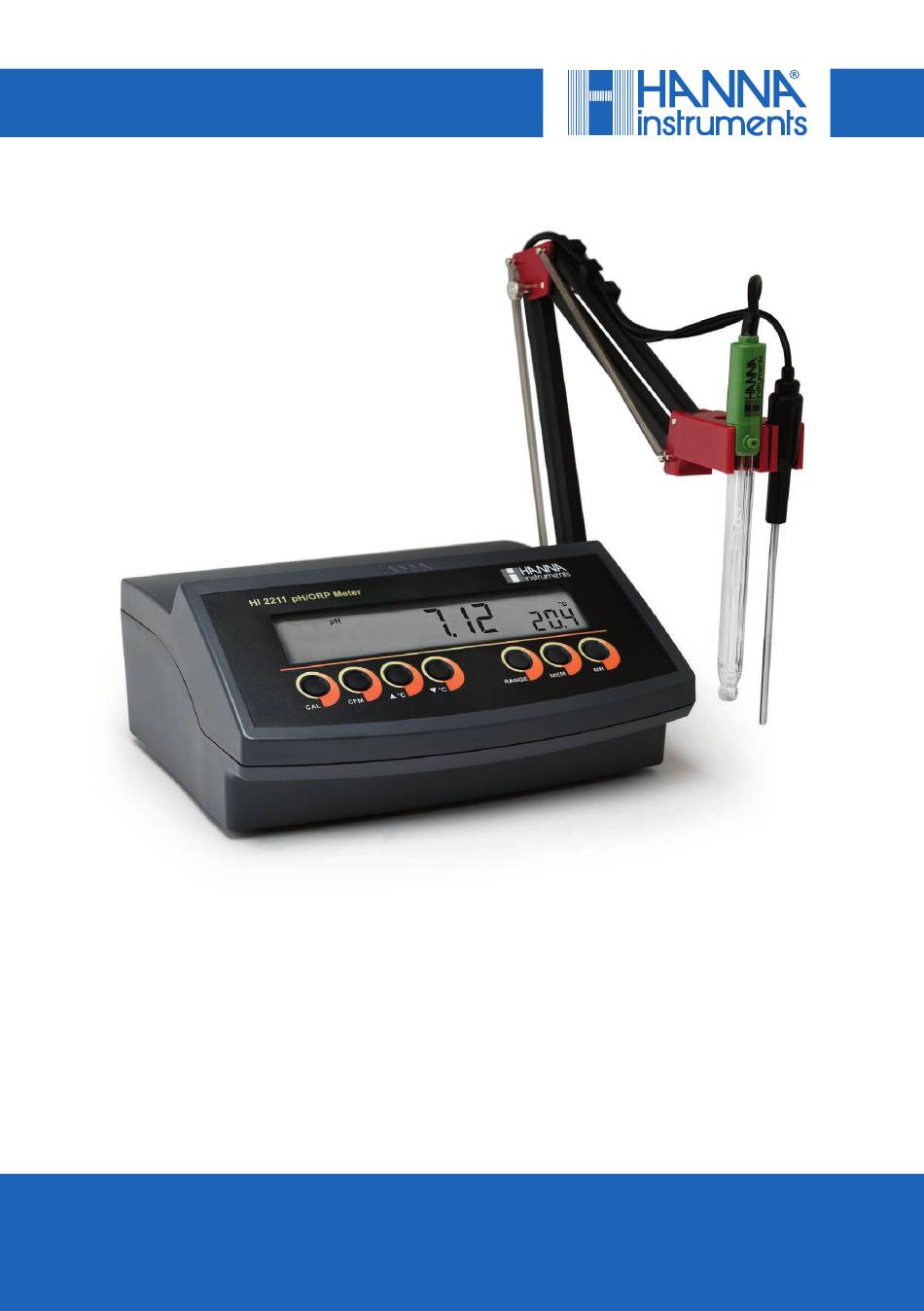

INSTRUCTION MANUAL
HI2210
HI2211
Microprocessor-based Bench Meters
pH / mV / °C
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI2210 and is the answer not in the manual?

Questions and answers

Related Manuals for Hanna Instruments HI2210

Summary of Contents for Hanna Instruments HI2210

  • Page 1 INSTRUCTION MANUAL HI2210 HI2211 Microprocessor-based Bench Meters pH / mV / °C Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA www.hannainst.com...

  • Page 2: Table Of Contents

    All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. Hanna Instruments reserves the right to modify the design, construction, or appearance of its products without advance notice.

  • Page 3: Preliminary Examination

    Preliminary Examination 1. PRELIMINARY EXAMINATION Remove the instrument and accessories from the packaging and examine it carefully. For further assistance, please contact your local Hanna Instruments office or e‑mail us at tech@hannainst.com. Each instrument is supplied with: • HI1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable •...

  • Page 4: General Description

    General Description 3. GENERAL DESCRIPTION The Hanna Instruments HI2210 HI2211 are microprocessor based pH and temperature bench meters. HI2211 can also be used for ion concentration (ISE) and Oxidation Reduction Potential (ORP) in the mV range. pH measurements are compensated for temperature effect manually or automatically with the...
  • Page 5 Operational Guide 5.2. Electrode And Probe Connections For pH or ORP combination electrode connect to the BNC connector on the back of the instrument. For electrodes with a separate reference connect the electrode’s BNC to the BNC connector and the reference electrode plug to the reference socket.

  • Page 6: Ph Calibration

    pH Calibration 5.5. ORP Measurements (HI2211 only) An optional ORP electrode must be used to perform ORP measurements (see Accessories). Oxidation‑reduction potential (REDOX) measurements provide the quantification of the oxidizing or reducing power of the tested sample. The surface of the ORP electrode must be clean and smooth in order to obtain an accurate measurement.
  • Page 7 pH Calibration 6.2. Procedure A two‑point calibration is recommended however a one‑point calibration will be permitted. Calibration can be performed using the five memorized buffers: pH 4.01, 6.86, 7.01, 9.18 and 10.01. 6.3. Two-Point Calibration • Submerse the pH electrode and the temperature probe approximately 3 cm (1 1/4") into a buffer solution and stir gently.

  • Page 8: Temperature Calibration

    7. TEMPERATURE CALIBRATION Note: for technical personnel only. All the instruments are factory calibrated for temperature. Hanna Instruments’ temperature probes are interchangeable and no temperature calibration is needed when they are replaced. If the temperature measurements are inaccurate, temperature recalibration should be performed.

  • Page 9: Ph Buffer Temperature Dependence

    pH Buffer Temperature Dependence 8. pH BUFFER TEMPERATURE DEPENDENCE The temperature has an effect on pH. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions. During calibration the instrument will automatically calibrate to the pH value corresponding to the measured or set temperature.

  • Page 10: Electrode Conditioning And Maintenance

    Electrode Conditioning and Maintenance 9. ELECTRODE CONDITIONING AND MAINTENANCE Reference Fill Hole Reference Fill Hole Reference Wire Reference Wire Sensing Wire Sensing Wire Reference Junction Reference Junction Glass Bulb Glass Bulb Plastic Body Glass Body pH Electrode pH Electrode Reference Wire Reference Wire Reference Junction Reference Junction...
  • Page 11 HI7082 HI8082 for double junction electrodes). Allow the electrode to stand upright for 1 hour. Follow the Storage Procedure. 9.5. Cleaning Procedure • General: Soak in Hanna Instruments HI7061 HI8061 General Cleaning Solution for approximately 1/2 hour. • Protein: Soak in Hanna Instruments...

  • Page 12: Troubleshooting Guide

    Troubleshooting Guide 10. TROUBLESHOOTING GUIDE Symptoms Problem Solution Slow response/excessive drift. Dirty pH electrode. Clean the electrode and then soak the tip in HI7061 or HI8061 for 30 minutes. Readings fluctuate up and Clogged/dirty junction. Low Clean the electrode. Refill with fresh down (noise).

  • Page 13: Temperature Correlation For Ph Sensitive Glass

    This interference is called alkaline error and causes the pH to be underestimated. Hanna Instruments’ glass formulations have the indicated characteristics. Sodium Ion Correction for Glass at 20-25 °C...

  • Page 14: Accessories

    Accessories 12. ACCESSORIES 12.1. pH Buffer Solutions HI70004P pH 4.01 buffer sachets, 20 mL, 25 pcs. pH 7.01 buffer sachets, 20 mL, 25 pcs. HI70007P HI70010P pH 10.01 buffer sachets, 20 mL, 25 pcs. HI7004L pH 4.01 buffer solution, 500 mL HI7006L pH 6.86 buffer solution, 500 mL HI7007L...
  • Page 15 Accessories 12.6. Electrodes All electrodes part numbers ending in B are supplied with BNC connectors and 1 m (3.3’) cable, as shown below: HI1043B Glass‑body, double junction, refillable, combination pH electrode. Use: strong acid/alkali. HI1053B Glass‑body, triple ceramic, conic shape, refillable, combination pH electrode. Use: emulsions. HI1083B Glass‑body, micro, Viscolene, non‑refillable, combination pH electrode.
  • Page 16 Accessories HI1230B Plastic‑body (PES), double junction, gel‑filled, combination pH electrode. Use: general, field. HI2031B Glass‑body, semimicro, conic, refillable, combination pH electrode. Use: semisolid products. HI1332B Plastic‑body (PES), double junction, refillable, combination pH electrode. Use: general purpose. FC100B Plastic‑body (PVDF), double junction, refillable, combination pH electrode. Use: general purpose for food industry.
  • Page 17 Accessories FC220B Glass‑body, triple‑ceramic, single junction, refillable, combination pH electrode. Use: food processing. FC911B Plastic‑body (PVDF), double junction, refillable with built‑in amplifier, combination pH electrode. Use: very high humidity. HI1413B Glass‑body, single junction, flat tip, Viscolene, non‑refillable, combination pH electrode. Use: surface measurement.
  • Page 18 Accessories 12.6.2. Extension Cables for Screw-Type Electrodes (Screw To BNC Adapter) HI7855/1 Extension cable 1m (3.3') long HI7855/3 Extension cable 3m (9.9') long HI7855/5 Extension cable 5m (16.5') long HI7855/10 Extension cable 10m (33') long HI7855/15 Extension cable 15m (49.5') long 12.6.3.

  • Page 19: Certification

    If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid.
