Summary of Contents for MPMan MP70HD
- Page 1 For Model No. Portable HD Video Player Instruction Manual MP70HD Please read carefully before use...
- Page 2  TableÂofÂContents  ThankÂYou ............................. 3 GeTTinGÂToÂknowÂYourÂPlaYer ....................5 GeTTinGÂSTarTed ......................... 11 PlaYinGÂMediaÂFileSÂ........................14 liSTeninGÂToÂFMÂradioÂ......................23 ConneCTinGÂToÂaÂCoMPuTer ....................24 ConneCTinGÂToÂaÂTVÂ........................2 SPeCiFiCaTionS ...........................28 MPManaGerÂ..........................29 TroubleShooTinGÂ&ÂSuPPorT ....................30 Page 2 Table Of Contents...
-
Page 3: Package Contents
 ThankÂYou  Congratulations on your purchase of the Video & MP3 player. This guide is provided to help you get started quickly with your player; please read it carefully and save it for future reference. Package Contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. - Page 4 Features ** Standard video: AVI/MPEG-4 (1080i) at the default volume. Experience video, music, photos, and text on a Standard audio: MP3 (128 kbps, 44.1 kHz at the high-resolution LCD screen default volume. Advanced processor supports a wide range of popular media formats ...
- Page 5  GettingÂtoÂknowÂYourÂPlayer  Name Icon Action Description Turn the player on or off. 1 Power/Play [POWER] Press & button hold Start, pause, or resume media [PLAY] Press playback. 2 Escape button [ESC] Press Return to the previous screen. Return to the Home screen. Press &...
- Page 6 Name Icon Action Description Increase the volume level. Volume Up [VOL +] Press button Press & Quickly increase the volume level. hold Volume Down [VOL –] Press Decrease the volume level. button Quickly decrease the volume level. Press & hold Connect to a TV or other display.
- Page 7 Name Description High-resolution display. 13 LCD screen 14 Remote sensor To use the remote control, point it at the sensor. The stereo speaker output is 15 Stereo speakers automatically disabled when a pair of headphones or earphones is con- nected to the player. Page 7 Getting To Know Your Player...
-
Page 8: Remote Control At A Glance
Remote Control at a Glance Name Action Description [HDMI Press Turn HDMI output on or off. OUT] [PLAY] Press Start, pause, or resume media playback. Increase the volume level. [VOL +] Press Decrease the volume level. [VOL –] Press [MENU] Press Display an option menu, if available. - Page 9 Using the Remote Control Installing a Battery in the Remote Control Point the remote at the remote sensor of the photo The remote control requires one “CR2025” battery. frame at a distance of no more than 10ft and at an To load a battery in the remote: angle no greater than 45 degrees.
-
Page 10: Inserting A Memory Card
ToÂreleaseÂandÂremoveÂaÂmemoryÂcard: Inserting a Memory Card 1. Push the card further into the slot until you hear This unit accepts microSD or microSDHC memory cards. a click. The card will spring out of the slot. Insert a memory card into the microSD card slot to: 2. -
Page 11: Charging The Player
 GettingÂStarted  Charging the Player The computer must be powered on and not in sleep mode in order to charge the battery. The player comes with a built-in rechargeable lithium-polymer battery. The player will not charge if it is connected to a low-power USB port. Low-power ports may Charge the battery fully before using it for the first be found on a peripheral device that is con- time. If the player has not been used in a while, the nected to the computer (e.g., a keyboard). -
Page 12: Home Screen At A Glance

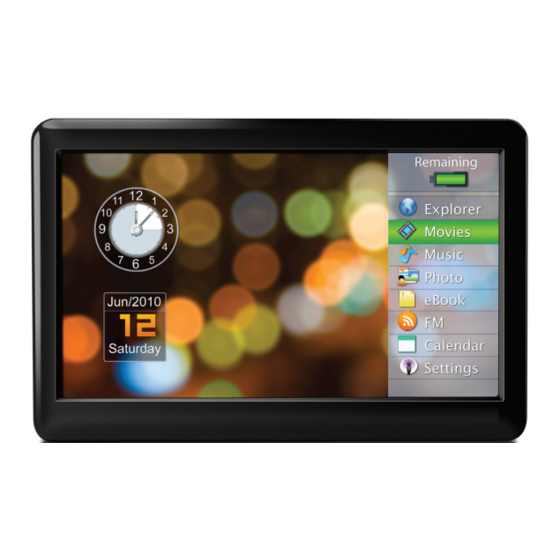

Home Screen at a Glance The battery used in this device may present a fire or chemical burn if mistreated. Do not When you turn the player on, you will see the Home disassemble, incinerate, or heat the battery. screen. Do not leave the battery in a place subject to direct sunlight, or in a car with its windows Remaining Remaining closed. Do not connect the player to a pow- er source other than that which is indicated Explorer Explorer here or on the label as this may result in the Movies Movies risk of fire or electric shock. Music Music Photo Photo eBook eBook Jun/2011 Turning the Player On/Off Calendar Calendar Saturday... - Page 13 1. Clock The time can be adjusted in Calendar Find and play all files on the player. mode. Find and play movie files on the 2. Date The date can be adjusted in Calendar player. mode. Find and play music files on the 3.
-
Page 14: Movie Mode
 PlayingÂMediaÂFiles  Your player supports playback of movie, music, Browsing video 10:15 photo and text files stored on the player’s internal Local disk memory or on a microSD card. SD card To learn how to transfer files onto your play- er, please refer to the section Connecting to a Computer. Movie Mode Select “Movie” from the Home screen to find and play movie files. - Page 15 ToÂbrowseÂfiles: will be given a choice to “Play from break- point”. Select YES to play the movie from Browsing video 10:15 where you stopped last.) test.rmvb winnower.rmvb Press [ESC] to return to the previous screen. abc.avi abc(2).avi whenÂyourÂmovieÂfileÂhasÂstartedÂplaying: Movie 10:15 ...
- Page 16 Press [PLAY] to pause playback; press [PLAY] Option Description again to resume playback. Adjust the screen brightness. Press [ESC] to stop playback and return to the file browser. Change the video display format. Press [MENU] to access the movie options Change the repeat mode.
-
Page 17: Music Mode
Music Mode Select “medialib” to find music stored on the player’s internal memory by category (e.g., Select “Music” from the Home screen to find and Artist, Album, Genre, Star, Year, or All music). play music files. Browsing music 10:15 The player will launch a file browser. - Page 18 Select “Last Played” to play the last song that Press [MENU] to select an item. was played. (This option is only available if you — Select a folder to view its contents. have previously played a song.) (If the selected folder does not contain any ...
- Page 19 Press and hold [PREV] or [NEXT] to quickly scan Option Description through the file. Change the visualizer mode. (Lyric mode requires a file that supports Press [PLAY] to pause playback; press [PLAY] lyrics. If a lyric track is not found, the again to resume playback.
-
Page 20: Photo Mode
ToÂbrowseÂfiles: Photo Mode Browsing photo 10:15 Select “Photo” from the Home screen to find and flower1.jpg display photo files. flower2.jpg The player will launch a file browser. Only photo flower3.jpg files will be displayed. flower3.jpg flower3.jpg Browsing photo 10:15 sport.gif Local disk SD card ... - Page 21 whenÂyourÂphotoÂfileÂisÂdisplayed: Option Description Press [NEXT] to skip to the next file; press [PREV] View detailed file information. to skip to the previous file. Press [PLAY] to turn start or stop slideshow View photo thumbnails. mode. (Controls are limited to [PLAY] and [ESC] while a slideshow is playing.) Select a music file to play while viewing your photos.
- Page 22  listeningÂtoÂFMÂradio  Select “FM” from the Home screen to listen to FM To get started listening to the radio quickly: radio broadcasts. 1. Select “FM” from the Home screen. The FM radio will launch. 10:15 2. Press [Menu] to access the FM options menu. 3.
- Page 23 For precise tuning, change the tuning method to “Manual” mode. 1. Press [Menu] to access the FM options menu. 2. Press [MENU] to select “Manual” mode. 3. Press [ESC] to exit the FM options menu. 4. Press [PREV] or [NEXT] to tune to a station. Page 23 Listening To Fm Radio...
- Page 24  ConnectingÂtoÂaÂComputer  Connect the player to a computer to transfer files to — When the player is connected and charging, the player. the notice “USB connecting” will be dis- played its screen. The player’s battery will be charged when it is —...
- Page 25 If your computer is running the Windows operating system, it might display an “Auto- play” screen when connected. Click “Open device to view files using Windows Explorer” to start managing files on your player. You can press and hold [ESC] after the player is connected to cancel the data connection and switch to USB power mode. This will al- low you to use the player while drawing pow- er from the computer. Page 25 Connecting To A Computer...
- Page 26 Â ConnectingÂtoÂaÂTV Â 2. Select Output to show the Output settings. Connect the player to a TV to enjoy your player in the comfort of your living room. Use an HDMI cable — Check HDMI_1080P if your TV is capable of to connect the player to a TV.
- Page 27 When you are done, simply disconnect the HDMI cable and output will return to the player’s LCD screen. Alternately, you may set the Output option to LCD in the settings menu. Page 27 Connecting To A Tv...
-
Page 28: Specifications
 Specifications  Design, specifications, and manual are subject to change without notice. Memory File System Internal flash memory FAT32 Support microSD card slot (max. NTFS 16GB supported) OS Support Microsoft Windows 7 Display 7.0” TFT LCD (800 x 480) Microsoft Windows Vista Microsoft Windows XP Play Modes... - Page 29  Mpmanager  For Video and music synchronisation and conversion, please use MPMANAGER software supplied in the CD ROM. This software can be used also for UPDATE of your player MPMANAGER manual is included in your CDROM. Page 29 Mpmanager...
- Page 30  TroubleshootingÂ&ÂSupport  If you have a problem with this device, please check the troubleshooting instructions below. TheÂplayerÂdoesÂnotÂturnÂon. Ensure that the player is fully charged. Try charging the player overnight (8 hours). Reset the player. Press and hold [POWER] for several seconds to turn it off. Wait a few seconds, then turn the player on again.
- Page 31 TheÂlCdÂcharactersÂareÂcorruptedÂor Ensure that the headphones are attached somethingÂisÂwrongÂwithÂtheÂdisplay. securely to the player. Ensure that the correct menu language has TheÂsoundÂqualityÂofÂtheÂmusicÂisÂpoor. been set. Try playing the file on your computer. If the Reset the player. Press and hold [POWER] for sound quality is still poor, try downloading the several seconds to turn it off.
- Page 32 ForÂmoreÂinformationÂpleaseÂcheckÂourÂwebsite www.mpmaneurope.com...
