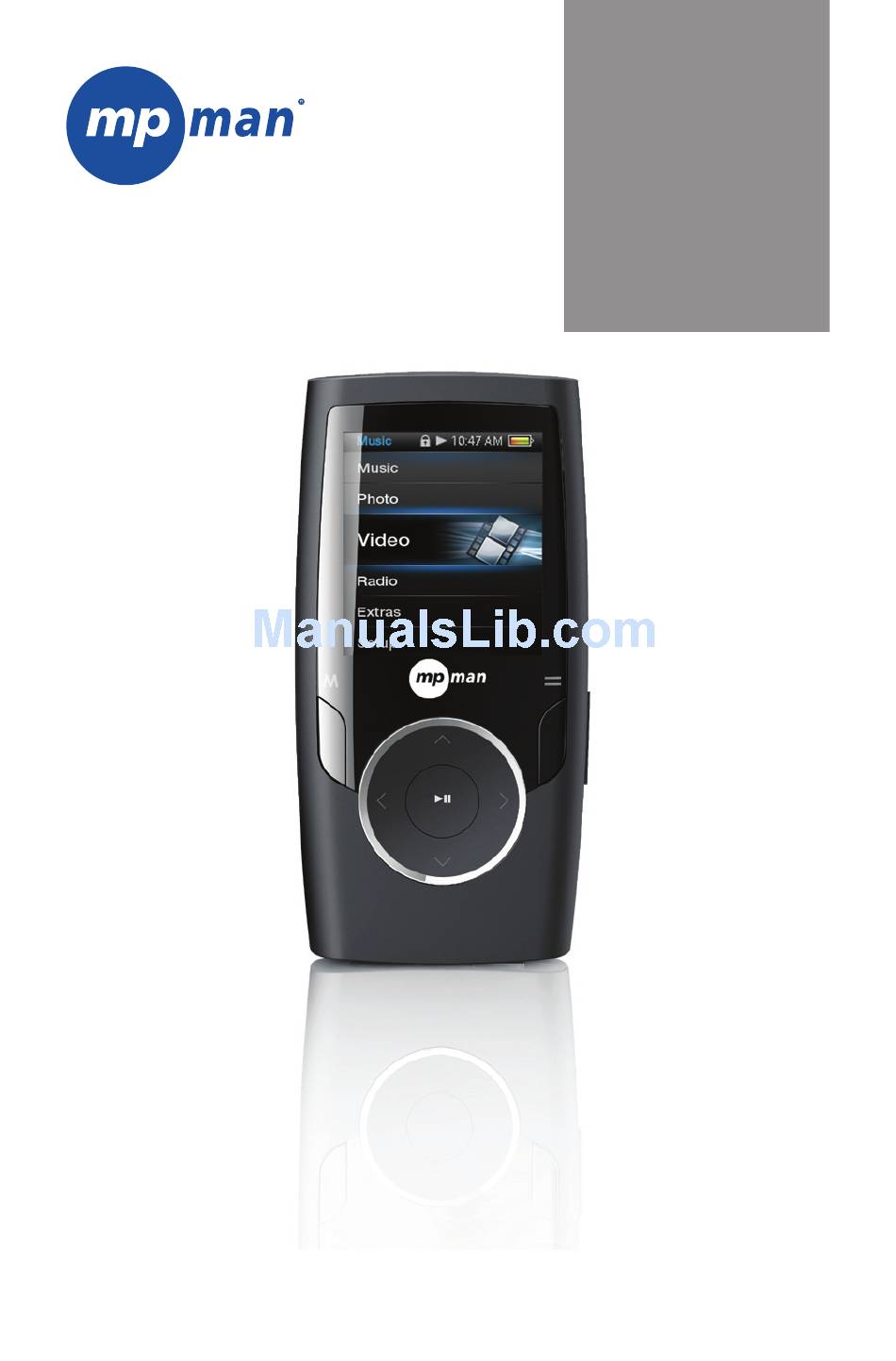

Page 1: Instruction Manual
MP142AI MP3 & Video Player with FM Radio Instruction Manual Please read this manual carefully before operation... -
Page 2: Table Of Contents
Table of Contents Table oF ConTenTs ..........2 PaCkage ConTenTs ..........4 FeaTuRes ..............5 ConTRols aT a glanCe ........6 Disabling the Controls ...........7 geTTIng sTaRTed ........... 8 Charging the Battery ..........8 Charging with a Computer ......8 Turning the Player On/Off ........8 Resetting the Player ..........9 MaIn Menu ............ - Page 3 Table of Contents ReCoRd Mode ............. 26 Voice Playing Controls ........26 Quick Option Menu ..........26 exPloReR Mode ..........29 Explorer Controls ..........29 seTuP Mode ............30 TRansFeRRIng FIles To The PlayeR ....32 Transferring with Microsoft Windows ....33 Transferring with Macintosh OS X .......33 Disconnecting from a Computer ......34 Microsoft Windows ........34 Macintosh OS X ..........35...
-
Page 4: Package Contents
Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. MP142AI USB Cable Instruction Manual & Documentation Professional Stereo Earphones Installation CD... -
Page 5: Features
Features Integrated flash memory 1.5” LCD full-color display Plays music, video, photos and text ID3 and LRC support for song and synchro- nized lyric information display Integrated Microphone for Digital Voice Recording Integrated FM Radio and Recorder ... -
Page 6: Controls At A Glance
Controls at a glance Reset Page 6... -
Page 7: Disabling The Controls

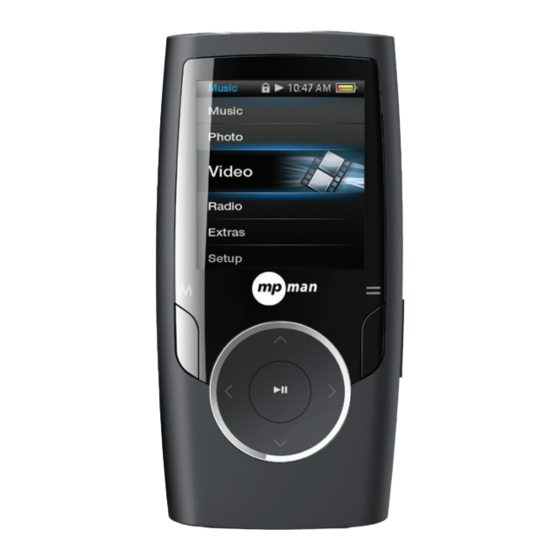

Controls at a glance Front View LCD Display Menu Button <MENU> <UP> <DOWN> Control Buttons <LEFT> <RIGHT> Enter Button <ENTER> Option Button <OPTION> Side View Power/Hold Switch Slide and hold the switch <POWER> down for Power, slide it up for Hold. -
Page 8: Getting Started
getting started Charging the battery Your player has an integrated rechargeable battery. Upon initial use, the battery should be charged fully to ensure optimal performance and battery life. If the player has not been used in a while, the battery may need to be recharged overnight (about 8 hours). -
Page 9: Turning The Player On/Off
getting started ure to do so may case a fire or damage the player. Turning the Player on/off To turn the player on, slide and hold the <POWER> switch down until the screen turns on. To turn the player off, slide and hold the ... -
Page 10: Main Menu
Main Menu When you turn on the player, you will see the Main menu. The Main menu gives you access to the differ- ent function modes of your player. These modes are: Music: Browse and play music. Photo: Browse and view Photos. Video: Browse and play Videos. -
Page 11: Music Mode
Music Mode Browse for and play your music files. If you have loaded new music files onto the player, the music library will need to be refreshed when you enter Music mode. This process may take several minutes. You will not be able to access the Music Browser screen until you refresh the music library. - Page 12 Music Mode If your music files contain ID3 song information tags, you will be able to view your tracks by Artist, Album, or Genre. To view all files (including those that do not contain ID3 information), select “All Songs” or use the “Browser”...
-
Page 13: Now Playing Controls (Music Playback)
Music Mode now Playing Controls (Music Playback) To start playing music, browse for a song and then press <ENTER> to start playback. When a song is playing, the Now Playing screen appears (see below). Play Status Lock Icon Equalizer Battery Level Repeat Mode Album Cover Information... -
Page 14: Quick Option Menu
Music Mode The following functions may be performed from the Now Playing screen. Function Key Action To play the next track Press <RIGHT> To play the previous track Press <LEFT> To forward-scan quickly through the Hold <RIGHT> current track To reverse-scan quickly through the Hold <LEFT>... - Page 15 Music Mode Equalizer Select a digital equalizer preset to optimize the way the player processes audio signals. The options are: Normal, Pop, Rock, Classic, Jazz, and Bass. Repeat Change the repeat options to adjust the order in which tracks are played. Item Description No Repeat...
-
Page 16: Photo Mode
Photo Mode Browse for and view your photo files (JPG and BMP). For more information about how to get Photos onto your player, please refer to the section “Transferring Files to the Player”. Photo browser Controls When you choose PhotoS mode from the Main menu, you will see the Photo Browser screen. -
Page 17: Photo Viewer Controls
Photo Mode Function Key Action To return to the Main menu Hold <MENU> Photo Viewer Controls To view a Photo, browse through the thumbnail Photos and then press <ENTER>. The following functions may be performed from the Photo Viewer screen. Function Key Action To view the next Photo... -
Page 18: Video Mode
Video Mode Browse for and play your Video files. Your player supports MTV files encoded at 128 x 128 and 25 fps. Videos may need to be encoded with the included software for device playback. For more information about converting video, please refer to the section “Video Conversion”. -
Page 19: Video Playback Controls
Video Mode Function Key Action To play the next Video Press <RIGHT> To play the previous Video Press <LEFT> To forward-scan quickly through the Hold <RIGHT> current Video To reverse-scan quickly through the Hold <LEFT> current Video To pause/resume playback Press <ENTER>... -
Page 20: Radio Mode
Radio Mode Listen to FM radio broadcasts. You must have a pair of headphones connected to the headphone jack to receive FM broadcasts; your player will utilize the headphone cord as an antenna. Radio Tuning Controls When you choose RADIO from the Main menu, you will see the Radio Tuning screen. - Page 21 Radio Mode Function Key Action Press <UP> or To adjust the volume level <DOWN> To return to the Main menu Hold <MENU> Quick Option Menu To access the quick option menu, press <OPTION> on the Radio screen. To browse through the settings, press <UP> or ...
- Page 22 Radio Mode Sensitivity Set the sensitivity of Auto-Scan feature. Auto Presetting Scan for all stations in broadcast reception range. The player will automatically seek and save all frequencies with a broadcast signal to the Preset Station list. The auto scan feature will overwrite any previously stored Preset Stations.
-
Page 23: Text Mode
Text Mode Read text files loaded on your player (TXT). For more information about how to get text files onto your player, please refer to the section “Transferring Files to the Player”. Text browser Controls When you choose Text from the Main menu, you will see the Text Browser Screen. - Page 24 Text Mode Function Key Action To read the next page Press <DOWN> To read the previous page Press <UP> To toggle the auto-scroll function Press <ENTER> To return to the Text Browser screen Press <MENU> To return to the Main menu Hold <MENU>...
- Page 25 Text Mode The player will display the previous bookmark(s) after you confirm Bookmark from the Quick Option menu. Press <UP> or <DOWN> to display the desired bookmark, then press <ENTER>: Save Bookmark: Save the current location — as a bookmark. Load Bookmark: Open (go to) the desired —...
-
Page 26: Record Mode
Record Mode Play your digital voice recording files or record sounds from external audio sources. Voice Playing Controls The following functions may be performed from the Voice Playing screen. Function Key Action To play the next track Press <RIGHT> To play the previous track Press <LEFT>... - Page 27 Record Mode To browse through the settings, press <UP> or <DOWN> To select a setting, press <ENTER> To return to the previous screen, press <LEFT> Repeat Change the repeat options to adjust the order in which tracks are played. Item Description No Repeat...
- Page 28 Record Mode Press <ENTER> to pause recording; press <ENTER> again to resume recording. Press <MENU> to stop and save the recording. The recorded file will be saved to the folder “MICIN.DIR” and named “MICXXXX.WAV” where XXXX corresponds to the numerical sequence in which the recording was made (numbering starts from 0001).
-
Page 29: Explorer Mode
explorer Mode Enter Explorer mode to view and delete folders and files loaded on your player. To enter Explorer mode, select and confirm EXPLORER from the Main Menu. explorer Controls When you choose EXPLORER mode from the Main menu, you will see the File Explorer screen. You can find and delete files or folders from the player. -
Page 30: Setup Mode
setup Mode Enter the Setup mode to set your player’s system options. To enter Settings mode, select SETUP in the Main menu. Function Key Action Press <UP> or To browse through the options <DOWN> To select an item Press <ENTER> To cancel and return to the previous Press <MENU>... - Page 31 setup Mode Item Description Sleep Set a sleep timer to turn the player off automatically. Language Set the language that the on-screen menus appear in. Sys Tools Format It may become necessary to format your player if data or files become corrupt. You may choose either Quick or Complete formatting.
-
Page 32: Transferring Files To The Player
Transferring Files to the Player Connect the player to a computer with the USB 2.0 cable provided to: Transfer files to and from your player Perform basic file management functions. USB Port USB Port Computer Upon connection: Your computer will automatically recognize the ... -
Page 33: Transferring With Microsoft Windows
CTRL-C (copy) on the keyboard. Double-click the “My Computer” icon on your desktop and then double-click the icon that represents your player (e.g., MP142AI / Remov- able Disk). The computer will display all files and folders currently stored in the player. -
Page 34: Disconnecting From A Computer
Transferring Files to the Player Press APPLE-V (paste) on the keyboard to trans- fer the files you selected in Step 1 to the player. disconnecting from a Computer To avoid data loss or file/firmware corruption, dis- connect the player as instructed below or as by your specific operating system. -
Page 35: Macintosh Os X
Transferring Files to the Player Macintosh OS X On the left side of the Finder Window, identify the appropriate Removable Disk icon. Click on the “Eject” ar- row on the right of the Removable Disk icon. Disconnect the USB cable from the player and your computer. -
Page 36: Video Conversion
Video Conversion For Video and music synchronisation and conver- sion, please use MPMANAGER software supplied in the CD ROM. This software can be used also for UPDATE of your player MPMANAGER manual is included in your CDROM Page 36... -
Page 37: Troubleshooting
Troubleshooting If you have a problem with this device, please read the troubleshooting guide below. The player does not turn on. Ensure that the player is fully charged. Try charging the player overnight (8 hours). Reset the player (use a paper clip to gently ... - Page 38 Troubleshooting Check the volume level. Ensure that the headphones are attached securely to the player. The sound quality of the music is poor. Try playing the file on your computer. If the sound quality is still poor, try downloading the file again or re-encoding the file yourself.
- Page 39 Troubleshooting Reset the player (use a paper clip to gently press the Reset button on the rear of the player) and try again. The player has malfunctioned. Reset the player (use a paper clip to gently press the Reset button on the rear of the player) and try again.
-
Page 40: Specifications
Specifications Display Type 1.5” Full-Color LCD @ 128x128 Memory MP142AI FM 2GB: 2GB Flash MP142AI FM 4GB: 4GB Flash MP142AI FM 8GB: 8GB Flash Audio Format Support MP3, WMA Video Format Support MTV: 128x128, 25fps Photo Format Support JPG, BMP... - Page 41 Page 41...
- Page 42 For more information please check our website www.mpmaneurope.com...
