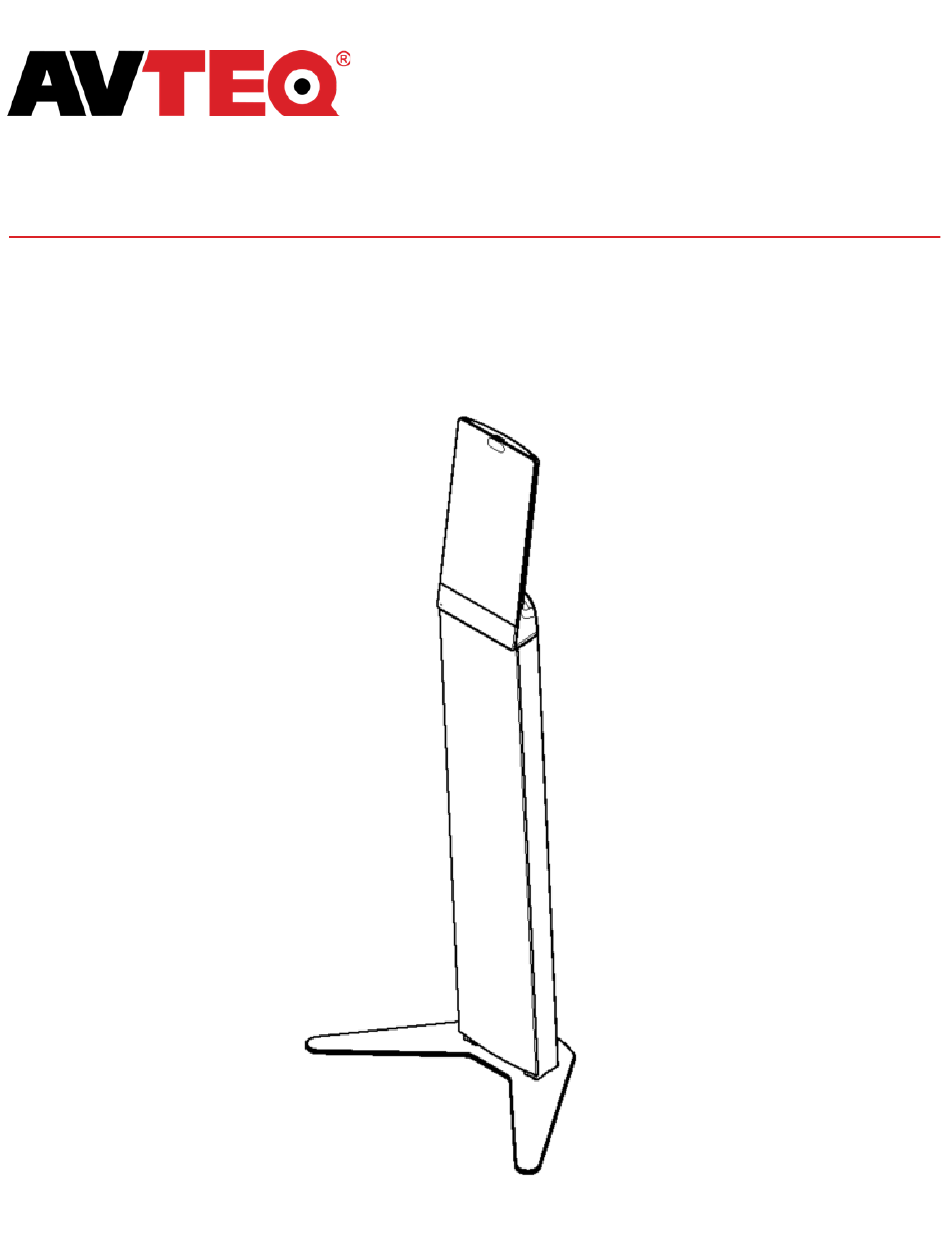

- Page 1 Install Guide Neat Frame Floor Stand NEATFRAME-STAND...
- Page 2 PACKAGE CONTENTS Included with Neat Frame Floor Stand: A. Base plate [x1] D. 1/4-20 3/8” screw [x1] B. Body column [x1] E. Socket M6x1.0 10mm long screw [x2] C. Rear cover [x1] F. Flat 3/8-16 1.25” screw [x3] avteqinc.com | 2...
- Page 3 STEP 1 Secure base to body column • Place body column (B) on top of the base plate (A) and screw it on from the bottom of the base plate with [x3] flat headed 3/8-16 1.25” screws (F). (Body Column) (Bottom of the Base Plate) STEP 2 Secure the Neat Frame...
- Page 4 STEP 3 Secure rear cover to the body column • Place the rear cover (C) behind the body column (B). • Secure the rear cover using a wrench and [x2] socket M6x1.0 10mm screws (E) and screw into the two top holes of the rear cover. (Screw from behind the rear cover) (Top holes of the rear cover)
