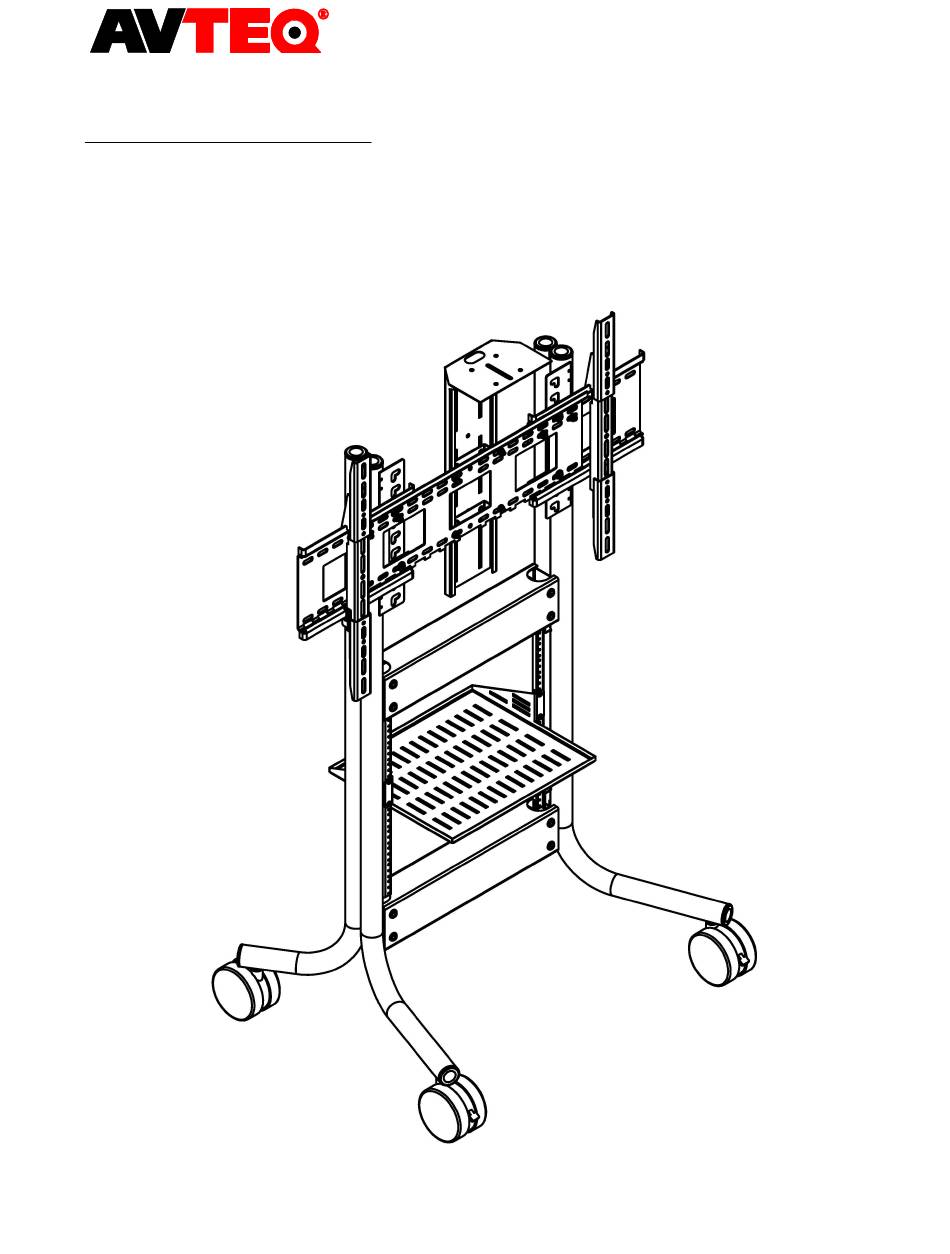

- Page 1 EASY SETUP GUIDE RPS-500 S/L/BASIC RPS-500 CSB55/CSB70...
- Page 2 Attach the unions C to the first Leg A by sliding each into the place. Secure with the washers E Attach casters B. and screws The caster with break in the front, the caster without break in the back AVTEQ.net 800-285-8315...
- Page 3 A to the rack rails with with the washers E rack screw G and screws Install the display mount H to the cart legs A using the UM Kit I RPS-500-CSB55/70 and RPS-500-BASIC assembly instructions end here. AVTEQ.net 800-285-8315...
- Page 4 Attach Bracket J to Display Mount H using 4 screws K and 4 washers L Attach camera extention M to braket J using 4 screws K, 8 washers L and 4 nuts M AVTEQ.net 800-285-8315...
