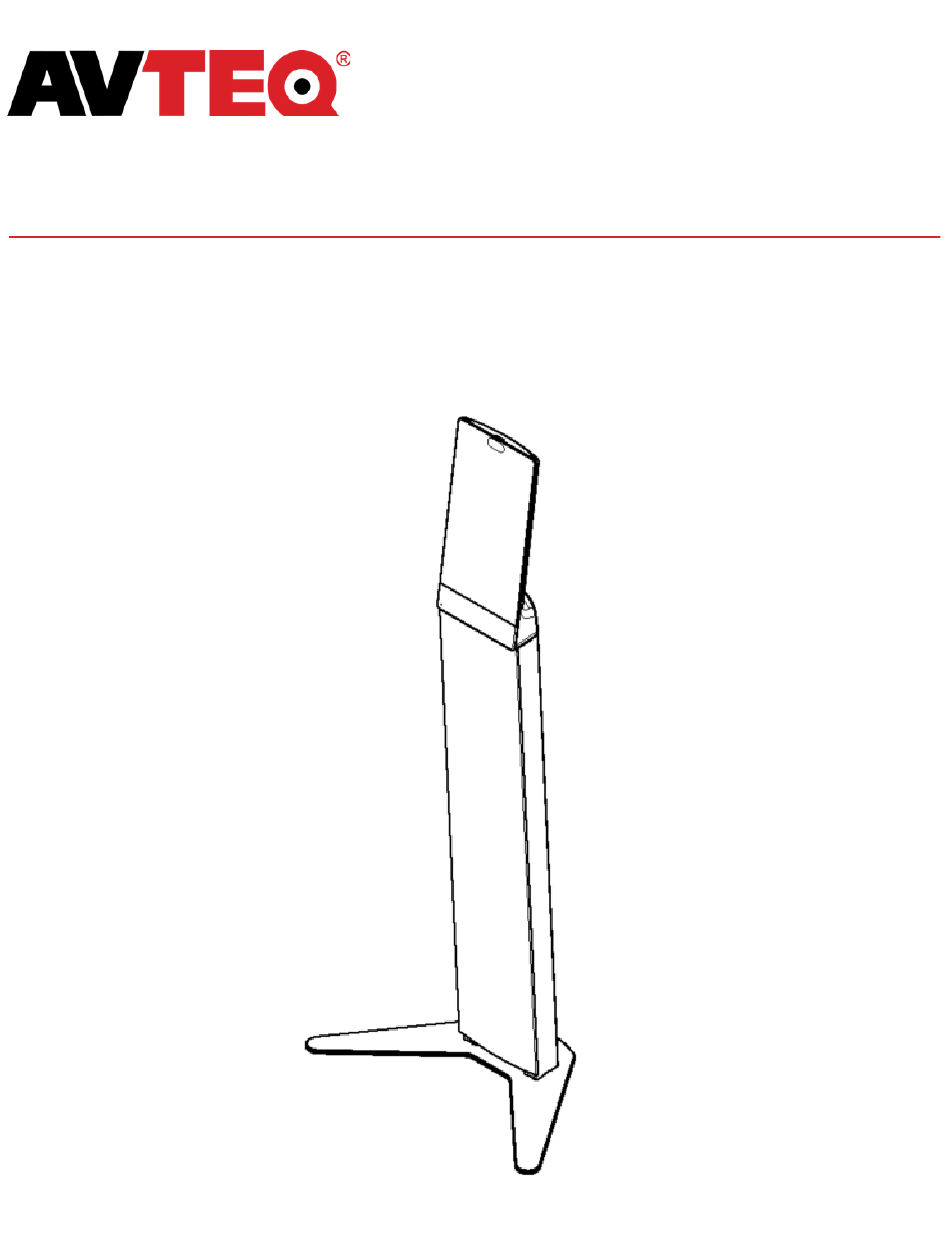

- Page 1 Install Guide Neat Frame Floor Stand NEATFRAME-STAND...
- Page 2 PACKAGE CONTENTS Included with Neat Frame Floor Stand: A. Base plate [x1] F. Round 1/4-20 1/2” screw [x6] B. Body column [x1] G. Flat 1/4-20 1/2” screw [x1] C. Front cover [x1] H. Socket M6x1.0 10mm long screw [x2] D. Rear cover [x1] I.
- Page 3 STEP 1 Secure base to body column • Place body column (B) on top of the base plate (A) and screw it on from the bottom of the base plate with [x3] flat headed 3/8-16 1.25” screws (I). (Body Column) (Bottom of the Base Plate) STEP 2 Secure front cover to body column...
- Page 4 STEP 3 Secure the Neat Frame • Place the Neat Frame on top of the body column (B). • Secure the Neat Frame with a [x1] flat 1/4-20 1/2” screw (G). Screw from the bottom into the top inner hole of the body column. (Neat Frame, back view) (Screw from the bottom into the top inner hole of the body...
