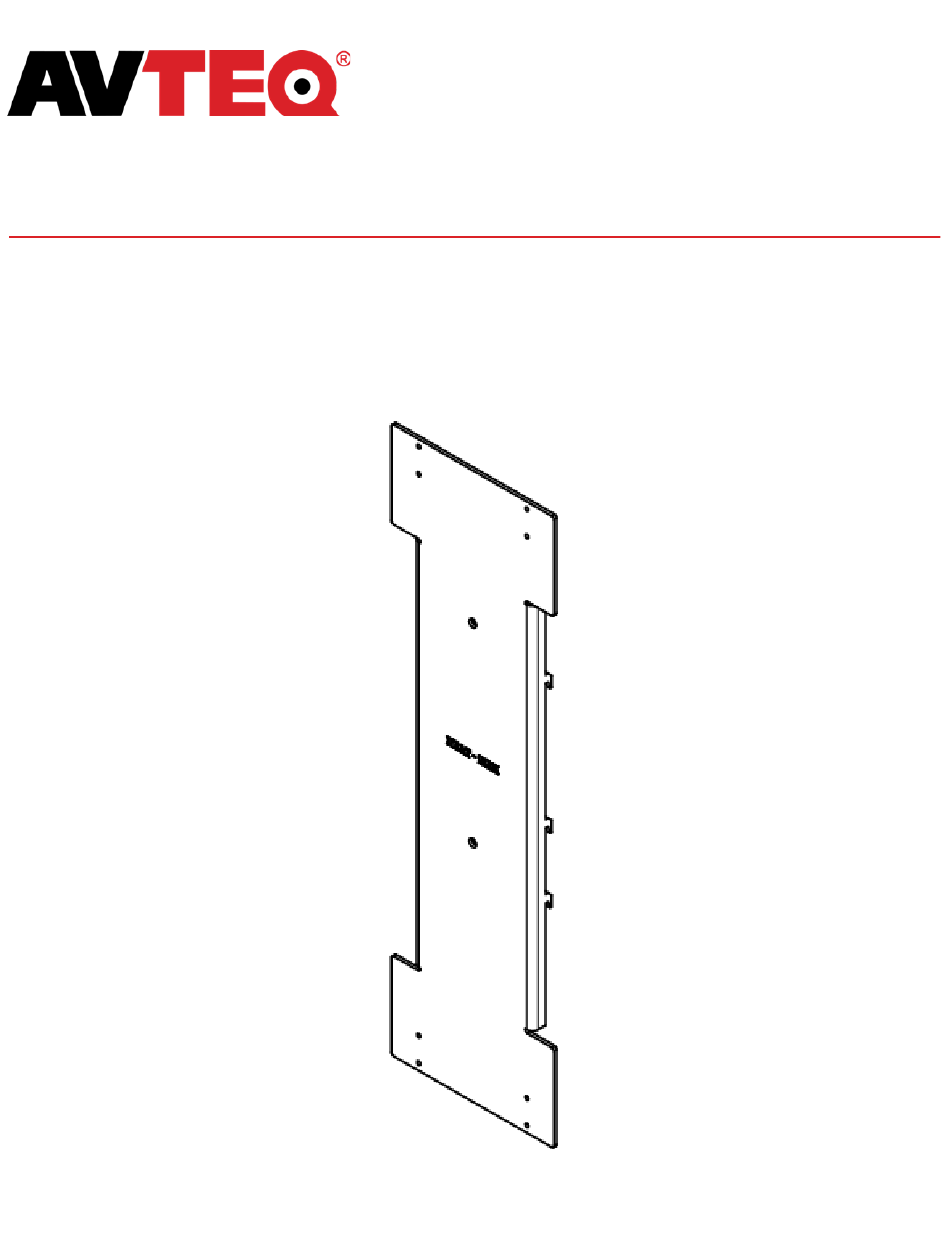

  • Page 1 Install Guide Neat Bar Mount (NEAT-BRK)
  • Page 2 PACKAGE CONTENTS Neat Bar Mount installation requires an Avteq display mount (UM-1 or UM-2 included with Avteq carts, stands, and credenzas) and the Neat Bar Wall Mount/Mount Adapter (included with Neat Bar camera). Please refer to the Neat Bar Camera’s user manual for more information.
  • Page 3 • To Position Below Display: Attach Neat provided wall mount to the bottom front of Avteq’s Neat Bar Bracket Mount. Slide Avteq’s bracket mount into the channel so that the bottom 4 thread holes line up with the 4 beveled holes in the Neat wall mount.
  • Page 4 Above Display: Below Display: STEP 3 Attach Neat Bar camera to wall mount • Slide Neat Bar camera to the wall mount for it to hook and attach to the base of the camera. avteqinc.com | 4...
  • Page 5 STEP 4 Secure bracket (NEAT-BRK) • Hang the NEAT-BRK on the camera spine at the desired height with its hooks to mount the camera either above or below the display. • Lock in position using a 1/4-20 screw [x1]. Insert in open hole from behind the mount.
