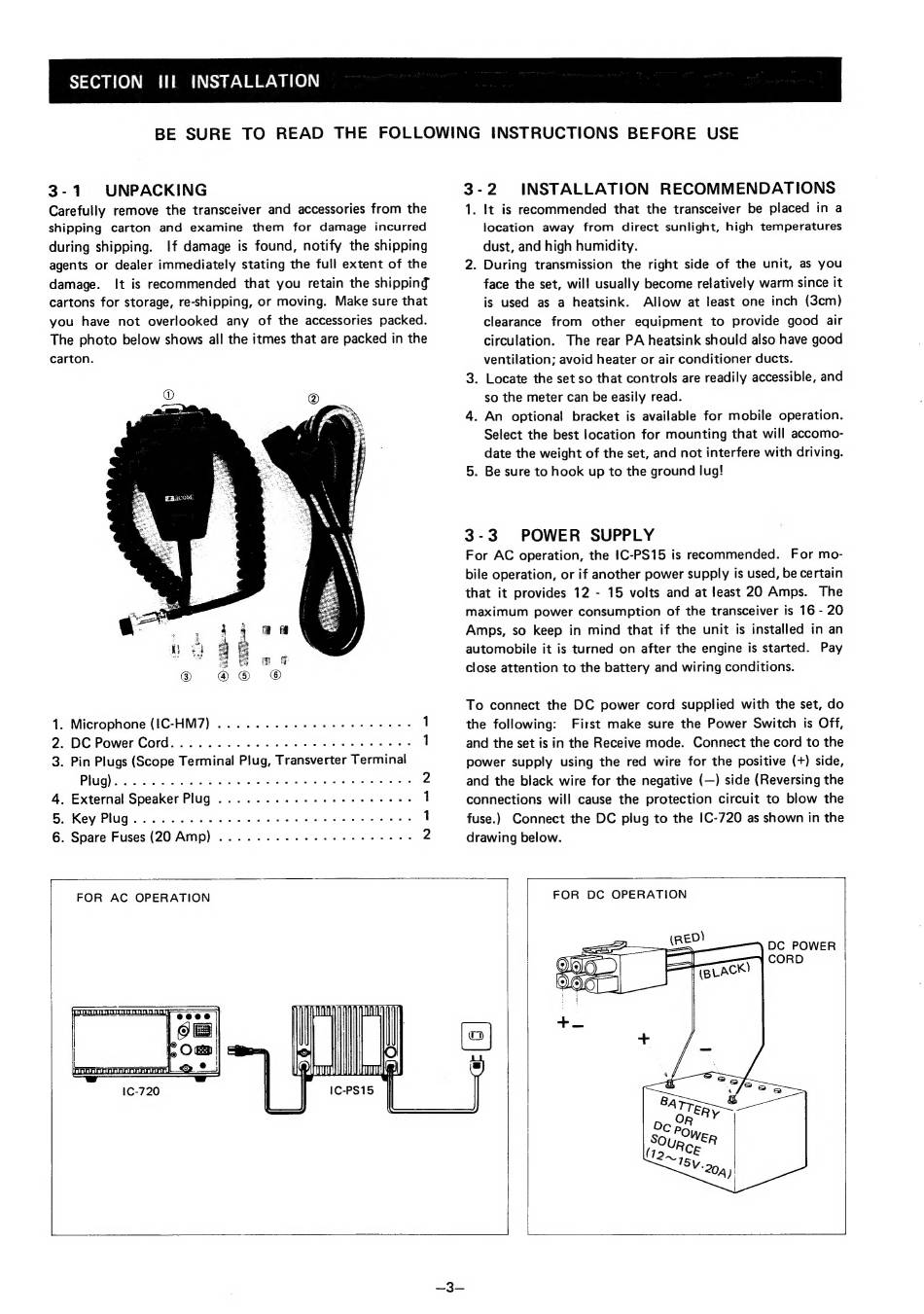

SECTION HI INSTALLATION
BE SURE TO READ THE FOLLOWING INSTRUCTIONS BEFORE USE
3-1 UNPACKING
Carefully remove the transceiver and accessories from the
shipping carton and examine them for damage incurred
during shipping. If damage is found, notify the shipping
agents or dealer immediately stating the full extent of the
damage. It is recommended that you retain the shipping
cartons for storage, re-shipping, or moving. Make sure that
you have not overlooked any of the accessories packed.
The photo below shows all the itmes that are packed in the
carton.
тйс
1. Microphone (ІС-НМ?)..................... 1
2. DC Power Согй.......................... 1
3. Pin Plugs (Scope Terminal Plug, Transverter Terminal
PIGG) соч vee ee oe bbe Soe ees 2
4. External Speaker Plug .....................
1
Б. Rey Рад з es eet ee шк SES ЖЕЗ 1
6. Spare Fuses (20 Атр).....................
2
--
3-2 INSTALLATION RECOMMENDATIONS
1. It is recommended that the transceiver be placed in a
location away from direct sunlight, high temperatures
dust, and high humidity.
2. During transmission the right side of the unit, as you
face the set, will usually become relatively warm since it
is used as a heatsink. Allow at least one inch (3cm)
clearance from other equipment to provide good air
circulation. The rear PA heatsink should also have good
ventilation; avoid heater or air conditioner ducts.
3. Locate the set so that controls are readily accessible, and
so the meter can be easily read.
4. An optional bracket is available for mobile operation.
Select the best location for mounting that will accomo-
date the weight of the set, and not interfere with driving.
5. Be sure to hook up to the ground lug!
3-3 РОМЕН SUPPLY
For AC operation, the ІС-Р515 is recommended. For mo-
bile operation, or if another power supply is used, be certain
that it provides 12 - 15 volts and at least 20 Amps. The
maximum power consumption of the transceiver is 16 - 20
Amps, so keep in mind that if the unit is installed in an
automobile it is turned on after the engine is started. Pay
close attention to the battery and wiring conditions.
To connect the DC power cord supplied with the set, do
the following: First make sure the Power Switch is Off,
and the set is in the Receive mode. Connect the cord to the
power supply using the red wire for the positive (+) side,
and the black wire for the negative (—) side (Reversing the
connections will cause the protection circuit to blow the
fuse.) Connect the DC plug to the IC-720 as shown in the
drawing below.
FOR AC OPERATION
FOR DC OPERATION
DC POWER
CORD
Gn)
(е)
251"
