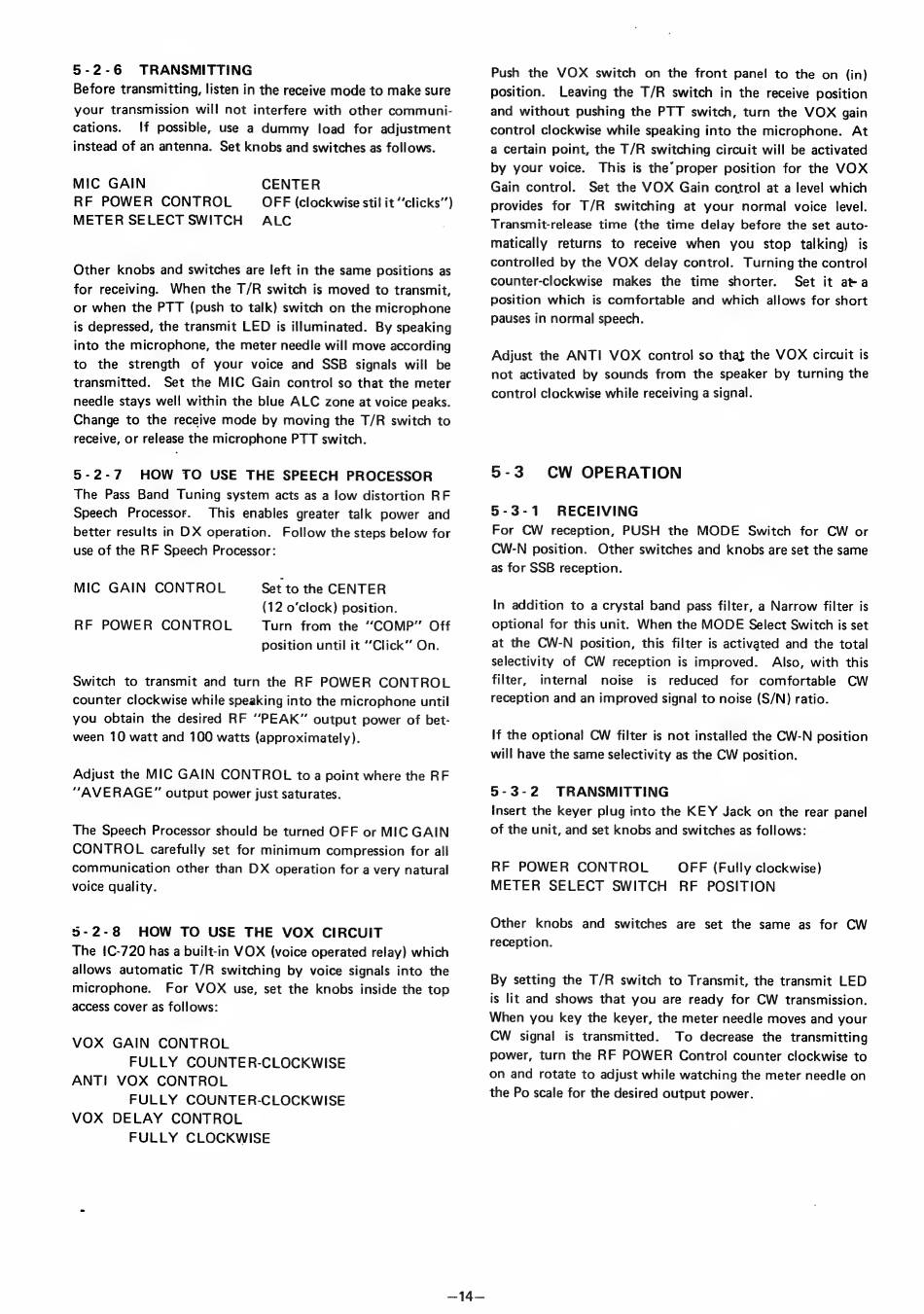

5-2-6
TRANSMITTING
Before transmitting, listen in the receive mode to make sure
your transmission will not interfere with other communi-
cations.
If possible, use
a dummy
load for adjustment
instead of an antenna. Set knobs and switches as follows.
МІС GAIN
CENTER
RF POWER
CONTROL
OFF (clockwise stil it ''clicks"')
METER SELECT SWITCH
ALC
Other knobs and switches are left in the same positions as
for receiving.
When the T/R switch is moved to transmit,
or when the PTT (push to talk) switch on the microphone
is depressed, the transmit LED is illuminated.
By speaking
into the microphone, the meter needle will move according
to
the
strength
of your voice and SSB
signals will be
transmitted.
Set the MIC Gain control so that the meter
needle stays well within the blue ALC zone at voice peaks.
Change to the receive mode by moving the T/R switch to
receive, or release the microphone PTT switch.
5-2-7
HOW
TO
USE
THE
SPEECH
PROCESSOR
The
Pass Band
Tuning system acts as a low distortion RF
Speech
Processor.
This enables greater talk power
and
better results in DX operation.
Follow the steps below for
use of the RF Speech Processor:
Set to the CENTER
(12 o'clock) position.
Turn
from the "СОМР"
Off
position until it "Click" Оп.
MIC GAIN
CONTROL
RF POWER
CONTROL
Switch
to transmit and turn the RF POWER
CONTROL
counter clockwise while speaking into the microphone until
you obtain the desired RF "PEAK" output power of bet-
ween 10 watt and 100 watts (approximately).
Adjust the MIC GAIN CONTROL
to a point where the RF
"AVERAGE" output power just saturates.
The Speech Processor should be turned OFF or MIC GAIN
CONTROL
carefully set for minimum
compression for all
communication
other than DX operation for a very natural
voice quality.
5-2-8
HOW
TO USE
THE
VOX
CIRCUIT
The ІС-720 has a built-in VOX (voice operated relay) which
allows automatic T/R switching by voice signals into the
microphone.
For VOX
use, set the knobs inside the top
access cover as follows:
VOX
GAIN
CONTROL
FULLY
COUNTER-CLOCKWISE
ANTI
VOX
CONTROL
FULLY
COUNTER-CLOCKWISE
VOX
DELAY
CONTROL
FULLY
CLOCKWISE
—14—
Push
the VOX
switch
on the front panel to the on (їп)
position.
Leaving the T/R switch in the receive position
and without pushing the PTT switch, turn the VOX gain
control clockwise while speaking into the microphone.
At
a certain point, the T/R switching circuit will be activated
by your voice.
This is the' proper position for the VOX
Gain control.
Set the VOX Gain control at a level which
provides
for T/R
switching
at your
normal
voice
level.
Transmit-release
time (the time delay before the set auto-
matically
returns
to receive when
you
stop talking)
is
controlled by the VOX
delay control.
Turning the control
counter-clockwise
makes
the time
shorter.
Set it ata
position which
is comfortable
and which
allows for short
pauses in normal speech.
Adjust the ANTI
VOX
control so Шар the VOX circuit is
not activated by sounds from the speaker by turning the
control clockwise while receiving a signal.
5-3
CW OPERATION
5-3-1
RECEIVING
For CW
reception,
PUSH
the MODE
Switch
for CW or
CW-N position.
Other switches and knobs are set the same
as for SSB reception.
In addition to a crystal band pass filter,
a Narrow filter is
optional for this unit. When the MODE Select Switch is set
at the CW-N
position, this filter is activated and the total
selectivity
of CW
reception is improved.
Also, with this
filter,
internal
noise
is reduced
for
comfortable
CW
reception and an improved signal to noise (S/N) ratio.
If the optional CW filter is not installed the CW-N position
will have the same selectivity as the CW position.
5-3-2
TRANSMITTING
Insert the keyer plug into the KEY Jack on the rear panel
of the unit, and set knobs and switches as follows:
RF POWER
CONTROL
OFF (Fully clockwise)
METER
SELECT
SWITCH
RF POSITION
Other
knobs
and
switches
are
set the same
as for CW
reception.
By setting the T/R switch to Transmit, the transmit LED
is lit and shows that you are ready for CW transmission.
When you key the keyer, the meter needle moves and your
CW
signal
is transmitted.
To decrease
the transmitting
power, turn the RF POWER
Control counter clockwise to
on and rotate to adjust while watching the meter needle on
the Po scale for the desired output power.
