Summary of Contents for Award CS8-902 SSI

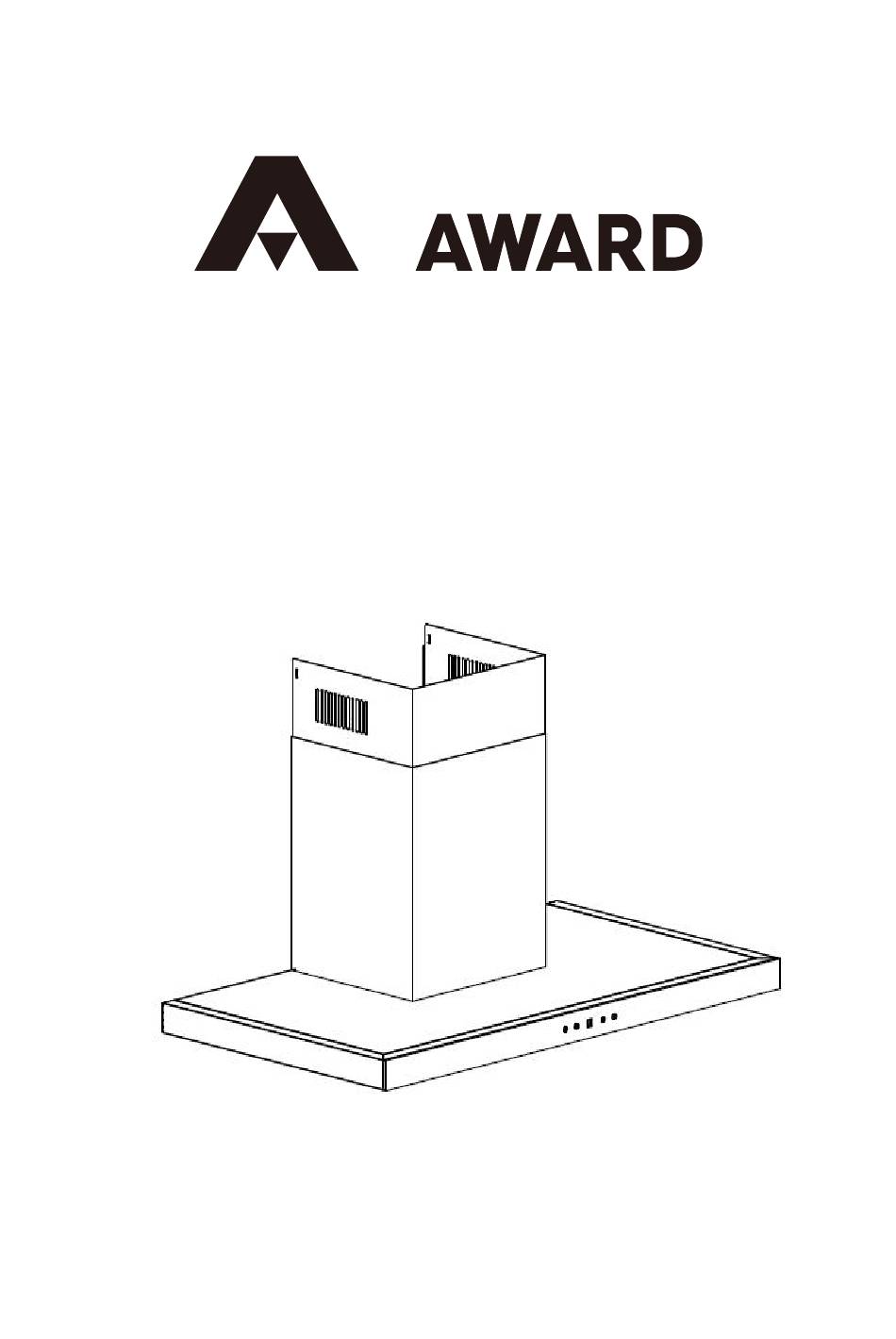

- Page 1 Rangehood Instruction Manual CS8-902 SSI...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your rangehood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your rangehood please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. of a rangehood or other cooking Never to do: fume extractor, the operation of open flued gas appliances should be tested... - Page 4 of experience and knowledge if they arning: Before obtaining access to ● have been given supervision or terminals, all supply circuits must be instruction concerning use of the disconnected. rangehood in a safe way and f the voltage rating of the lamp is less ●...
-
Page 5: Installation
leaning and user maintenance shall ARNING: Danger of fire: do not ● ● not be made by children without store items on the cooking surfaces. supervision. steam cleaner is not to be used. ● hen the rangehood and ● EVER try to extinguish a fire with ●... - Page 6 3. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the highest place of chimney. See pic 2. 4. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the expansion pipe.
- Page 7 HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: • Keep expansion pipe short and straight. • Do not reduce the size or restrict the expansion pipe. • When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
-
Page 8: Start Using Your Rangehood
Start Using Your Rangehood Touch control with LED display 1. Press the “Power” button, the button control the “on” & “off ” of the hood. 2. Press the button “Speed” time after time, the motor runs as low / mid / high / low / mid…, the speed runs circularly;... -
Page 9: Maintenance And Cleaning
NOTE: Any electrical repairs to this rangehood must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit. -
Page 10: Carbon Filter-Not Supplied
GREASE MESH FILTERS Immerse the filter in water at around 40-50°C, pour in cleaning agent, soaking for about 2-3 minutes, and then brush the filter with a soft brush. Do not apply too much pressure, avoid to damage it . The filter can be washed in a dishwasher. -
Page 11: Bulb Replacement
NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT Important : The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. -
Page 12: Environment Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. - Page 13 The Warranty covers rectifications of faults arising from defective materials, components, faulty workmanship or assembly. The product will be repaired or replaced at the sole discretion of Award Appliances (NZ) Ltd. Conditions of Warranty: The purchaser/installer carefully follows the installation instructions provided and complies with electrical, gas, plumbing, building and other regulations and codes of practice in New Zealand;...
