Programmable thermostat
36
36
24
24
24
24
34
34
32
32
30
30
20
20
20
20
26
26
16
16
16
16
22
22
12
12
12
12
8
8
8
8
6
6
6
6
1
1
0
0
2
2
3
3
4
4
5
5
6
6
7
7
8
8
INSTALLATION AND USE MANUAL
R
R
h
h
P
P
24
24
20
20
16
16
12
12
8
8
6
6
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
TH/124
24
24
36
36
34
34
32
32
20
20
30
30
16
16
26
26
12
12
22
22
8
8
6
6
19
19
20
20
21
21
22
22
23
23
FB00802-EN
EN English
Advertisement
Table of Contents
Related Manuals for CAME BPT TH/124
Summary of Contents for CAME BPT TH/124

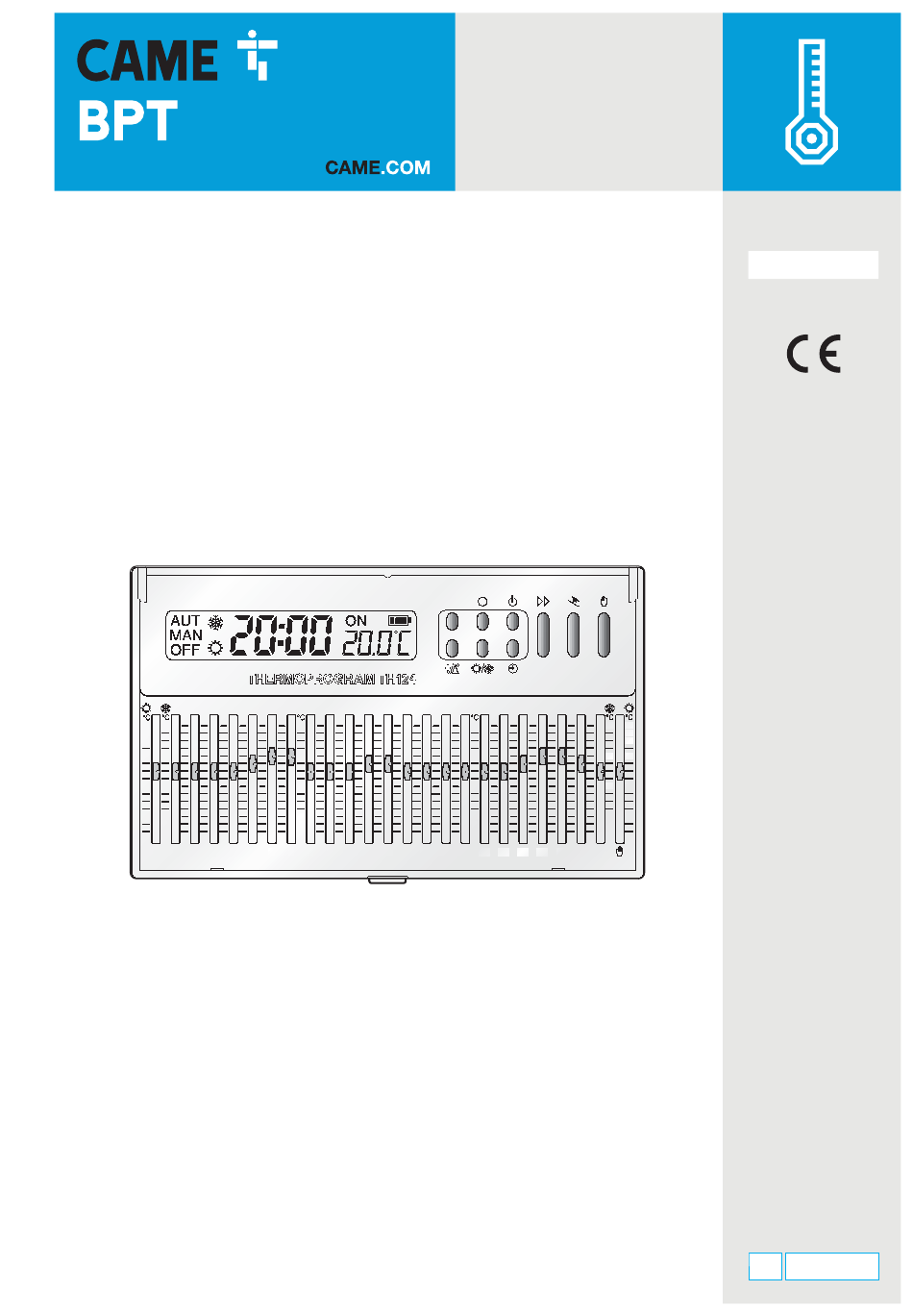

- Page 1 FB00802-EN Programmable thermostat TH/124 EN English INSTALLATION AND USE MANUAL...
-
Page 2: General Precautions
General Precautions • Important people-safety instructions: READ CAREFULLY! • Make sure that the power supply network, in compliance with the installation rules, is fi tted with a two-wait cut off switch, that provides category III protection levels; • Installing, programming, commissioning and maintenance must only be done by qualifi ed, expert staff and in full compliance with the applicable law. -
Page 3: Device Description
Device description ⑤ ⑥ ⑦ ⑧ ⑨ ④ ③ ② ① Description of the icons shown on the display Thermal zone excluded from ⑤ Cooling mode active ① OFF control ⑥ Digital clock MANUAL control ② MAN of the thermal zone ⑦... - Page 4 ⑩ ⑪ ⑫ ⑯ ⑰ ⑱ ⑲ ⑳ ⑬ ⑭ ⑮ ㉒ ㉑ Function of buttons and cursors Range of valid temperatures with ⑩ Reset button ⑳ active cooling mode ⑪ Show system activation time Cursor for manually selecting ㉑ ⑫...
- Page 5 Installing Install the device in a place suitable for detecting the room's tempera- ture, possibly onto an inside wall, and avoid any nooks, behind doors, near curtains or heat sources. Press button ❶ and separate the base from the body of the device ❶...
-
Page 6: Electrical Connections
Fasten the base to the wall or to the recess-mounting box while thread- ing the connection cables through the corresponding opening Note. Do not excessively tighten the screws. Electrical connections The connections must be suitable for the devices controlled by the chronothermostat. LEGEND 230V~ 50 Hz... - Page 7 Insert 3 alkaline LR6 AA 1.5V batteries into the relevant com- partment. Match up the poles as marked inside compartment Wrongly fitted batteries can damage the device. If the indications on the display do not appear within 30 seconds, press the R reset button. Latch the device onto the base as shown in the fi...
- Page 8 Programming and using the device Setting the clock Press button The minute digits are fl ashing. Use the button to set the exact minute value Press button The hours digits are fl ashing. Use the button to set the exact time Press button to end the pro-...
- Page 9 Note. Each time the button is pressed, the digits on the display advance by one unit. By keeping the button pressed, the digits on the display slowly increase for fi ve seconds, then quickly increase. Note. After 10 seconds of inactivity, the device automatically exits the procedure while memorizing the latest set data.
-
Page 10: Automatic Control
AUTOMATIC or MANUAL temperature control Automatic control A until the wording Press button AUT appears on the display. Move cursors 0 to 23 , placing them on the wanted temperature, for each hour of the day. The display shows the cursor number on which you are working °C °C... - Page 11 The display shows the temperature that you are setting. Use scales according to the system's operating mode. Using the VACATION program If you want to maintain a steady temperature for some hours or days - for example to keep the most comfortable temperature during when hosting guests or to prevent freezing during winter absences - you can activate the VACATION program.
-
Page 12: Daily Activation
Daily activation Activating the MANUAL operating mode Set the cursor on the tempera- ture you want. twice. Press button The display, in place of the cur- rent time indication, will show the wording d01. Use button to set the number of wanted days of activation (from 1 to 99) The activation term starts immediately;... - Page 13 Press button The display shows the wording h01 instead of the current time. Use button to set the number of hours during which the thermal control of the zone will be excluded (from 1 to 99) The set exclusion starts immediately; the display shows the hours left for completing the execution of the program.
- Page 14 Change the value of the temperature diff erential The factory settings have a ± 0.2°C temperature diff erential. This temperature diff erential is suitable for high thermal-inertia systems, such as, systems with cast iron radiators. If you need to change that value, proceed in the following way: Set-point + diff erence...
- Page 15 View set temperatures Press button The display shows, for 5 seconds, the set temperature value cor- responding at a chosen time For example, if at 11:45 the C11 cursor is set to 20°C, the display will show C11 20°C. Press button to view the set temperature, for other times of day, by the various cursors.
-
Page 16: Replacing The Batteries
Replacing the batteries When the icon is fl ashing on the display it means the bat- teries need to be replaced within about one month. When the display shows , the device is no longer operational and the control over the thermal zone has been disabled. - Page 17 Fit three new LR6 alkaline AA 1.5V batteries, into the battery housing while respecting the polarities shown on the bottom If the instructions on the dis- play don't appear within 30 seconds,press the R reset button. ATTENTION: badly fi tted batteries may damage the heating system.
-
Page 18: Problem Solving
Problem solving Press the R reset button if there are any malfunctions. This procedure restores the device to its factory settings. An error message on the display ( ) followed by a number means that one of the 00 to 25 cursors is in the wrong position. - Page 20 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
