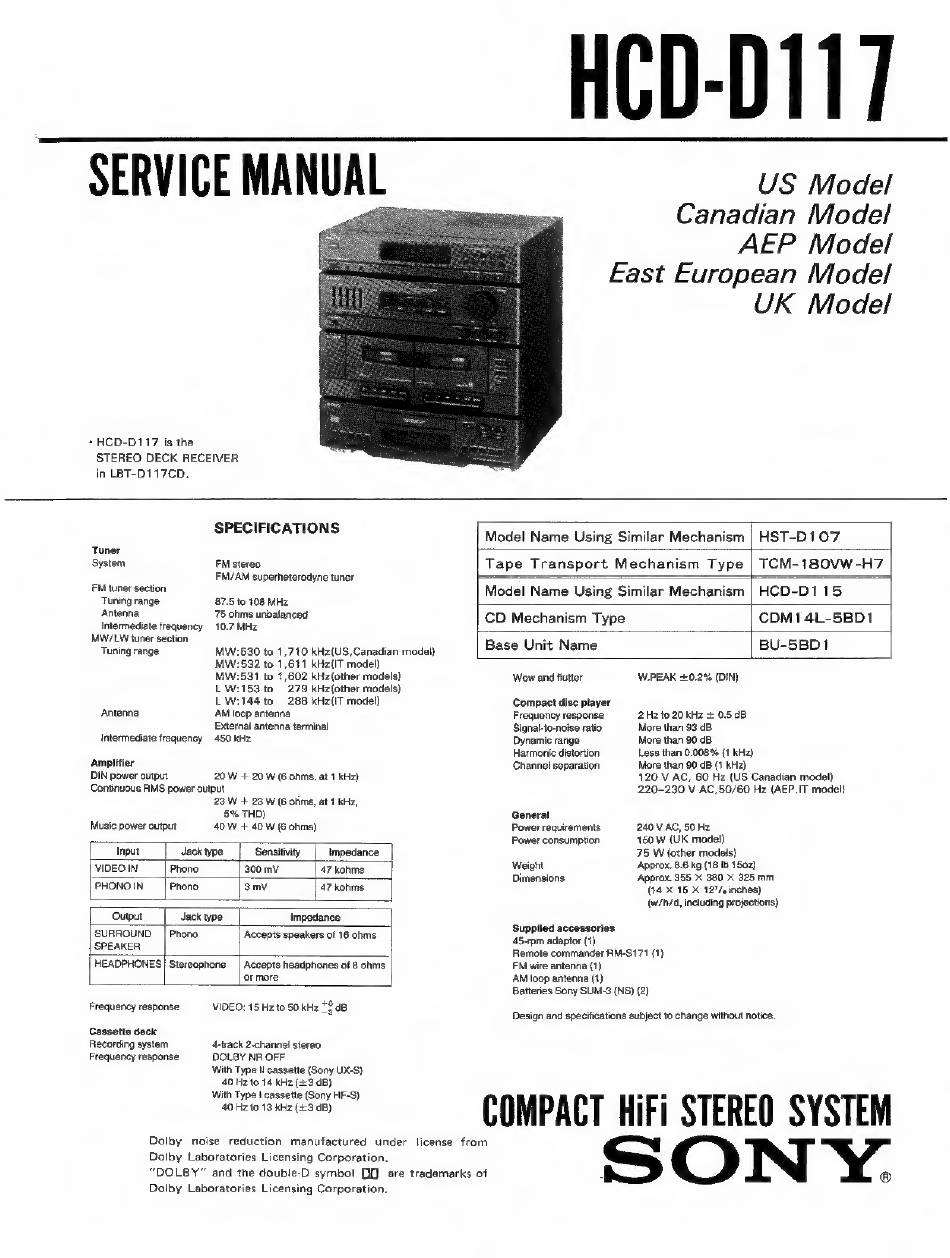

SERVICE MANUAL
+ HCD-D117 is the
STEREO DEC!
K RECEIVER
in LBT-D117CD.
SPECIFICATIONS
Tuner
System
FM stereo
FM/AM superheterodyne tuner
FM tuner section
Tuning range
87.5 t0 108 MHz
Antenna,
75 ohms unbalanced
Intermediate frequency 10.7 MHz
MW/LW tuner section
Tuning range
MW:530 to 1,710 kHz(US, Canadian model)
MW:532 to 1,611 kHz(IT model)
MW:531 to 1,602 kHz(other models),
LW:153 to 279 kHz(other models),
L.W:144 to 288 kHz(IT model)
Antenna
'AM loop antenna
External antenna terminal
Intermediate frequency 450 kHz
Amplifier
DIN power output
20 W + 20W(6 ohms, at 1 kHz)
Continuous RMS power output
23 W + 23 W (6 ofims, at 1 kHz,
5% THD)
Music power output
40 W + 40 W (6 ohms)
Input
Jack type | Sensitivity |
Impedance
VIDEO IN
Phono.
300 mv
47 kohms:
PHONO IN
Phono
3mv
47 kohms
Output
io Jack type
Impedance
SURROUND
| Phono
Accepts speakers of 16 ohms
SPEAKER
HEADPHONES | Stereophone | Accepts headphones of 8 ohms
or more
Frequency response
VIDEO: 15 Hz to 50 kHz *2 dB
Cassette deck
Recording system
4-track 2-channel stereo
Frequency response
DOLBY NR OFF
Dolby noise reduction manufactured under license from
Dol
"DOLBY" and the double-D symbol DQ are trademarks of
Doll
With Type Il cassette (Sony UX-S)
40 Hz to 14 kHz (9 dB)
With Type I cassette (Sony HF-S)
40 Hz to 13 kHz (+3 dB)
by Laboratories Licensing Corporation.
by Laboratories Licensing Corporation.
HCD-D117
US Model
Canadian Model
AEP Model
East European Model
UK Model
Model Name Using Similar Mechanism | HST-D107
Tape
Transport
Mechanism
Type
TCM-180VW-H7
|
Model Name Using Similar Mechanism | HCD-D115
CD Mechanism Type
CDM14L-5BD1
Base Unit Name
BU-5BD1
Wow and flutter
W.PEAK +0.2% (DIN)
Compact disc player
Frequency response
2 Hz to 20 kHz + 0.5 dB
Signal-to-noise ratio
More than 93 dB
Dynamic range
More than 90 dB
Less than 0.008% (1 kHz)
More than 90 dB (1 kHz)
120 V AC, 60 Hz (US Canadian model)
220-230 V AC,50/60 Hz (AEP, IT model)
Harmonic distortion
Channel separation
General
Power requirements
240 V AC, 50 Hz
Power consumption
150 W (UK model)
75 W (other models)
Weight
Approx. 8.6 kg (18 Ib 150z)
Dimensions.
Approx. 355 X 380 X 325 mm
(14 X 18 X 12°/s inches)
(w/h/d, including projections)
Supplied accessories
45-rpm adaptor (1)
Remote commander RM-S171 (1)
FM wire antenna (1)
AM loop antenna (1)
Batteries Sony SUM-3 (NS) (2)
Design and specifications subject to change without notice.
COMPACT HiFi STEREO SYSTEM
SONY.
