ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read these assembly instructions carefully
before beginning assembly. Retain for future reference. CAUTION:
This product is heavy. Assemble with the assistance of another adult.
Do not assemble in the presence of children.
To Assemble:

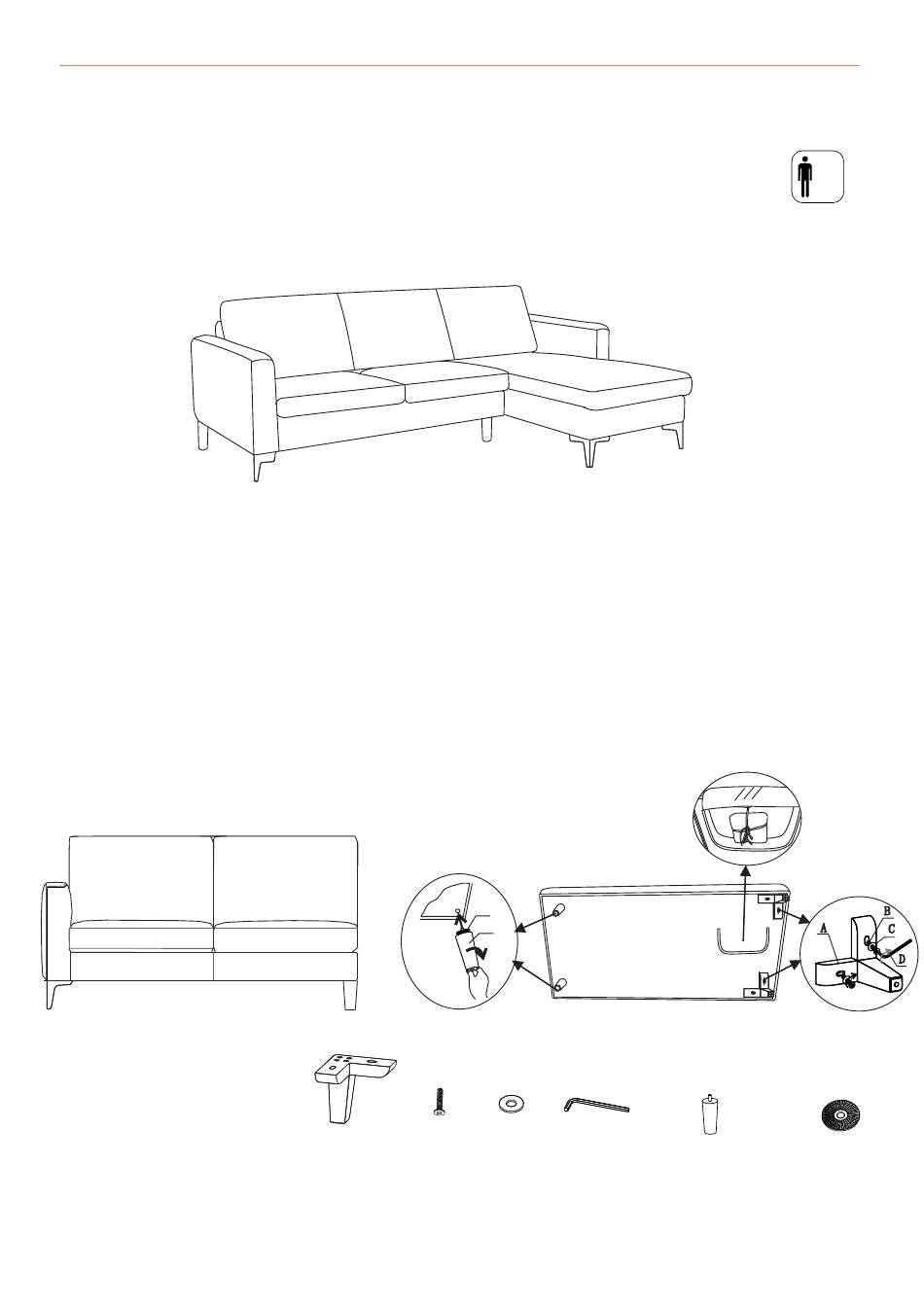

Legs are located inside the black dust cover at the bottom of each sofa piece. Unzip to remove
the legs. Attach the corner legs to the corresponding pre-drilled holes using the provided
hardware.
Ari - KF.2091
E
F
A*2
B*4
Legs A
Screws
www.synargy.com
D*1
C*4
Hex wrench
Gasket
2
x
F*2
E*2
Rubber
Legs E
mat
