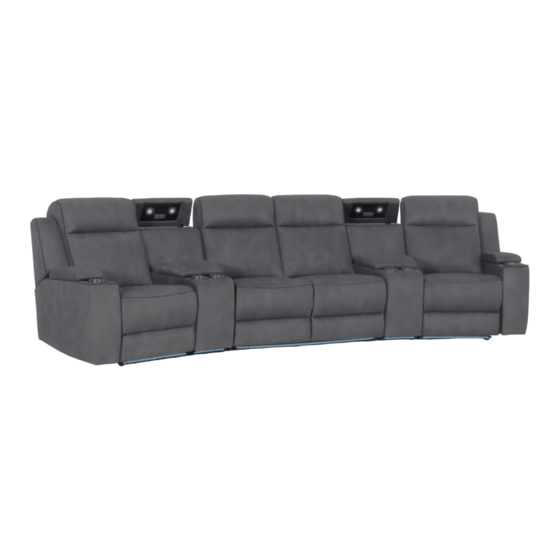

Synargy Smart Comfort 661939-HCT Assembly Instructions

5. Connect the 3 power cables at the back of each module with the corresponding 3 power cables of the
adjacent module. Connections are required at the 4 points where the individual modules meet (Figure 4).
PLEASE NOTE: There are only 2 connections required at location 3.
1
2
3
4
6. Connect the 2 power supply cables to the 2 Consoles. Plug into a power outlet and switch on. Ensure
the red switches at the rear of the consoles are switched on.
7. Your suite assembly is complete.
TROUBLESHOOTING
If you are having any issues please try the following solutions.
•
Push and hold the LIGHT button to change the base and cup holder light colours.
•
Unplug the suite for 5 minutes to reset all electrical components.
•
Check that all plugs are plugged into the power outlet and are secure. Please check that the power
outlet is switched on.
•
Check to ensure that all connection cords are properly connected, as per the step by step instructions.
There are multiple connections, any of which being too loose may cause performance issues.
•
Ensure no cords are pulled too tight. If the cord does not reach its destination with ease you may be
trying to plug it into the wrong location. Please refer back to the step by step instructions to double
check. If it is still is too short/tight, please contact the store you purchased the suite from.
•
Ensure there is nothing obstructing the recliner movement.
•
Try plugging the suite into a different power outlet.
•
Ensure the correct back is on the correct base – Eg: left back is on left base.
•
Please check all connections before contacting the store for more help.
If the suite continues to fail please contact the store from which it was
purchased from.
Synargy is a registered responsible supplier on ERAC. Electrical components within our products have
been tested and comply with all legal requirements imposed for electrical safety and EMC.
Figure 4
ASSEMBLY INSTRUCTIONS
WARNING! ENTRAPMENT OR CRUSHING RISK
Ensure there is no person, animal or item obstructing the area under
the footrest before operating this device.
V3
Model: 661939-HCT
