CORNER WEDGE ASSEMBLY GUIDE |
20/04/2021
Step 2:
Locate the mounting holes on the back of the seat base. Place the Right side seat back on the base first.
For each of the two mounting holes, push a bolt with washer from the underside of the seat base, and
up through the seat back. You can rest the base and seat back sideways to allow better access to the
underside of the base.
E:
support@synargy.com
LENYX LOUNGE SUITE
Step 1:

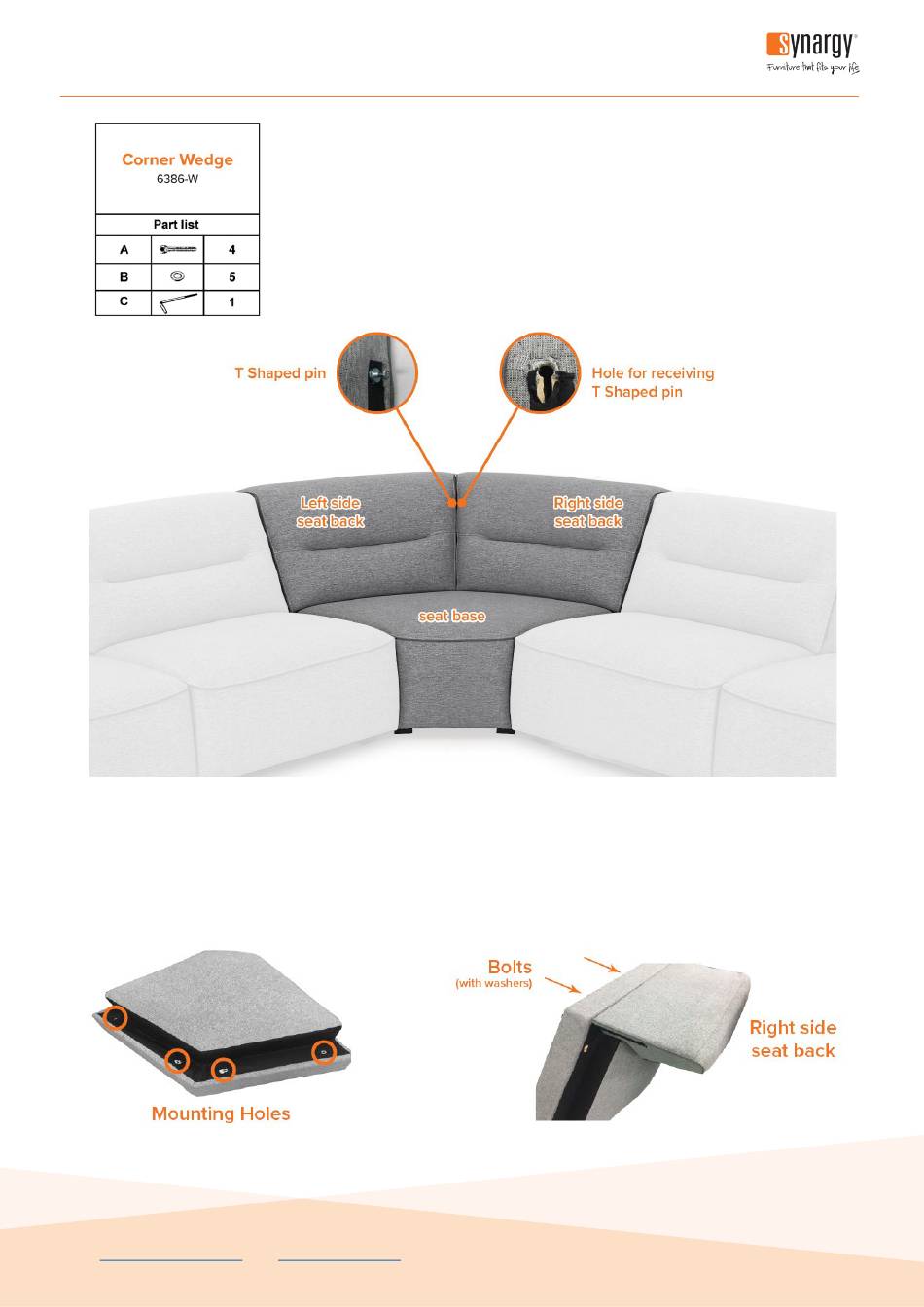

Identify the Left and Right side seat backs. The Left seat back (when facing
the lounge) will have a T shaped pin on the right-hand side of the seat back.
The Right seat back will have a hole for receiving the T shaped pin (in a later
step) on the left-hand side of the seat back.
(see diagram below)
| W:
www.synargy.co.nz
