DTF STATION Prestige XL4 User Manual

Dtf printer
Hide thumbs

Advertisement

Table of Contents

Prestige XL4
DTFSTATION.COM
DTF Printer
User Manual
Maintenance &
Essential Materials
Troubleshooting Videos
(Software, Guides, Warranty & More)
1
Ver. 05.17.2024
© 2024 DTF Station. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige XL4 and is the answer not in the manual?

Questions and answers

Related Manuals for DTF STATION Prestige XL4

Summary of Contents for DTF STATION Prestige XL4

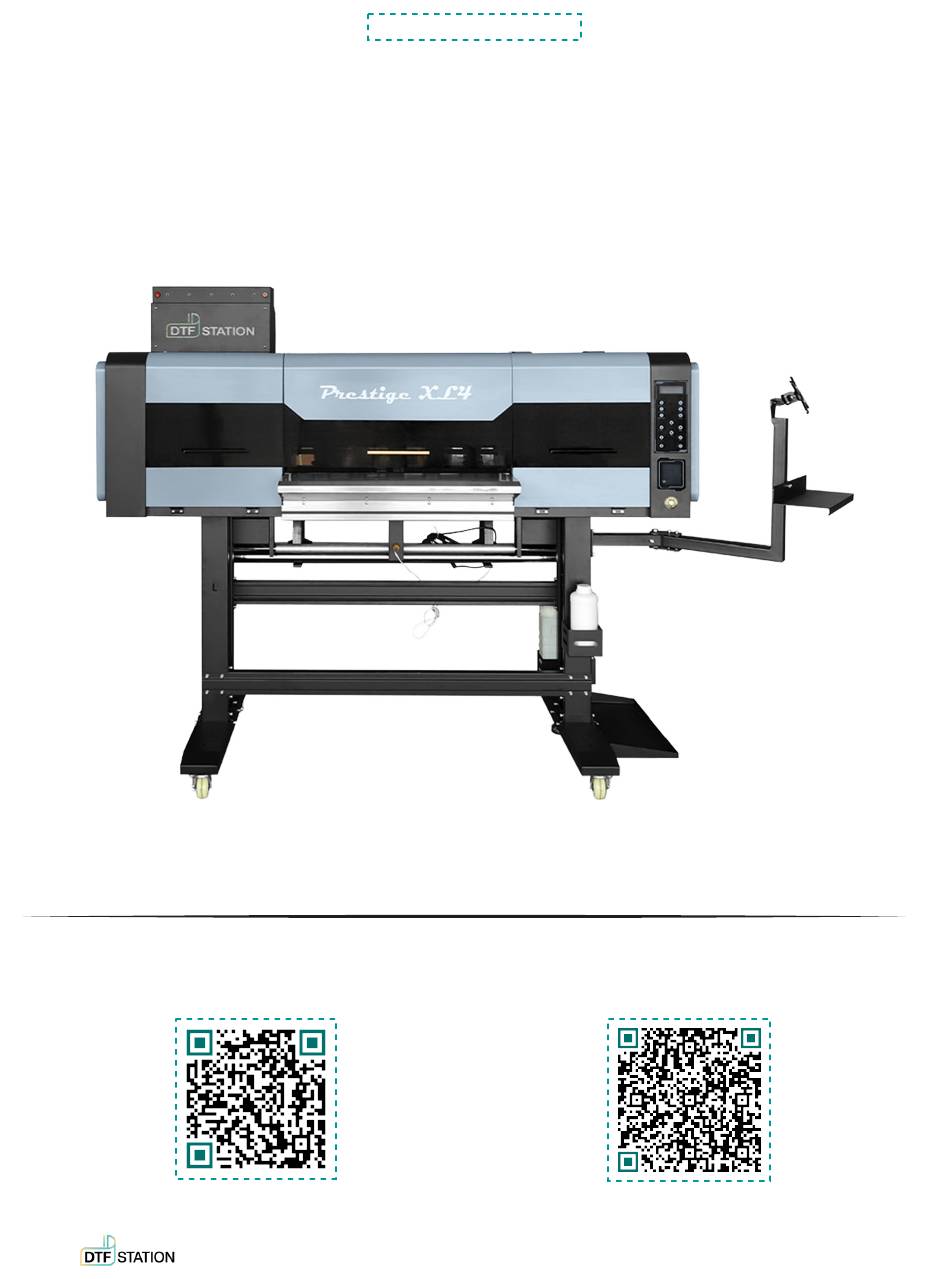

  • Page 1 Prestige XL4 DTFSTATION.COM DTF Printer User Manual Maintenance & Essential Materials Troubleshooting Videos (Software, Guides, Warranty & More) Ver. 05.17.2024 © 2024 DTF Station. All rights reserved.

  • Page 2: Table Of Contents

    DTFSTATION.COM INDEX Contents Install DigRip Unzip Hosonsoft Install the Printer Printer Connection & Cleaning Storage and Maintenance Electrical Diagram © 2024 DTF Station. All rights reserved.

  • Page 3: Install Digrip

    The RIP is what allows the printer to print white in the correct order. Once installed, run DigiRip. https://updater.cadlink.com/CommercialReleases/trial/DFv10_DTFTrial.exe Step 2: Click on the Icon to open Step 3: Click Next and accept the agreement © 2024 DTF Station. All rights reserved.
  • Page 4 DTFSTATION.COM Step 4: Full install and select the folder Step 5: Wait for downloading © 2024 DTF Station. All rights reserved.
  • Page 5 First time setup Enter the activation code, finish the registration Step 7: Register the Trial (15 days) or enter the activation code Step 8: Select Devices-->Manage Devices to add your printer Continue --> © 2024 DTF Station. All rights reserved.
  • Page 6 DTFSTATION.COM In Manage Devices window, click the Install Printer button on the top left. Search and Select Prestige XL4 Continue --> © 2024 DTF Station. All rights reserved.
  • Page 7 DTFSTATION.COM Select TCP/IP and Set the IP address to 127.0.0.1 © 2024 DTF Station. All rights reserved.
  • Page 8 DTFSTATION.COM The Queue is added successfully © 2024 DTF Station. All rights reserved.

  • Page 9: Unzip Hosonsoft

    Open the file and find PrintExp_X64.exe Please refer to the video instruction avaliable in Quick Start Quide to properly install Printexp. Before clicking on the button, you need to install the printer and have the printer turned on. © 2024 DTF Station. All rights reserved.

  • Page 10: Install The Printer

    Lock the foot of the bracket for easier laying flat to install the stand. Step 2: Installing the Left and Right brackets. Loosen the hexagonal screws on the sides first to facilitate the installation of the stand. © 2024 DTF Station. All rights reserved.
  • Page 11 DTFSTATION.COM Step 3: Make sure the letter on left and right sides correspond to each other. Then fix the hexagonal screws around. Step 4: Fix the screws on the bottom as well © 2024 DTF Station. All rights reserved.
  • Page 12 DTFSTATION.COM Step 5: Install the front fixing bracket, tighten the hexagonal screws on both ends. Step 6: Loosen the foot for easier movement of the machine © 2024 DTF Station. All rights reserved.
  • Page 13 The bigger one is for the waste ink bottle, while the smaller one is for the maintenance liquid. Step 9: Install the bracket for the waste ink bottle on the back. © 2024 DTF Station. All rights reserved.
  • Page 14 DTFSTATION.COM Step 10: Install the right side computer stand, keyboard stand, and PC hosting stand. Step 11: Fix the screws marked in red circle. Step 12: Install the tension bar bracket. © 2024 DTF Station. All rights reserved.
  • Page 15 DTFSTATION.COM Step 13: Install the right side computer stand, keyboard stand, and PC hosting stand. Step 14: Tighten the screws Step 15: Install the tension bar © 2024 DTF Station. All rights reserved.
  • Page 16 Tilt the tension bar a little bit and put it into the tension bar’s slot Step 17: Install the take-up reel and the take-up reel’s bars Step 18: Install the brackets on the back and tighten the screws. © 2024 DTF Station. All rights reserved.
  • Page 17 Install the fixing crossbar and single-motor take-up system. Loosen the screws on the bracket on the back. Step 20: Tighten the screws inside. Stop when the bar is fixed, make sure the screws is not breaking the metal bar. © 2024 DTF Station. All rights reserved.
  • Page 18 Remove the metal piece at the bottom of the printer body. Tighten the screws underneath the printer body with the stand. Put the maintenance liquid in the front bracket. © 2024 DTF Station. All rights reserved.
  • Page 19 Remove the two screws under the printer body first. Step 23: Make sure the sensor is facing the back, where the film locates at. Step 24: Connect the take-up reel with the power © 2024 DTF Station. All rights reserved.
  • Page 20 Take out the screws and remove the back panel. Step 26: Loosen the screws on the sides. Step 27: Install the ink bottles assembly. Organize the power cables and ink tube inside the ink bottles assembly. © 2024 DTF Station. All rights reserved.
  • Page 21 Step 29: Align the ink bottles assembly with the screws. Connect the white ink circulation tube. Step 30: Connect the power cable: black connector to black connector; white to white. © 2024 DTF Station. All rights reserved.
  • Page 22 Open the side of the printer, take out the waste ink hose. Thread the waste ink tubes through the hole. Step 34: Thread the waste ink tubes into the waste ink hose. Tighten the screws of the waste ink hose under the printer body. © 2024 DTF Station. All rights reserved.
  • Page 23 Organize the wet cap tube and put it through the front hole. Step 38: Compare the tube with the maintenance liquid. Have the tube slightly longer than the bottle and cut the redundancy. © 2024 DTF Station. All rights reserved.
  • Page 24 Load the ink according to the colors. Make sure the tap is closed before loading ink. Pointing to the ground is opened while pointing to the side is closed. Step 3: Remove the tape of the cover and open it. © 2024 DTF Station. All rights reserved.
  • Page 25 Turn on the main power switch while keeping the emergency button pressed Step 6: Load the film in the following angle. Step 7: Lock the screw on both sides when centered the film. Press the pinch rollers’ button on the back. © 2024 DTF Station. All rights reserved.
  • Page 26 Move to the front. Move the media guides to the sides. Hold the film and press the pinch rollers’ button. Step 10: Make sure the film is centered and straight, press the button again to secure the film. Attached the media guides to the film. © 2024 DTF Station. All rights reserved.
  • Page 27 Cut the tie of the Ethernet cable and connect to the PC. Step 12: After connecting to the PC. Release the emergency button, turn on the take-up reel motor. Step 13: Load ink and cleaning, Go to menu: Head maintain—>Fill ink—>4 Head-ALL © 2024 DTF Station. All rights reserved.
  • Page 28 (30sec each time), after 30s, press cancel and cleaning through the front control board. Step 29: After the cleaning, close the printer cover and select “Nozzle Check” from the control panel. Good nozzle check turns out like this: © 2024 DTF Station. All rights reserved.

  • Page 29: Storage And Maintenance

    1. You’ll see a red light on the main switch 2. Long press for 3 sec to turn off the Thermostat Board. 3. Empty the waste ink bottle. Step 3: The printer will perform auto cleaning every 4 hours. © 2024 DTF Station. All rights reserved.

  • Page 30: Electrical Diagram

    Bo�om le� Fiber Op�c Interface Fiber op�c interface Flat cable power supply interface Flat cable power supply interface Control Panel Ethernet port Power supply interface Capping Wiper blade Sta�on Power motor interface Supply © 2024 DTF Station. All rights reserved.
  • Page 31 Updated Date: Apr 15, 2024 Limited Warranty on Prestige XL4 DTF Printer DTF Station is pleased to offer a limited warranty on the Prestige XL4 DTF Printer, subject to the terms and conditions outlined herein. Please read this warranty policy carefully to understand your rights and obligations.
  • Page 32 Checklist & Warranty Disclosure Form, or, if not submitted within 60 days of receiving the equipment, from the shipment date of the Prestige XL4 DTF Printer. Limited warranty coverage: Customers who elect not to complete On-Site Training will receive limited warranty coverage, which excludes any conditional warranty coverage, for a period of 90 days from the warranty’s effective date.
  • Page 33 60 days of receiving the equipment, the warranty will be effective from the shipment date of the Prestige XL4 DTF Printer. In addition to signing the Training Checklist & Warranty Disclosure Form, please visit the following URL to register your equipment warranty: https://dtfstation.com/pages/please-register-your-printer-before-using.
  • Page 34 D. Terms That Void the Warranty ● Use of Non-DTF Station Ink, Film, Powder Please note that the use of non-DTF Station ink and film with your Prestige XL4 DTF Printer will void any warranty offered for the printer. To maintain warranty coverage, it is essential to use only DTF Station-approved ink and film.
  • Page 35 Please retain your proof of purchase for warranty claims. For any warranty-related inquiries or to initiate a warranty claim, please contact your DTF Station dealer. This warranty policy is subject to change at the discretion of DTF Station. By purchasing and using the Prestige XL4 DTF Printer, you acknowledge and accept the terms and conditions outlined in this warranty policy.
  • Page 36 IP Claim. 2. Initial Dispute Resolution: Before initiating arbitration proceedings as outlined in this Section F, you and DTF Station commit to attempting to resolve any Dispute informally for a 60-day period. If no resolution is reached during this time, either party may proceed with arbitration as per Section F(6).
  • Page 37 You may opt for arbitration by phone or online with mutual agreement; otherwise, hearings will occur near your residence or in Orange County, California, at your discretion. © 2024 DTF Station. All rights reserved.
  • Page 38 7. 30-Day Opt-out Right: You have the option to exclude yourself from the mandatory, binding individual arbitration and class action waiver specified in Section F by sending a written letter to the DTF Station address in Section F(2) within 30 days of agreeing to this Agreement. This letter must contain your name, mailing address, and the request to be excluded from the arbitration and class action waiver in Section F.
  • Page 39 DTF Station product, regardless of whether based on breach of warranty or any other legal theory. In no event shall DTF Station or its affiliates' liability exceed the original retail purchase price of the product. Some states do not permit the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you.
