Adaptive Star AXIOMIMPROV Owner's Manual

Indoor/outdoor mobility push chair
Hide thumbs Also See for AXIOMIMPROV:

Advertisement

Table of Contents

Read all instructions BEFORE
assembly and USE of product. KEEP
INSTRUCTIONS FOR FUTURE USE.
Lea todas las instrucciones ANTES
se armar y USAR este producto.
CONSERCE LAS INSTRUCCIONES
PARA USO FUTURO

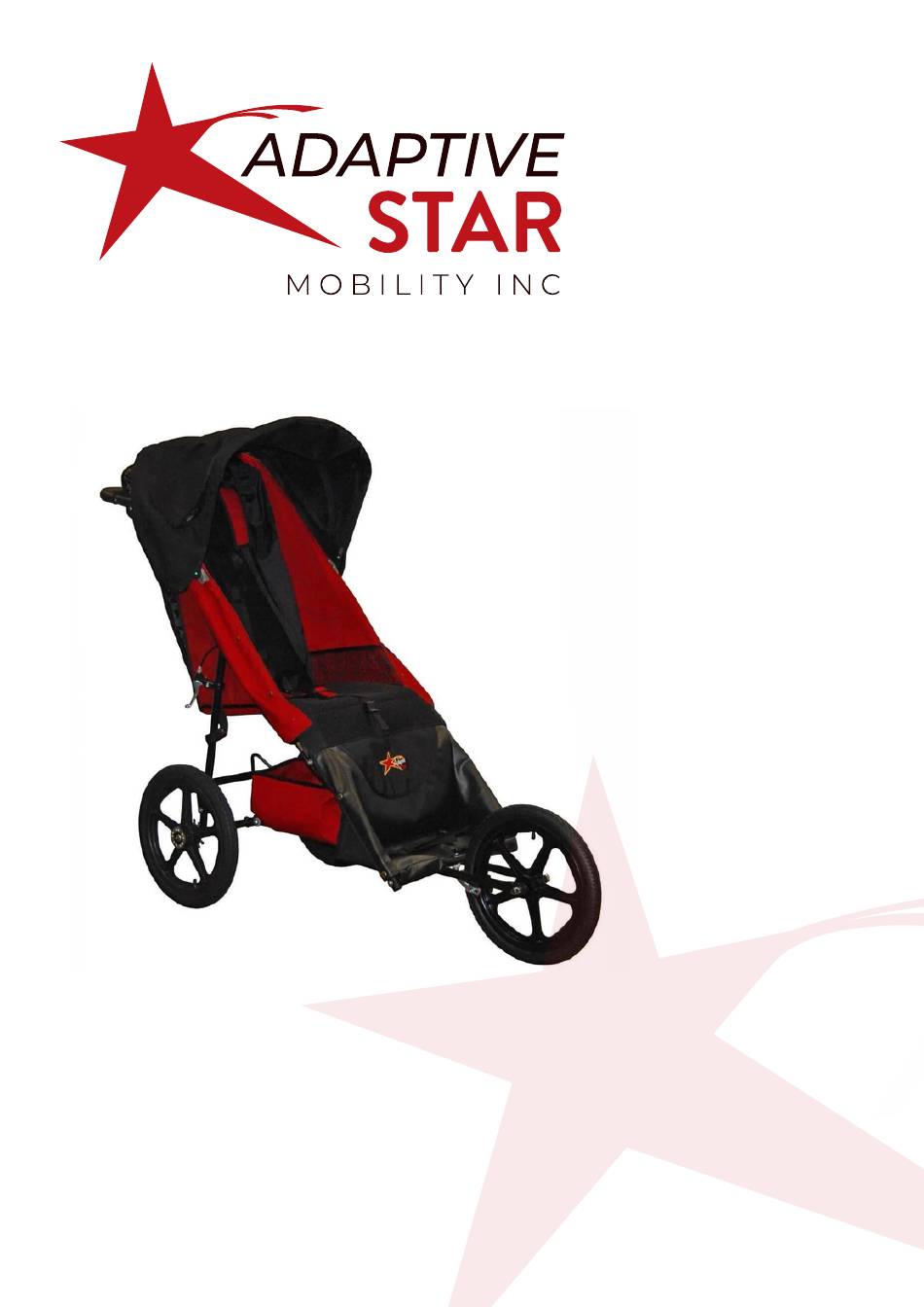

Owner's Manual
Size 2 & 3
Manual del Propietario
AXIOMIMPROV
INDOOR / OUTDOOR MOBILITY PUSH CHAIR
www.adaptivestar.com
1-800-278-9626

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIOMIMPROV and is the answer not in the manual?

Questions and answers

Related Manuals for Adaptive Star AXIOMIMPROV

Summary of Contents for Adaptive Star AXIOMIMPROV

  • Page 1 USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. Lea todas las instrucciones ANTES se armar y USAR este producto. CONSERCE LAS INSTRUCCIONES PARA USO FUTURO Owner’s Manual Size 2 & 3 Manual del Propietario AXIOMIMPROV INDOOR / OUTDOOR MOBILITY PUSH CHAIR www.adaptivestar.com 1-800-278-9626...
  • Page 2 • DO NOT THROW AWAY BOX chair came in, check that the product and all its components are all there and have not been damaged during transportation. • DO NOT use accessories, spare parts, or any component not supplied or approved by Adaptive Star Mobility Inc. as they may make the push chair unsafe.
  • Page 3 NO utilice accesorios, piezas de repuesto ni components que no heyan sido suministrados o aprobados por Adaptive Star Mobility Inc. Ya que podrían comprometer la estabilidad del cochecito.

  • Page 4: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS What if I break my Axiom Push Chair? No problem! Just call us for help at 1-800-278-9626. We’ll get you back up and on the road in no time. Is the fabric on my Axiom Push Chair washable? Yes! The seat, canopy, and basket are removable and machine washable in cold water with mild detergent.
  • Page 5 COMPONENTS COMPONENTES Folded Chair Silla plegable Support Boards Tableros de soporte *installed* Rear Wheels Ruedas traseras Quick Release Axles Ruedas traseras *installed* Front Wheel Rueda delantera Quick Release Axle Ruedas traseras *installed* Safety Wrist Strap Correa de seguridad para la muñeca *installed* PAGE | 5 www.adaptivestar.com...

  • Page 6: Let's Get Started

    LET‘S GET STARTED! Your Improv push chair is almost completely assembled when you receive it. The following short series of instructions will help you through the final steps so you can get out and start having fun! Remove the push chair from the box, cut all white zip ties and unwrap all the component pieces.

  • Page 7: Rear Wheel Installation

    To install or remove the rear wheels simply push the button on the outside of the wheel and hold it in while either installing it into the AXIOM axle or removing it. Be sure the rear foot brake is in the upright position when installing or removing the wheels. Inside of Outside of Big Button on...

  • Page 8: Front Wheel Installation

    FRONT WHEEL INSTALLATION The front wheel is the Start by tipping the same as a bicycle. Place push chair backwards the tire between the so the fork assembly brake pads and orient is pointing upward. your wheel so that the This will make it flat sections of the wheel easier to install the...
  • Page 9 To fold your Improv, unfasten the front basket straps on the bottom of chair, unbutton the seat anchor strap located under the release lever, and locate the primary folding release lever located on the left side upright of the Axiom. Please squeeze one time and release while pressing down gently on the handlebar.
  • Page 10 ADJUSTMENTS SEAT RECLINE To recline the seat, simply slide the two straps behind the seat. To put the seat back to the upright position, pull the webbing taut until in the upright position. FRONT BRAKE ADJUSTMENT The front brake on your Axiom pushchair may require periodic adjustment.

  • Page 11: Harness Adjustments

    HARNESS ADJUSTMENTS You will want to do a onetime general positioning of the harness before placing the passenger in the seat. Once the passenger is in the seat then do the final harness adjustments as follows: Undo both the buckles from the Pull up the webbing through the seat padded center pelvic strap and up on the shoulder harness area.

  • Page 12: Maintenance

    MAINTENANCE We recommend that you have an experienced dealer perform these maintenance check at least once each year. Lubrication of these following items is necessary: Pivot point and cable of hand brake Insert in frame for rear wheels Pivot point and cable of brake caliper Wheel hub and bearings of rear wheels Front wheel axle Locking bars of folding mechanism...

  • Page 13: Warranty Card

    Please refer to the store where you made your purchase for returns and refunds as Adaptive Star does not give direct refunds. Purchaser is responsible for initial shipping charges required to ship the product for warranty service.
