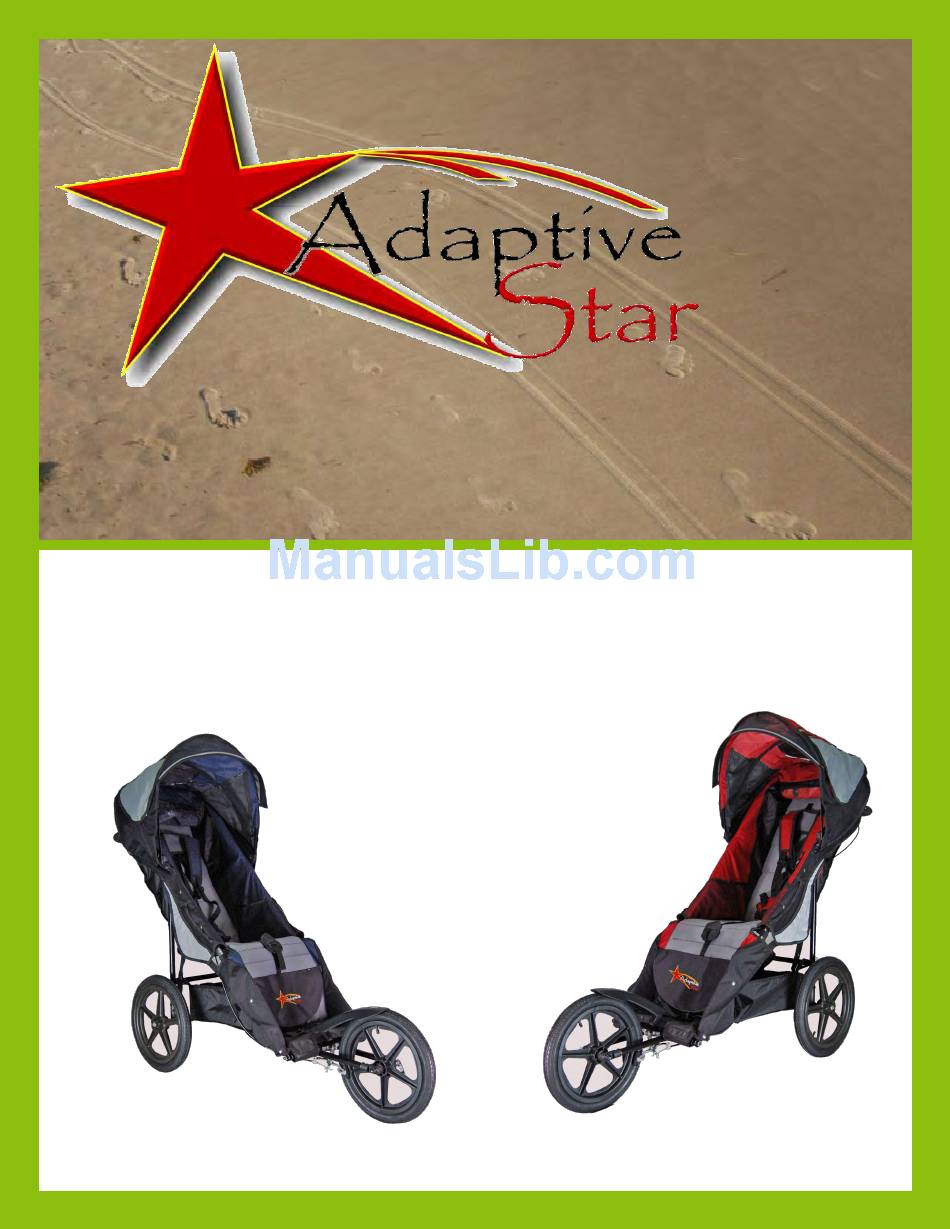

- Page 1 At Adaptive Star we believe in Going Out & Making A Difference We hope you will join us on our journey. improv AXIOM INDOOR / OUTDOOR MOBILITY PUSHCHAIR Assembly and Care Manual Size 1.5, 2, & 3 www.adaptivestar.com 1-800-278-9626...
- Page 2 Family First We believe everyone using our products becomes family Our Mission is to fulfill the dreams of families with products and services that benefit their daily lives. Our commitment grows with every member that joins our family, to listen, to learn and to improve our service, our innovation and our products.
-
Page 3: Frequently Asked Questions
Frequently Asked Questions Can I roller blade with my Axiom Push Chair? We do not recommend this, it is just too easy to lose control and cause possible harm to your passenger or yourself What if I break my Axiom Pushchair? No problem! Just call us for help at 800-278-9626. -
Page 4: Let's Get Started
Your AXIOM Pushchair is almost completely assembled when you receive it. The following short series of instructions will help you through the final few steps so you can get out and start having fun! Axis swivel wheel kit (boxed) AXIOM pushchair (folded) Wheel set - 2 Rear 1 Front Rain Canopy Assembly instructions and Pump... - Page 5 Sun Canopy Installation The sun canopy is preinstalled for your convenience. The following instructions outline how to reinstall the sun canopy. The next step is to install the sun canopy onto your Axiom Pushchair. Orient the canopy so that the Velcro flap is toward the push handle and the mesh visor is toward the front of the pushchair.
-
Page 6: Front Wheel Installation
...insert the wheel axle Rear Wheel Installation all the way into the First unlock the rear foot brake by pushchair frame and pulling the black loop upward release the button. Now repeat to install the other wheel. Check to make sure your wheels are Next, push the black locked in before... - Page 7 Axis Swivel Wheel Adaptor The Axis swivel wheel adaptor kit comes Next loosen the black knob on the top of the standard with Axis swivel wheel adaptor and unfold the hinged each Axiom Push- lid. chair. In order to install the swivel wheels first you must remove the standard front wheel by unfolding the quick...
- Page 8 Latch the AXIOM has started to fold, you may Lever release the lever. Your AXIOM improv folds to a convenient size that will allow you to transport it in many automobile trunks. If you require a more compact folded size, simply remove the wheels.
- Page 9 AXIOM Improv Front wheel splash guard, installation guide Start by locating the front brake caliper retaining nut, located behind the front wheel. Use a wrench to remove the top nut as shown: Now set the removed nut aside while you slip the splash guard onto the caliper mounting bolt.
- Page 10 Things you need to know about…. All Weather Canopy If you get stuck in the rain or heavy wind, the all weather canopy will help keep the pushchair passenger dry and comfortable. Just drape the cover over your bubble style sun canopy and seal the back of the Velcro strips together around the handle like a sleeve.
-
Page 11: Wrist Strap
More things you need to know about…. Seat Anchor Straps The seat harness system requires that the seat anchor straps be attached at all times. These straps are removable so that you can take off the seat for laundering etc. Please add this to your visual inspection prior to using the pushchair. -
Page 12: Seat Recline
Adjustments Seat Recline To recline the seat, simply slide the two straps behind the seat. To put the seat back to the upright position, pull the webbing taut until in the upright position. Front Brake Adjustment The front brake on your Axiom pushchair may require periodic adjustment. By turning the silver ring, indicated by the red arrow, outward it will cause the brake pads to move closer to the front wheel. -
Page 13: Harness Adjustment
Harness Adjustment You will want to do a one time general positioning of the harness before placing the passenger in the seat. Once the passenger is in the seat then do the final harness adjustments as follows: Push down on the silver center Undo both the button located between the buckles from the... -
Page 14: Maintenance
Maintenance We recommend that you have an experienced dealer perform these maintenance check at least once each year. Lubrication of these following items is necessary: Pivot point and cable of hand brake Insert in frame for rear wheels Pivot point and cable of brake caliper Wheel hub and bearings of rear wheels Front wheel axle Locking bars of folding mechanism... -
Page 15: Warranty Card
Foam grips, inner tubes, tires and brake pads are specifically excluded. Adaptive Star will, at its option, repair or replace defective parts upon delivery to our service center accompanied by proof of date of first consumer purchase, such as a copy of a sales receipt. Please refer to the store where you made your purchase for returns and refunds as Adaptive Star does not give direct refunds. - Page 16 PO Box 369 Selah, WA 98942 At Adaptive Star we believe in Going Out & Making A Difference We hope you will join us on our journey.
