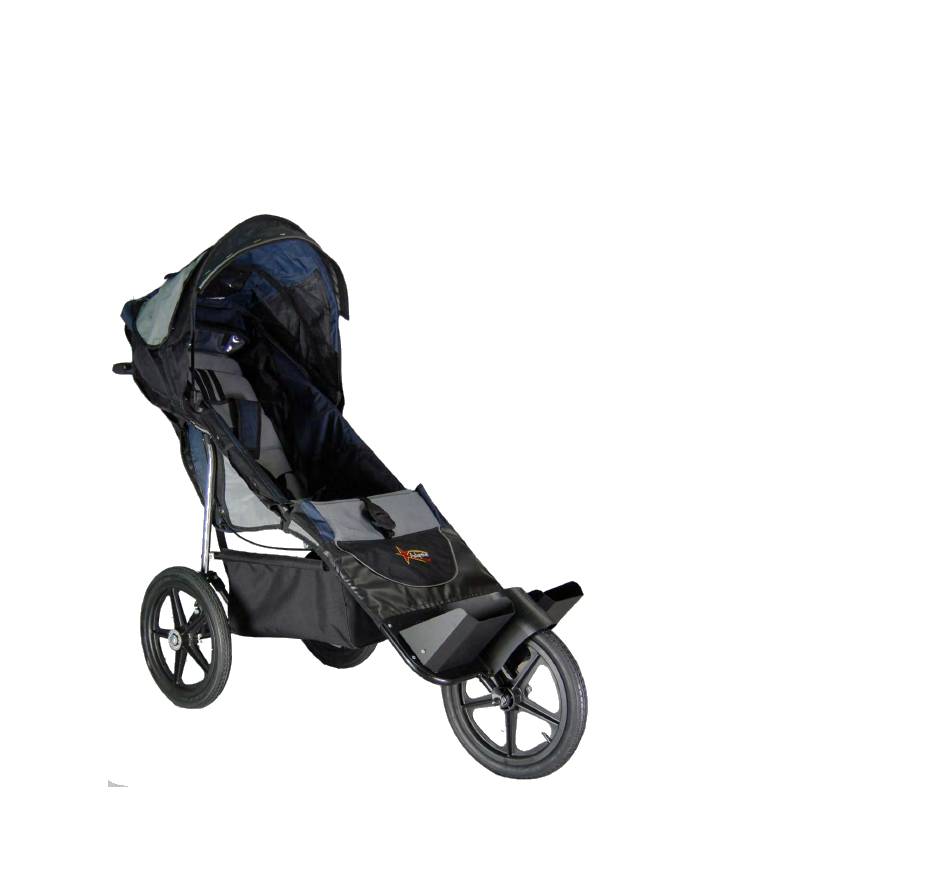

- Page 1 AXIOM INDOOR / OUTDOOR MOBILITY PUSHCHAIR Assembly and Care Manual Size 1.5, 2, & 3...
-
Page 2: Frequently Asked Questions
Frequently Asked Questions Can I roller blade with my Axiom Push Chair? We do not recommend this, it is just too easy to lose control and cause possible harm to your passenger or yourself Is the fabric on my Axiom Pushchair washable? Yes! The seat, canopy and basket are removable and machine washable in cold water with mild detergent. - Page 3 Remove the Axiom from the box and unwrap all the component pieces. Now unfold the Axiom into its upright use position Your Axiom is equipped with a primary and secondary folding lockout. When the Axiom is folded into its use position, the primary folding lockout will engage (you may hear a “click”...
- Page 4 To fold your AXIOM remove the pin from the secondary folding lockout. Installed: Removed: Now locate the Primary folding lockout release lever located on the left side upright of the AXIOM. Primary Release Latch Lever Squeeze the primary folding lockout release lever one time. Now push down on the handle to start the AXIOM folding. Folded with wheels on...
-
Page 5: Wrist Strap
To fold the AXIOM smaller, remove the wheels To install or remove the rear wheels simple push the button on the outside of the wheel and hold it in while either installing it into the AXIOM axle assembly or removing it. Adjustable Height Handle Your pushchair is equipped with a height adjustable handle. -
Page 6: Rear Wheel Installation
Rear Wheel Installation ...insert the wheel axle all the way into the First unlock the rear foot brake by pushchair frame and pulling the black loop upward release the button. Now repeat to install the other wheel. Check to make sure your wheels are Next, push the black locked in before... -
Page 7: Seat Recline
Adjustments Seat Recline To recline the seat, simply slide the two straps behind the seat. To put the seat back to the upright position, pull the webbing taut until in the upright position. Foot Well Your Axiom pushchair features footwells that are independently adjustable to passenger comfort. -
Page 8: Harness Adjustment
Harness Adjustment You will want to do a one time general positioning of the harness before placing the passenger in the seat. Once the passenger is in the seat then do the final harness adjustments as follows: Push down on the silver center Undo both the button located between the buckles from the... -
Page 9: Maintenance
Maintenance We recommend that you have an experienced dealer perform these maintenance check at least once each year. Lubrication of these following items is necessary: Pivot point and cable of hand brake Insert in frame for rear wheels Pivot point and cable of brake caliper Wheel hub and bearings of rear wheels Front wheel axle Locking bars of folding mechanism... - Page 10 Foam grips, inner tubes, tires and brake pads are specifically excluded. Adaptive Star will, at its option, repair or replace defective parts upon delivery to our service center accompanied by proof of date of first consumer purchase, such as a copy of a sales receipt. Please refer to the store where you made your purchase for returns and refunds as Adaptive Star does not give direct refunds.
