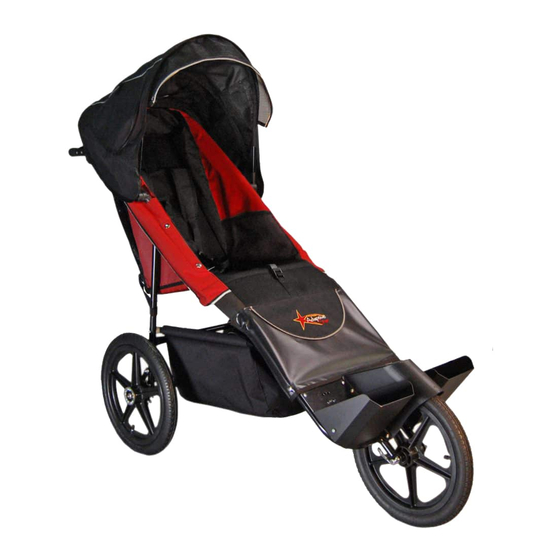

Adaptive Star AXIOM Endeavour Assembly, And Care Manual
Indoor / outdoor mobility pushchair
Hide thumbs
Also See for AXIOM Endeavour:
- Assembly, and care manual (11 pages) ,
- Owner's manual (15 pages)
Related Manuals for Adaptive Star AXIOM Endeavour
Summary of Contents for Adaptive Star AXIOM Endeavour
- Page 1 AXIOM Endeavour INDOOR / OUTDOOR MOBILITY PUSHCHAIR Assembly and Care Manual Size 2, 3, & 4 www.adaptivestar.com 1-800-278-9626 It is important to use the product Manual during the assembly process!
-
Page 2: Frequently Asked Questions
Frequently Asked Questions Can I roller blade with my Axiom Push Chair? We do not recommend this: it is just too easy to lose control and cause possible harm to your passengers or yourself. What if I break my Axiom Pushchair? No problem! Just call us for help at 1-800-278-9626. - Page 3 Tools you will need: 5/16 wrench: For tightening the nuts on the fender. 7/16 Wrench: To tighten the nylon nut on the back of the foot buckets. 7/32 Allen Wrench: used to install and remove the fasteners with a hexagonal head on the foot buckets. Remove the Axiom from the box, cut all zip ties and unwrap all the component pieces.
- Page 4 To fold your Axiom, remove the safety pin from the secondary folding safety feature. Installed: Removed: Now unfasten the front basket straps on the bottom of chair, unbutton the seat anchor strap located under the release lever, and locate the primary folding release lever located on the left side upright of the Axiom.
- Page 5 To fold the AXIOM smaller, remove the wheels. To install or remove the rear wheels simply push the button on the outside of the wheel and hold it in while either installing it into the AXIOM axle or removing it. Be sure the rear foot brake is in the upright position when installing or removing the wheels.
- Page 6 Rear Wheel Installation Next, push the black button and while holding it in. First unlock the rear brake by Pulling the black loop upwards Insert the wheel axle all the way into the pushchair frame and release the button. Now repeat to install the other wheel.
- Page 7 Foot Bucket and Fender are in their own box packed inside the box with the chair Now find the front wheel fender and install it onto the four bolt studs as shown in the photo. Note: the retaining nuts for these bolts have been installed for shipping. Please remove them for installing the fender.
-
Page 8: Wrist Strap
Adjustable Height Handle Your pushchair is equipped with a height adjustable handle. To adjust the handle to best suit your comfort, simply press the buttons located on the inside of the handle near the end of the foam handle grip. While holding the buttons in, adjust the handle up or down to the height that is correct for you. -
Page 9: Front Brake Adjustment
Adjustments Seat Recline To recline the seat, simply slide the two straps behind the seat. To put the seat back to the upright position, pull the webbing taut until in the upright position. Foot Well Your Axiom pushchair features footwells that are independently adjustable to passenger comfort. -
Page 10: Harness Adjustment
Adjust the chest strap to a comfortable length and connect the buckles. Please visit our YouTube channel Adaptive Star Mobility, to see our instruction video. If the harness is too small for the passenger harness extensions are available for purchase. -
Page 11: Maintenance
Maintenance We recommend that you have an experienced dealer perform these maintenance check at least once each year. Lubrication of these following items is necessary: Pivot point and cable of hand brake Insert in frame for rear wheels • • Pivot point and cable of brake caliper Wheel hub and bearings of rear wheels •... - Page 12 All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Adaptive Star will not be liable for any incidental, consequential, or other damages, including, without limitation, damages resulting from loss of use. Always keep the box the chair came in until you know the chair is complete in working order.
