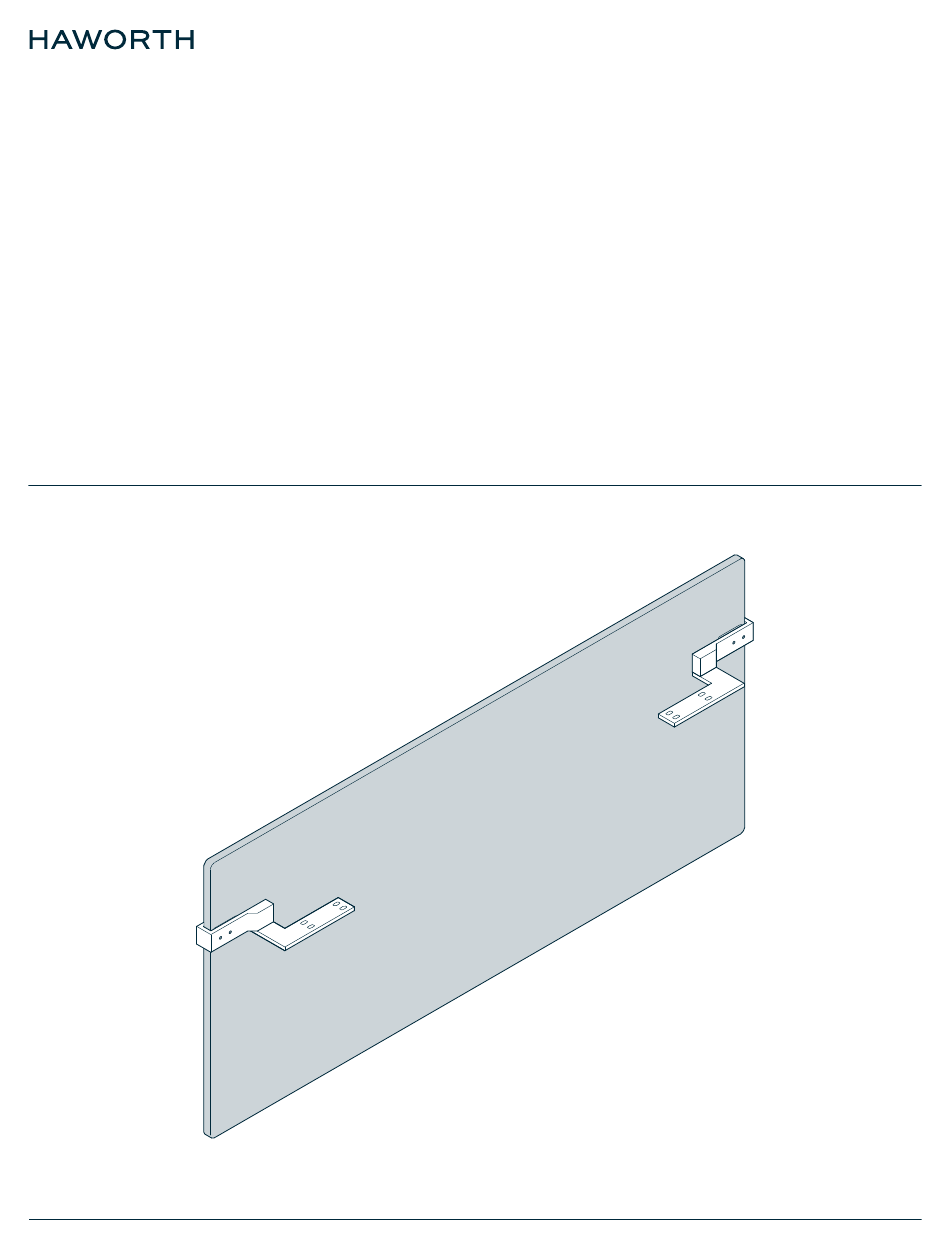

Belong
Assembly Instructions
Congratulations on your
purchase of a new Belong
Back Screen!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to create a dedicated workspace just for you?
We know you want to get up and running as soon as possible, but
before you dive right into setting up your screen, be sure to:
1. Grab a friend to help you with the lifting. They can also help you
hold parts in place during assembly to make things a little easier.
2. Make sure you have all your parts and hardware, and gather the
necessary tools and safety equipment.
3. Follow all the steps carefully before using your screen.
That's it! Once you've got your screen installed, you'll be ready to get
down to business with a fresh, new space that's dedicated to helping
you stay productive.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Belong and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth Belong

Summary of Contents for Haworth Belong

  • Page 1 That’s it! Once you’ve got your screen installed, you’ll be ready to get down to business with a fresh, new space that’s dedicated to helping Back Screen! you stay productive. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
  • Page 2 Belong Fabric Back Screen with Modesty Assembly Instructions Tools Required 3/32" Assembly Overview S168 S169 S170 Scale 1 : 1 2 Qty. (S168) #10 x 1/4” Set Screw 2 Qty. (S169) #10 x 3/4” Set Screw 2 Qty. (S170) #10 x 3/4” Flat Head Screw 8 Qty.
  • Page 3 Belong Back Screen Assembly Instructions (A) Back Screen (B) Back Grip - LH (C) Back Grip - RH (D) Back Mount Plate (E) Grip Plate (S168) #10 x 1/4” Set Screw - Qty. 2 (S169) #10 x 3/4” Set Screw - Qty. 2 (S170) #10 x 3/4”...
  • Page 4 Belong Back Screen Assembly Instructions Assemble mounting brackets using mount plates (D) and back grips (B & C) as shown Left Hand Right Hand S170 S170 2 Qty. (S170) #10 x 3/4” Flat Head Screw Attach mounting brackets to screen (A) as shown...
  • Page 5 Belong Back Screen Assembly Instructions Attach screen (A) to underside of desk as shown Front View NOTE: The screen must be 4-3/4” oriented with the brackets Screen Height Nominal (Actual) positioned closer to the top. 12-13/16” 19” (18.75”) The majority of the screen will extend below the desk.
