Haworth BELONG Installation Instructions

Three sided screen
Hide thumbs Also See for BELONG:
1
2

Advertisement

Table of Contents

Tools Required

FULL WRAP SCREEN
1

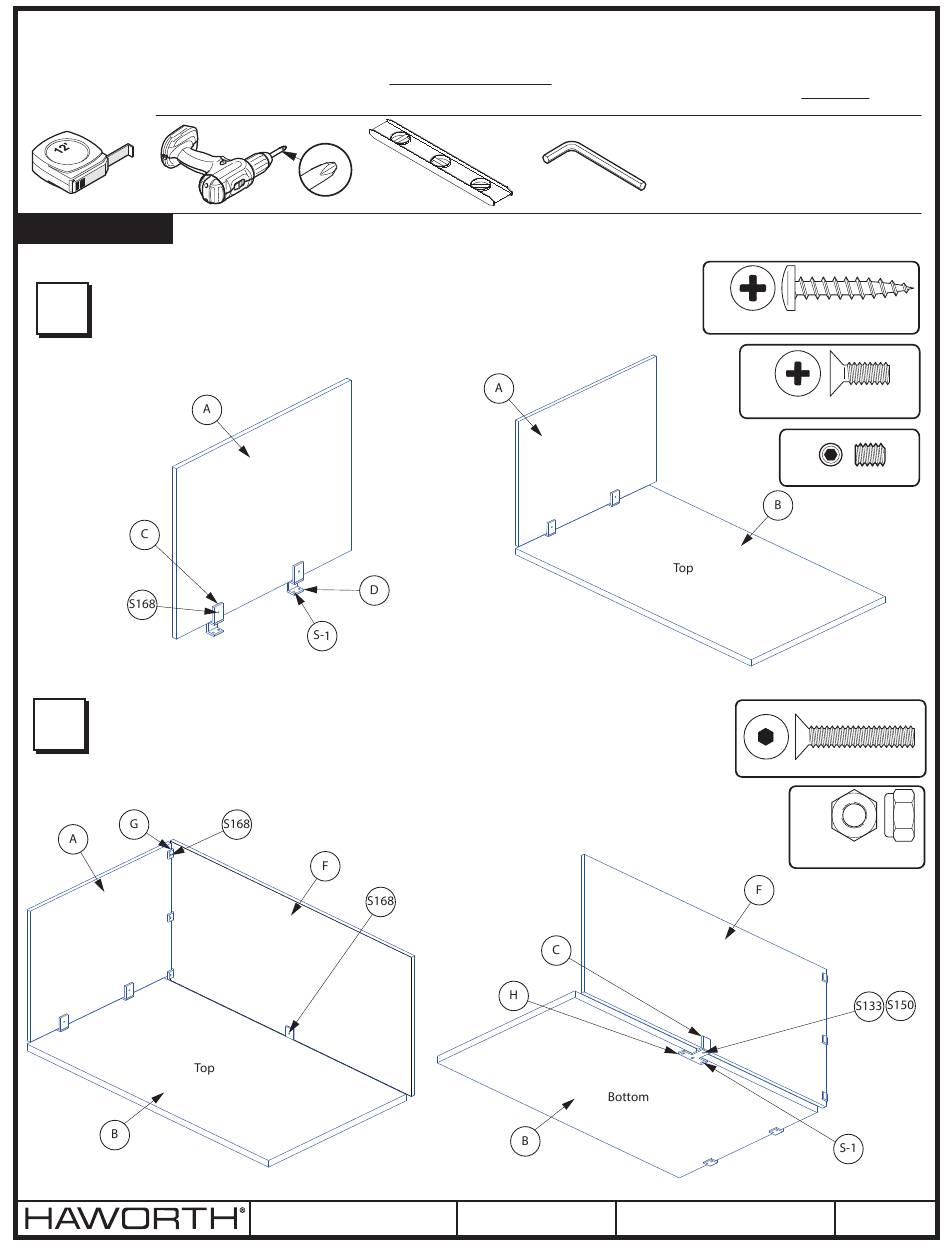

Attach Side Screen (A) to Surface (B) using U-Bracket (C) and Clamp Bracket (D).
Line up the front edge of Side Screen (A) with the front edge of Surface (B).
Attach Clamp (D) to U-Bracket (C) using Flat Head Screw (E). Screw U-Bracket (C)
to Screen (A) using Set Screw (S168).
2
Attach Rear Screen (F) to Side Screen (A) using Corner Bracket (G) and attach to
Surface (B) using U-Bracket (C) and T-Bracket (H). Center and screw T-Bracket to
bottom of Surface (B).
CUSTOMER SERVICE PHONE: 1-800-426-8562
Three Sided Screen
Installation Instructions
Reference 7029-9712 for standard attachment and connection details.
E.C.O. No:
819-192
BELONG®
1 of 2
Page:
No Scale
(S-1)
#10 x 1" Pan Head Screw
(E)
#10-24 x 1/2" Flat Head Screw
(S168)
#10-24 x 1/4" Set Screw
(S133)
#10-24 x 1" Flat Head Screw
(S150)
#10-24 Self Locking
Part No:
7428-2960
Hex Nut
Rev:
B
