INSTALLATION
VOL/AUDIO
PUSH
ADJ
ON/OFF
MANUAL
Audiovox Specialized Applications, LLC
HEAVY-DUTY VEHICLE
ENTERTAINMENT SYSTEM
23319 Cooper Drive
Elkhart, IN 46514
1-800-688-3135
www.asaelectronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEXTGEN and is the answer not in the manual?

Questions and answers

Summary of Contents for Audiovox NEXTGEN

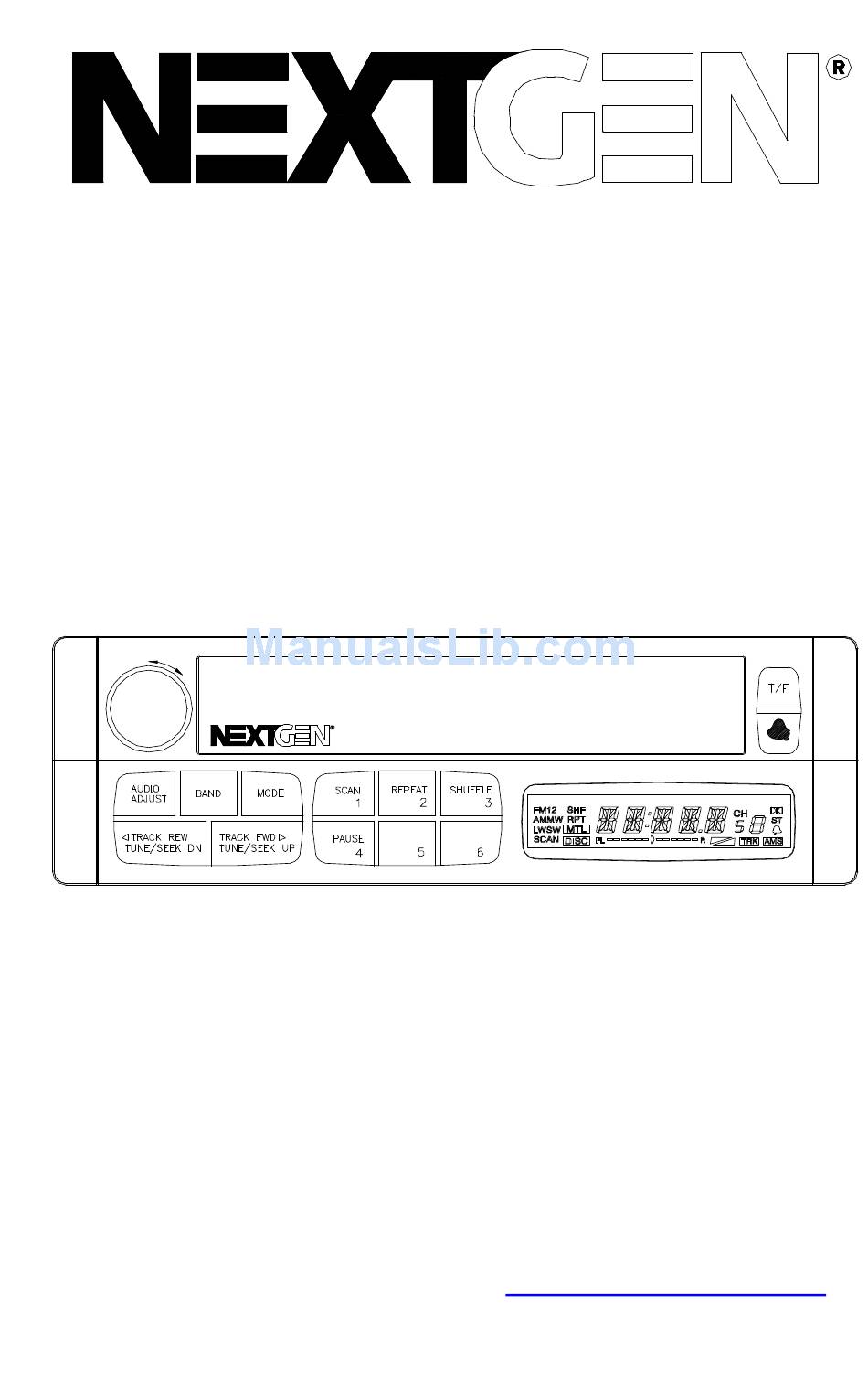

  • Page 1 INSTALLATION MANUAL VOL/AUDIO PUSH ON/OFF HEAVY-DUTY VEHICLE ENTERTAINMENT SYSTEM Audiovox Specialized Applications, LLC 23319 Cooper Drive Elkhart, IN 46514 1-800-688-3135 www.asaelectronics.com...
  • Page 2 Content List: 1) Nextgen Main Chassis Hardware Kit Wiring Harness Installation Manual Hardware Kit FLANGE NUTS 5 AMP 1 AMP DIN SLEEVE MOUNTING STRAP REMOVAL TOOL MOUNTING SCREW MOUNTING BUSHING Wiring Color Code 2-Bond Gray Left Front (-) Pair Gray/White Left Front (+) Orange/White Ignition...
  • Page 3 INSTALLATION INSTRUCTIONS- DIN RADIO This unit is designed for installation in vehicle cabs with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops.
  • Page 4 CAUTION: The rear of the radio must be supported with the strap to prevent damage to the dashboard from the weight of the radio or improper operation due to vibration. INSTALLATION USING KITS 1. If your radio requires the use of an installation kit to mount this radio, follow the instructions included in the kit to attach the radio to the mounting plate supplied with the kit.
  • Page 5 NEXTGEN CONFIGURATION The Nextgen radio can be programmed to change options and factory settings. Follow the steps outlined in the following pages to modify the radio as required for the options installed and for the mode of operation intended. SETTING THE CLOCK FOR 12 OR 24 HOUR DISPLAY Hold down the AUDIO ADJUST button for greater than 3 seconds.
  • Page 6 CONFIGURATION con’t. CONFIGURATION OF WORLD BAND TUNER Hold down the AUDIO ADJUST button for greater than 3 seconds. The unit will then enter the general configuration menu. To enter the tuner configuration menu, press preset 4, then preset 2. “CC--**” will show up on the display (where ** can equal 11, 12, 14, 15, 16, or 21).
  • Page 7 CONFIGURATION- con’t. CONFIGURATION OF TUNER SEEK SENSIVITY SETTING The scan sensitivity feature is designed to give flexibility during the tuner seek function. The tuner can be configured such that during seek, it will stop on strong stations, ignoring weaker signals. The tuner can also be configured to stop at all weak signals.
  • Page 8 WIRING DIAGRAM See page 1 for color code TO ANTENNA DIN CONNECTOR SEE PAGE 4 FOR LOW LEVEL AUDIO INPUT PINK (TRIGGER) - SEE CHART C *SPEAKER WIRES ARE BONDED PAIRS NEGATIVE GRAY WIRES PAIRED WITH RESPECTIVE POSITIVES *SOLDER AND TAPE ALL SPLICES 4 PIN CABLE 9 PIN CABLE CONNECTOR...
  • Page 9 WIRING DIAGRAM – con’t. CAUTION- Connect all speakers before turning the radio on. This radio is designed to operate with a minimum of two speakers. CHART A- Green/White Wire This wire maintains the pre-set memories and clock time. CHART B- Orange/White Wire This wire is connected to the “Accessory “...
  • Page 10 CONFIGURATION- con’t. CAUTION- DO NOT ATTEMPT TO INSERT A CD BEFORE THE RADIO HAS BEEN PROPERLY CONFIGURED FOR CD. THIS WILL CAUSE IMPROPER OPERATION AND MAY CAUSE LOCK UP. IF LOCK UP OCCURS, REMOVE THE CD MECHANISM FROM THE RADIO AND POWER THE UNIT WITHOUT THE MECHANISM IN PLACE.
  • Page 11 OPTIONAL MODULE INSTALLATION 1. Remove endcaps and loosen front escutcheon screws from the faceplate, carefully removing the faceplate. 2. Carefully remove knockout by un-snapping the top and bottom center clips and discarding the knockout.
  • Page 12 INSTALLING THE CD MODULE (NGMCD2) CAUTION: DO NOT INSERT CD UNTIL THE RADIO CONFIGURATION IS COMPLETE! Refer to page 11 configuration instructions. CD1. For installation of CD module (NGMCD2), follow steps 1-3 on page Insert the CD Module into the Nextgen chassis until it clicks in place.
  • Page 13 CD4. Re-Install faceplate taking care not to pinch wiring from the CD Module chassis. Press the faceplate on the lower bottom center to seat the 18-pin connector before tightening escutcheon screws. Replace endcaps. INSTALLATION OF THE CASSETTE MODULE (NGMMC2) MC1. For installation of the Nextgen Cassette Module, follow steps 1-3 on page 4.
  • Page 14 18-pin connector before tightening escutcheon screws. Replace endcaps. Unlike household electronics, all of our products have been specifically tested for the mobile environment and are only available through ASA. To order any of our products, please contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135.
