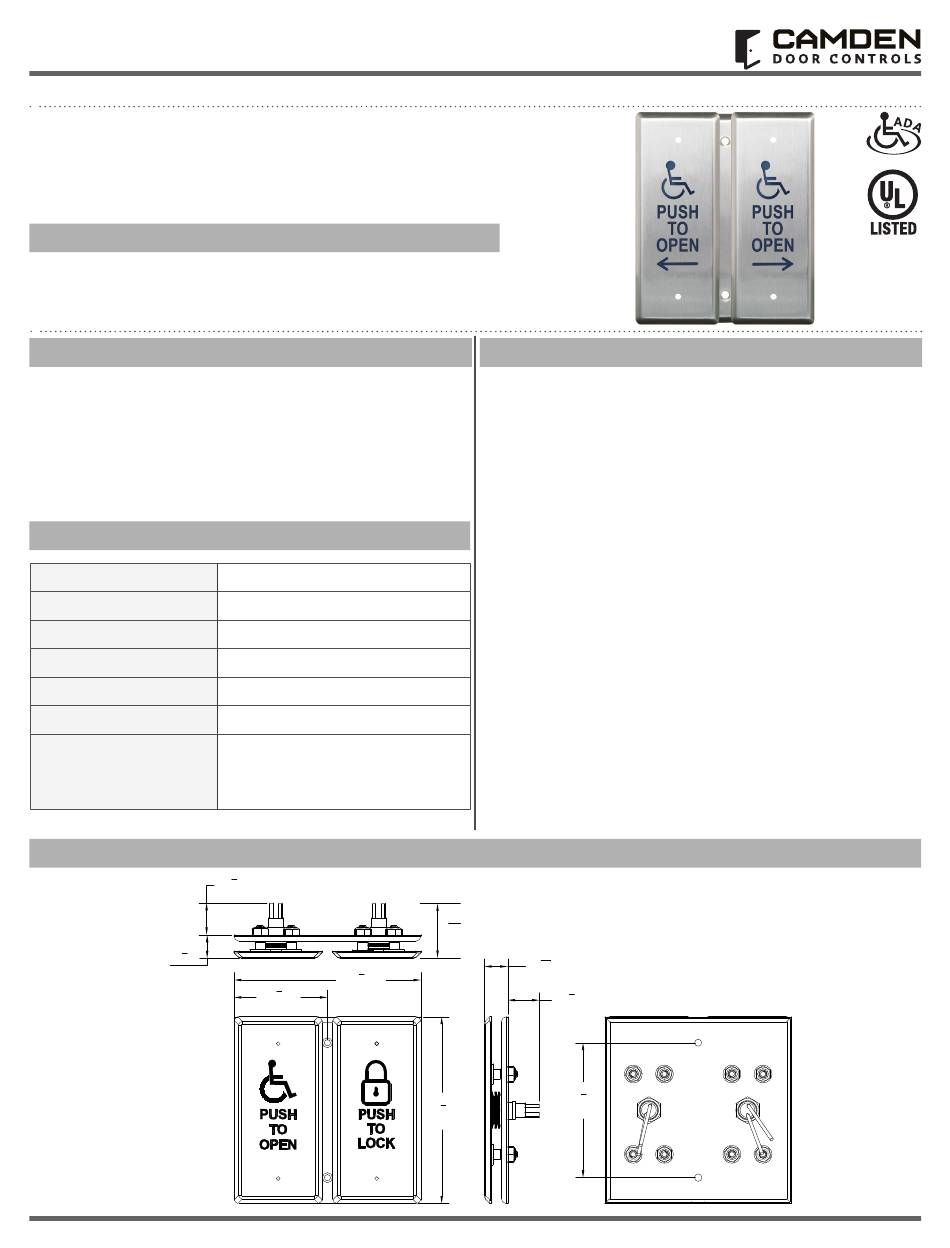

CAMDEN CM-2520 Series Installation Instructions

Door Activation Devices
CM-2520 Double Gang Vestibule Push
Plate Switches
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
(1) "All Active" Push Plate
(1) Parts kit
1. GENERAL DESCRIPTION
Camden Door Controls CM-2520 Series combination switches are
heavy-duty, ADA-compliant door controls. The 4 1/2" x 4 1/2"
rectangular faceplates are stainless steel, and the assembly is
designed for easy installation directly on a double gang electric
box. The push plate switch is rated 3 AMP @ 30V DC and provides
virtually silent operation.
2. SPECIFICATIONS
Voltage
Contact Type
Switch Type
Contact Rating
Temp. Range
Std. Finish
Dimensions
4. DIMENSIONS
5
8 ''
(14mm)
12/24V AC/DC
N/O SPST
Momentary
3A @ 30V DC
-40°F to 140°F (-40°C to 60°C)
CM-2520: US32/C32D
CM-2520 SERIES:
4 1/2'' H x 4 1/2'' W x 1 5/16''D
(114mm x 114mm x 33mm)
3
4 ''
(19mm)
4 1 2 ''
2 1 4 ''
(114mm)
(57mm)
3. APPLICATION
Camden switches are designed for areas where an easy-to-activate,
high-visibility switch is desired. Ideal for high-traffic areas, hospitals,
wheelchair access, seniors' residences, etc. They can be surface or
flush mounted.
Camden combination key switch and push plate switches are de-
signed to control electric strikes, electromagnetic locks and automatic
doors. The keyswitch may be used for "after hours" entry in an
apartment application or to turn an automatic door ON/OFF. They
may also be used for shunting, bypassing alarms, request to exit,
timed functions and many other applications.
Camden vestibule switches are designed to control two automatic
doors in vestibules. The switches are made for high frequency usage
for both indoor and outdoor environments. Camden switches are
versatile and can be supplied in various configurations and finishes
to suit any commercial, industrial or institutional application.
5
1 ''
16
(33mm)
9
16 ''
(14mm)
3
4 ''
(19mm)
3 1 4 ''
4 1 2 ''
(83mm)
(114mm)
