Christie 1522 Product And Assembly Manual

Modular cabinet standard and large
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

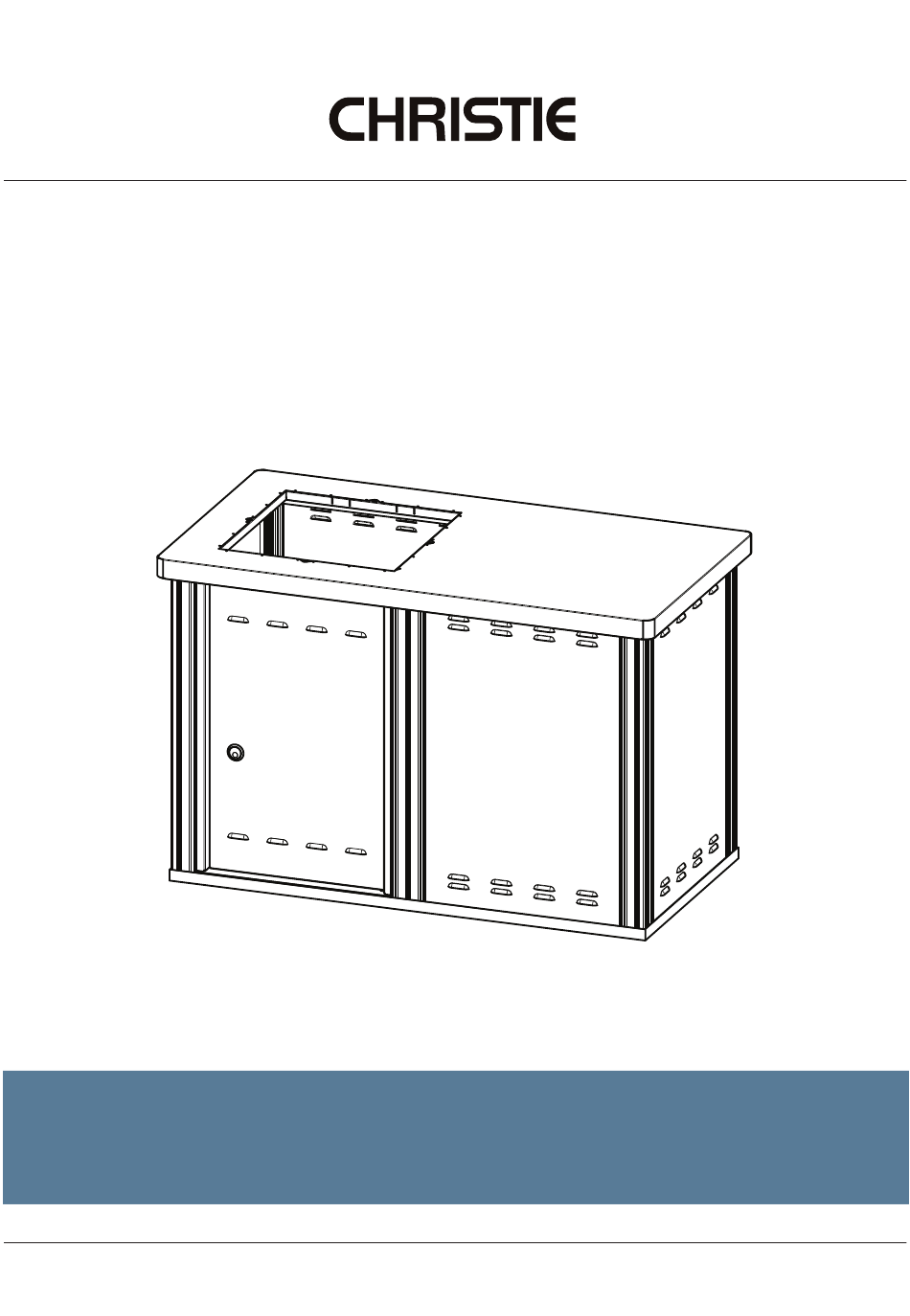

Product and Assembly Manual
Product numbers 1522, 1525, 1532,1535
+61 3 9708 2999
dachristie.com
Modular Cabinet
Standard and Large
Please read all relevant parts of
this document carefully before
commencing product assembly.
Product and Assembly Manual 6820_01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Christie 1522

Summary of Contents for Christie 1522

  • Page 1 Modular Cabinet Standard and Large Product and Assembly Manual Product numbers 1522, 1525, 1532,1535 Please read all relevant parts of this document carefully before commencing product assembly. +61 3 9708 2999 dachristie.com Product and Assembly Manual 6820_01...

  • Page 2: Table Of Contents

    Figure 13, 14 Large Cabinet - boxed contents and parts identification | Figure 15 Assembly and installation | Figure 16, 17, 18, 19, 20, 21 OPTIONS AND ACCESSORIES WARRANTY Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)

  • Page 3: General Information

    General information | Product and Assembly Manual 6820_01...

  • Page 4: Safety Instructions

    “Should’ and “should not” are advisory instructions The following icon is used throughout the manual Warning or Caution icons warn how to prevent personal injury and product damage Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)

  • Page 5: Manufacturer's Liability

    (2019) Australian and European directives • When disposing of the product, please remove and deliver the metal components to an appropriate recycling facility • Christie appliances are packaged in non-polluting and recyclable materials. Please recycle according to local regulations Product and Assembly Manual 6820_01...

  • Page 6: Specifications

    | Specifications SPECIFICATIONS Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)

  • Page 7: Siting Guidelines

    The Christie Modular barbecue cabinets are constructed from extruded aluminium, and stainless steel for ultimate durability and corrosion resistance. Christie Modular cabinets are available with a range of options and combinations including doors, dividers, sinks and cooktops. Note: All illustrations and instructions apply only to standard cabinets. Some assembly and parts supplied for custom configurations may vary from what is specified in this manual.

  • Page 8: Assembly And Installation

    | Standard cabinet assembly and installation MODULAR STANDARD CABINET assembly and installation (For Modular Large Cabinet installation, see Section 4) Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 9 Standard cabinet assembly and installation | 3.1 Standard Cabinet - dimensions Dimensions: 1390 mm width x 750 mm depth x 900 mm height Weight: 92 kg (without cooktop) Cooktop cut-out: 495 mm x 495 mm 1390 mm FIG. 1 1334 mm FRONT 750 mm 692 mm...

  • Page 10: Standard Cabinet - Services And Footings | Figure

    Position the gas or electric services relative to the preferred location and orientation of the cooktop(s) tooltip FIG. 2 1334 mm ANCHOR POINTS (12) 90 mm 400 mm 90 mm 1190 mm Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 11 Terminate services for standard cabinet configurations in the locations highlighted in blue, below. These locations will differ, depending on whether gas or electric cooktops are installed. For Christie CC2 Gas Barbecue Cooktop: • The gas inlet is on the right-hand side when facing the front of the cooktop •...

  • Page 12: Standard Cabinet - Boxed Contents And Parts Identification | Figure

    (1) x Pair of access door keys (supplied attached to access door) – (Not shown) 10. (48) x 10G Self tapping screws (Not shown) 11. This Product and Assembly Manual Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 13 STEP 1 Open the carton and review the boxed contents section relevant to your product model. Check that all listed parts are present. Contact Christie immediately if you notice any discrepancies. STEP 2 Open the benchtop carton and unpack the channel frames by removing all 6 mm retaining nuts with a 10 mm spanner.
  • Page 14 Secure the top channel frame using (24) x 10G self tapping screws. Important: Insert the vertical posts so that the panel guides face outwards. Note: Do not fix the bottom channel frame until Step 8. FIG. 5 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 15 Standard cabinet assembly and installation | 3.4 Assembly and installation STEP 4 The cabinet frame must be turned over before fixing. Do not locate fixings where the access doors are located. The bolt head will prevent the door from seating correctly into the frame. Roll the cabinet frame over so that the fixed channel frame is on the ground.
  • Page 16 Install the panel into place between the two vertical posts using the supplied (4) x self-tapping screws to create a separate compartment for the gas bottles. FIG. 7 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 17 Standard cabinet assembly and installation | 3.4 Assembly and installation STEP 6 WARNING: Services must only be connected by a suitably qualified person i.e. electrician or gas fitter. If your installation has 240v Power outlets (GPO’s), install these now. Complete the gas provisioning (if required).
  • Page 18 Replace the top channel frame. Secure the channel frame using (24) x 10G self tapping screws. Note: A rubber mallet may assist in getting the frame to seat correctly. FIG. 9 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 19 Standard cabinet assembly and installation | 3.4 Assembly and installation STEP 9 Remove the benchtop from the carton and gently lower it onto the cabinet. Ensure that the locating tabs on the underside of the benchtop slide into the corresponding slots in the channel frame. Secure the benchtop to the frame using the (4) x 6 mm nuts provided (removed in Step 2).
  • Page 20 Install the waste container bracket (supplied separately) as per assembly instructions • Slide the waste container onto the waste container bracket. If you are using a Christie Easy Drain Grease Trap, ensure that the tap faces the cabinet door •...

  • Page 21: Assembly And Installation | Figure

    Large cabinet assembly and installation | MODULAR LARGE CABINET assembly and installation Product and Assembly Manual 6820_01...
  • Page 22 Dimensions: 2035 mm width x 750 mm depth x 900 mm height Weight:126 kg (without cooktop) Cooktop cut-out: 495 mm x 495 mm 2035 mm FIG. 12 FRONT 1976 mm REAR 750 mm SIDE 692 mm Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 23 Large cabinet assembly and installation | 4.2 Large Cabinet - services and footings WARNING: All work on underground services must be carried out only by suitably qualified trades people i.e. electricians or gas fitters. Footings and underground services: • Bring up underground services (electrical conduits, gas and water pipes and waste outlets) in the highlighted areas only •...
  • Page 24 The 1m electric cable with plug terminates into the left-hand side when facing the front of the cooktop • Position the 15A electrical socket (GPO) at least 600 mm above ground FIG. 14 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 25 Large cabinet assembly and installation | 4.3 Large Cabinet - boxed contents and parts identification FIG. 15 Christie Large Modular Cabinets are supplied with the following boxed contents: (1) x Stainless steel benchtop (2) x Channel frames (supplied attached to the benchtop)
  • Page 26 STEP 1 Open the carton and review the boxed contents section relevant to your product model. Check that all listed parts are present. Contact Christie immediately if you notice any discrepancies. STEP 2 Open the benchtop carton and unpack the channel frames by removing all 6 mm retaining nuts with a 10 mm spanner.
  • Page 27 Large cabinet assembly and installation | 4.4 Assembly and installation STEP 3 Assemble the bottom channel frames and posts before fixing into the final position. Once the assembly is complete, it will be turned over by 180 degrees. Locate the (2) x channel frames, (4) x vertical posts and (4) x corner posts. Assemble the channel frames and corner posts.
  • Page 28 Important: It is critical to the operation of the appliance that the cabinet is stable and level. Use packers to resolve minor leveling discrepancies or a bed of mortar for larger gaps. FIG. 17 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 29 Large cabinet assembly and installation | 4.4 Assembly and installation STEP 5 Remove the unsecured channel frame from the top of the posts. Identify the location of the access doors. Do not install panels into this space. Install the stainless steel fascia panels. Lift the panels and slide them into the channel guides between two posts.
  • Page 30 Unpack the access door and slide it into the channel guides between the two posts. Locate the keys and place them into the door lock. Lock the door latch into the open position. FIG. 19 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 31 Large cabinet assembly and installation | 4.4 Assembly and installation STEP 8 Replace the top channel frame. Secure the channel frame using (32) x 10G self tapping screws. Note: A rubber mallet may assist in getting the frame to seat correctly. FIG.
  • Page 32 Secure the benchtop to the frame using the (6) x 6 mm washers provided (removed in Step 2). Remove the protective film from the benchtop. FIG. 21 Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 33 Install the waste container bracket (supplied separately) as per assembly instructions • Slide the waste container onto the waste container bracket. If you are using a Christie Easy Drain Grease Trap, ensure that the tap faces the cabinet door •...

  • Page 34: Options And Accessories

    | Options and accessories Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 35 Options and accessories | BARBECUE COOKTOPS CC2 Electric Barbecue Cooktop CC2 Gas Barbecue Cooktop: Natural gas, Liquid petroleum gas, or Universal LPG CC2-i Electric Smart Barbecue Cooktop CC2-i Gas Smart Barbecue Cooktop OPTIONS Sink Additional Access Door for a storage compartment Gas Bottle Storage Kit GAS BOTTLE STORAGE KIT FOR STANDARD CABINET, consisting of: (1) x Gas bottle access door...

  • Page 36: Warranty

    | Warranty WARRANTY Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 37 (including the Competition and Consumer Act 2010) and which by law cannot be excluded, restricted, or modified. D.A. CHRISTIE PTY. LTD. (“the Company”) warrants that the products manufactured by it are of merchantable quality. The warranty is not transferable and applies only to the original purchaser.
  • Page 38 Repairs MUST NOT be carried out without prior approval of the Company. No responsibility will be accepted for repairs made without authorisation Date of purchase Installed by Installation date Address/Location Modular Series Cabinet Standard and Large (Product numbers 1522, 1525, 1532, 1535)
  • Page 39 Product and Assembly Manual 6820_01...
  • Page 40 +61 3 9708 2999 dachristie.com Installation and User Manual 6820_01...
