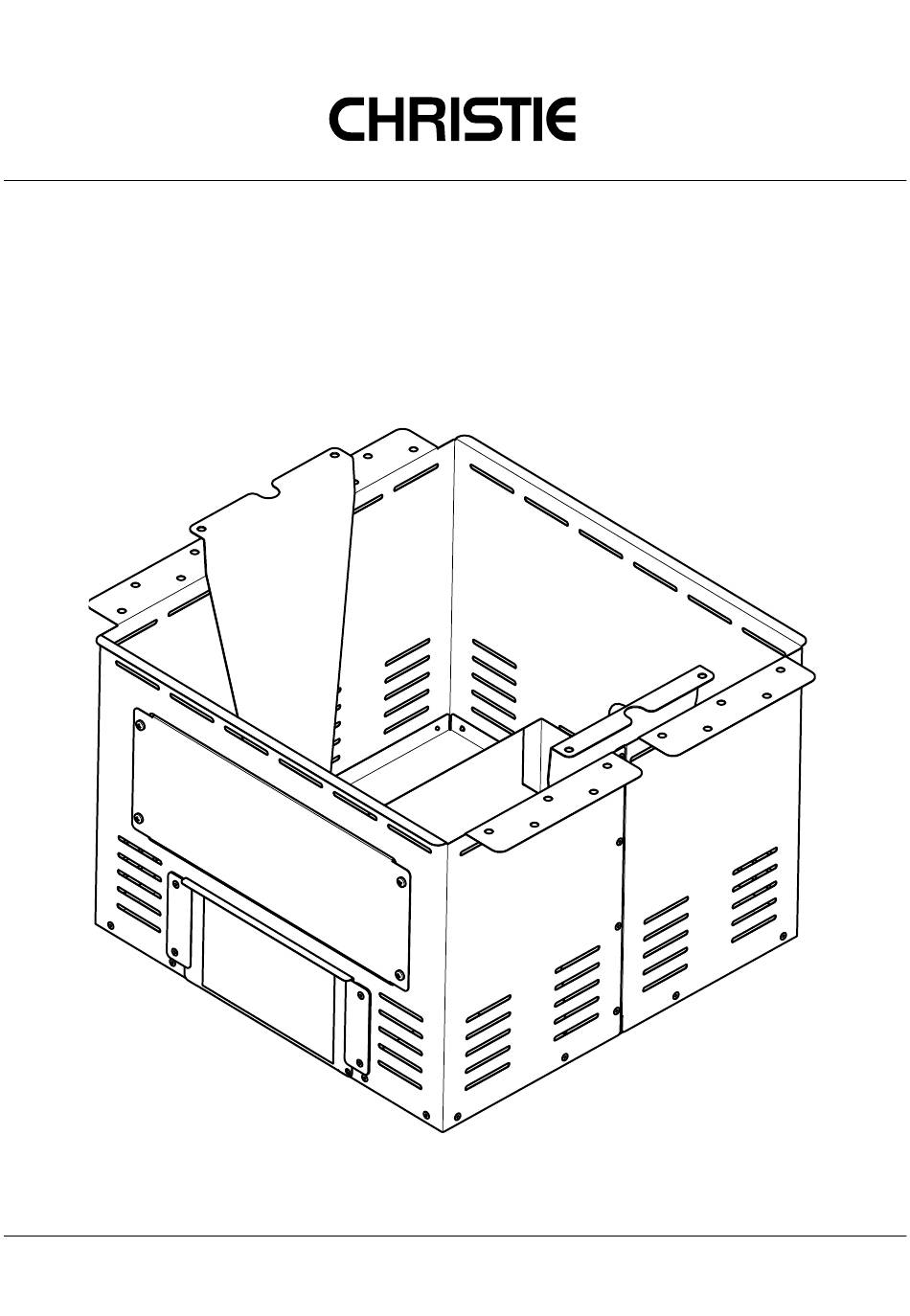

- Page 1 Open Bench Kit Installation Instructions +61 3 9708 2999 dachristie.com Installation Instructions 6906_01...
-
Page 2: Safety Instructions

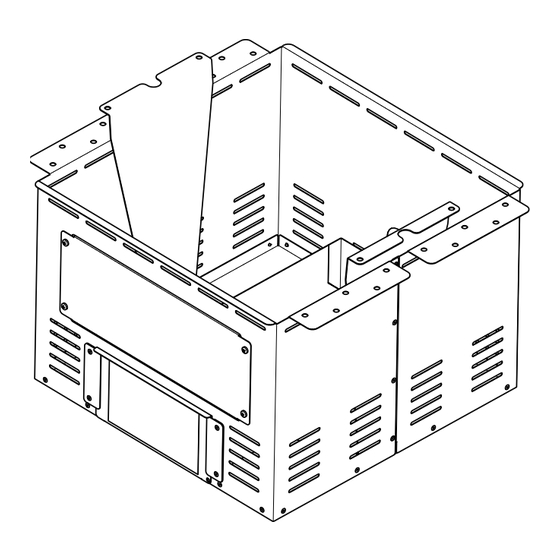

2 | Open Bench Kit Installation Instructions Description The Open Bench Kit allows a Christie barbecue cooktop to be mounted in an open benchtop or a BBQ enclosure without a door. It features a small container to collect and dispose of cooking waste. -
Page 3: Specifications
Open Bench Kit Installation Instructions | 3 Specifications Dimensions: 574 mm Width 480 mm Depth 480 mm Height 342 mm Mounting Flange: Width 574mm Depth 504 mm Weight: 11 kg Front 480 mm Side 480 mm Installation Instructions 6906_01... -
Page 4: Boxed Contents
4 | Open Bench Kit Installation Instructions Boxed contents The following contents are supplied with a Christie Open Bench Kit: (1) x Open Bench Kit Assembly (2) x Mounting Brackets (1) x Waste Tray (1) x Installation Instructions and User Manual (Not Shown) -
Page 5: Installation
Open Bench Kit Installation Instructions | 5 Installation STEP 1 Prepare the cooktop for installation. Position cooktop upside down to allow access to the hold down brackets Remove (2) x 10mm brass nuts, lock washers and flat washers from each hold down bracket... - Page 6 6 | Open Bench Kit Installation Instructions Installation STEP 3 Install Open Bench Kit assembly to benchtop. Lower the assembly into benchtop cutout. Ensure that the waste container is facing in the correct direction. NOTE: The flanges must sit flush with bench.
- Page 7 Tighten all nuts to 20Nm STEP 6 Connect cooktop to mains power. Remove service cover from Open Bench Kit assembly Pass the 240V 15Amp cooktop plug through the 46mm hole in back of the Kit assembly and plug into 15Amp general power outlet (GPO)
- Page 8 Your local or national Environmental Protection authority should be contacted for advice on how to safely dispose of fats and oils. Cleaning and General Maintenance To preserve the appearance and integrity of your Christie Open Bench Kit, we recommend that it is cleaned weekly and inspected every 12 months. •...
