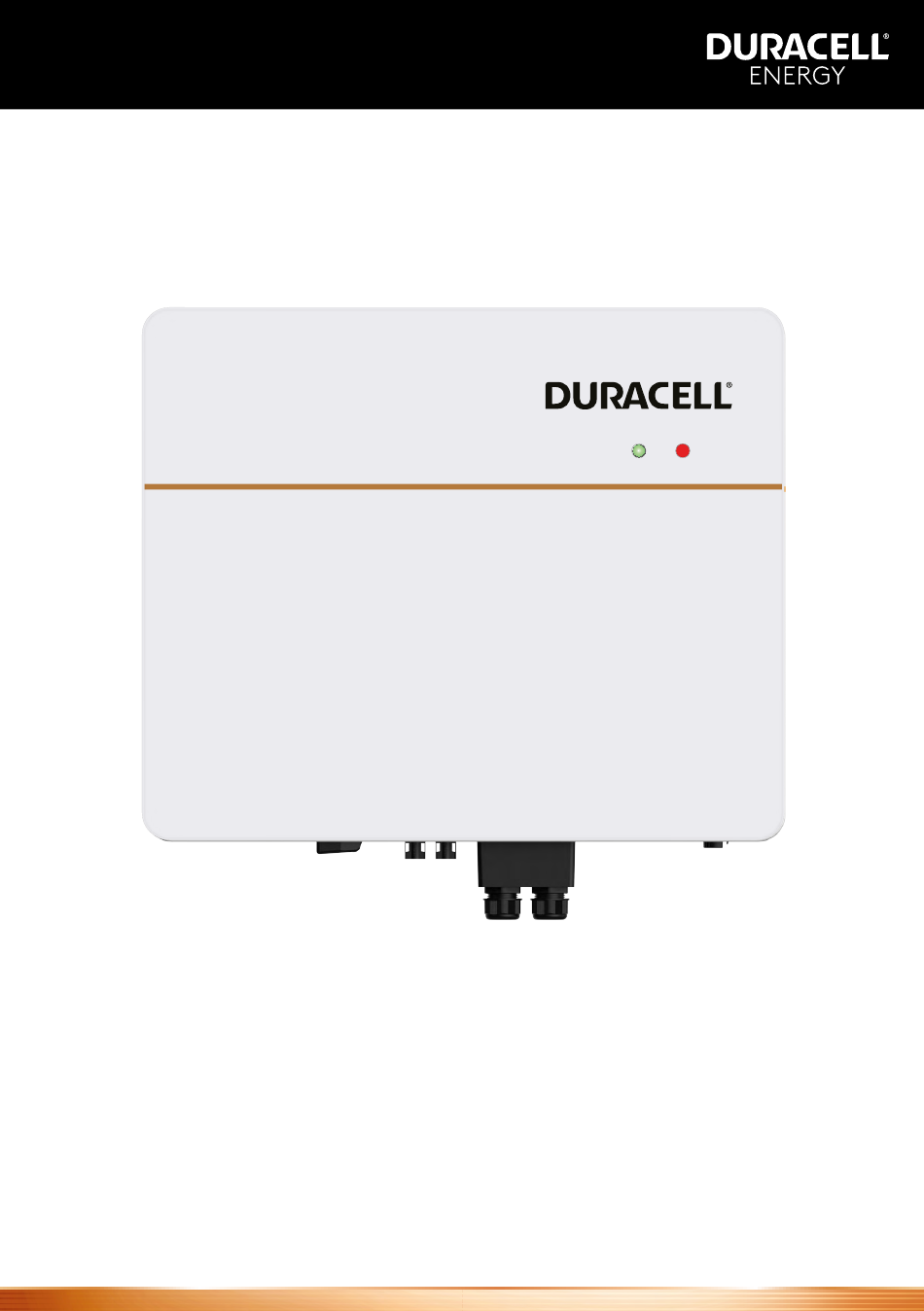

- Page 1 Dura-i Single Phase ESS Inverter Standard Install Setup Guide...
- Page 2 Duracell is a registered trademark of Duracell Batteries BV and Duracell U.S. Operations, Inc., used under license. All rights reserved. Manufactured under license and warranty supported by Puredrive Energy Limited in Toddington,UK. NOTE: NEITHER DURACELL BATTERIES BV, DURACELL U.S. OPERATIONS, INC., NOR ITS AFFILIATES ARE INVOLVED IN THE DESIGN, MANUFACTURE, MARKETING OR DISTRIBUTION OF THE PRODUCTS AND THEY DO NOT MAKE ANY (AND HEREBY DISCLAIM ALL) EXPRESS OR IMPLIED WARRANTIES RELATING TO THE PRODUCTS.
-
Page 3: Table Of Contents
Contents Contents Introduction ............................ 1.1. Product Appearance 1.2. Box Contents Overview ............................2.1. Indicator Light Status Inverter Installation ......................... 3.1. Selecting a Location for the Inverter 3.2. Mounting Requirements 3.3. Mounting 3.4. Connecting GRID & BACKUP 3.5. Connecting PV 3.6. Connecting Battery to Inverter 3.6.1. - Page 4 Contents 4.2.1. Access Account Management 4.2.2. Start New Commissioning 4.2.3. Create a New User 4.2.4. Create Plant and Add Inverter 4.2.5. Enable Bluetooth and Select the Inverter 4.3. Complete Quick Setup 4.3.1. Wi‑fi / LAN Module LED Indicator Status 4.3.2. Common Issues 4.4.
-
Page 5: Introduction
Introduction Introduction This manual covers the installation for the following Dura-i Single Phase inverters: PD-DH1P-3.6K-G1 „ PD-DH1P-4.6K-G1 „ PD-DH1P-5K-G1 „ PD-DH1P-6K-G1 „ 1.1. Product Appearance 585mm Figure 1. Hybrid external appearance Figure 2. Product appearance Battery Connect Terminals COM2 Port(GPRS/WIFI/LAN) PV Switch BACKUP Output Terminal PV Input Terminals... -
Page 6: Box Contents
Introduction 1.2. Box Contents When you receive the inverter, please ensure all the parts listed below are included and undamaged. Letter Quantity Description Inverter Mounting bracket File package PV terminal connector group (PV+/PV‑); N/A for AC Couple BACKUP connector GRID connector Battery connector Meter (Optional) M12 Expansion screws... -
Page 7: Overview
Overview Overview Inverter status is displayed via the front panel LED display. 2.1. Indicator Light Status Led Indicator Status Description Solid Inverter on Slow Flash (2 sec GREEN Off grid status on and 2 sec off) Flashing (1 sec standby status on and 1 sec off) Solid Fault present with Inverter off... -
Page 8: Inverter Installation
Inverter Installation Inverter Installation The following steps explain the physical connections required for inverter installation. Follow these installation steps for all installations including AC coupled and Parallel. For parallel installation follow steps up until and then 4.3. Complete Quick Setup, Step 4. Battery type parameters (p31) switch to the parallel setup guide. -
Page 9: Mounting Requirements
Inverter Installation No direct sunlight No rain exposure No snow cover Direct sunlight Rain exposure Snow cover Figure 4. Protecting your inverter from the worst of the weather 3.2. Mounting Requirements Mount the inverter vertically or tilted backward by max 15°. The device cannot be installed if the supporting wall lean is greater than 15°... - Page 10 Inverter Installation ≥500 Above: 500mm Below: 600mm Front: 1000mm Left side: 200mm Right side: 350mm ≥600 350mm 350mm Figure 6. Clearance Requirements & installation at same height for multiple inverters Mounting Requirements Dura-i Inverter Standard Install Setup Guide...
-
Page 11: Mounting
Inverter Installation 3.3. Mounting Before mounting the inverter, you have to prepare expansion screws and a security screw. Step 1. Install the mounting bracket Use a siprit level to mark the position of the 3 holes on the wall. Refer to Illustration a. Drill 3 holes, Units: mm 16mm in diameter and 55mm deep. -
Page 12: Connecting Grid & Backup
Inverter Installation 3.4. Connecting GRID & BACKUP Before connecting the GRID terminal, ensure that both the AC terminal and the DC terminal are powered OFF and the PV switch is OFF. Otherwise, there is a risk of high voltage shock. Step 1: Assemble the AC connector. - Page 13 Inverter Installation Connect the AC connector to the Grid port on the underside of the inverter. Multiple inverters are not allowed to share a circuit breaker. „ NOTICE Load is not allowed to connect between the inverter and the AC „...
- Page 14 Inverter Installation Critical Loads Figure 11. Inverter Backup output capabilities are as follows: 3.6KVA – 13.1A „ 4.6KVA – 18A „ 5KVA – 21.7A „ 6KVA – 26.1A „ Backup must be switched on in settings for critical loads to receive constant power supply. for detailed information on how to setup backup features.
-
Page 15: Connecting Pv
Inverter Installation 3.5. Connecting PV Skip this step if the customer has no PV installed and does not plan to use the PV feature. Leave the PV isolator switch in ‘OFF’ position if not required. Please use approved DC cable for PV system. NOTE Before connection the PV panels, make sure the plug connector have the „... -
Page 16: Connecting Battery To Inverter
3.6. Connecting Battery to Inverter Dura-i only supports Duracell Energy battery modules and if multiple batteries are being used, they must be of the same battery type and generation. These battery modules have built in DC breakers therefore it is not necessary to install a separate DC breaker between inverter and battery but this is left to installer’s discretion based on local laws and... - Page 17 side incisions. Don’t cut off any cables. Lead the BMS cable through the plastic nut, seal and waterproof cover in turn. Inverter Installation INVERTER LITHIUM BATTERY 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 BMS communication cable Insert RJ45 terminal into corresponding port.
-
Page 18: Making Battery To Inverter Coms Cable
Inverter Installation 3.6.1. Making Battery to Inverter COMS cable If your inverter has not been supplied with a Battery to Inverter cable, or you need to make one up, follow the steps below to make one up: Cut an appropriate length of CAT5 or CAT6 cable, enough to reach from the inverter to the first battery. -
Page 19: Connecting Battery To Battery
Inverter Installation 3.7. Connecting Battery to Battery If you are using multiple batteries, connect them using the following steps: Ensure the first battery is connected correctly to the inverter as per the steps above. Connect the positive Lug / Amphenol of the first battery to the positive Lug / Amphenol on the second battery. - Page 20 Function Description DRM1/5 DRM2/6 DRM3/7 DRM4/8 Inverter Installation Function DRM 0/COM NC Description For the inverter to retain its IP65 waterproof rating, the CT NOTE Refer to the following steps: communication cable must be correctly fitted to the waterproof over. Unscrew the waterproof cover and loosen the plastic nut on the waterproof cover.
-
Page 21: Ct On Grid
Inverter Installation 3.8.1. CT on GRID To connect your CT on GRID, Install the CT around the incoming grid live cable before the main distribution board and ensure the arrow is pointing along the direction of flow from grid to board. Figure 19. -
Page 22: Ct Rj485 Pin Outs
Inverter Installation Figure 20. Check that the CT direction setting is correct on the Dura-i app by NOTE connecting via Bluetooth. Step 3. Power control parameters (p30) 3.8.3. CT RJ485 Pin Outs If your install requires you to remove and re‑fix the RJ485 end of the CT Clamp cable you can use the following guide to ensure you re-attach the connector correctly. -
Page 23: Connecting Wi-Fi / Lan Module
Inverter Installation 3.9. Connecting Wi-fi / LAN module For details, please refer to the corresponding Module Installation Guide in the packing. The appearance of modules may be slightly different. The figure shown here is only for illustration. Dura‑i inverter Wi‑Fi / LAN module currently NOTE only supports 2.4Ghz Wi-Fi networks. -
Page 24: Inverter Setup
Inverter Setup Inverter Setup The following steps explain the internal settings required for inverter setup. Follow these setup steps for all installations including AC coupled and Parallel. For parallel installation follow steps up until and then switch to the Terminer l’installation rapide, Step 4. Battery type parameters (p31) parallel setup guide. -
Page 25: Commissioning Process
Inverter Setup 4.2. Commissioning Process Scan the following QR code to download the Dura-i installers app. Log into the Service Account. Refer to Figure 23., Figure 23. If you do not have login credentials, contact NOTE or call sales.uk@duracellenergy.co.uk 01386 577845. -
Page 26: Access Account Management
Inverter Setup 4.2.1. Access Account Management Figure 24. This section shows all your previous plants and installations. 4.2.2. Start New Commissioning Click on the ‘ ’. Figure 25. Commissioning Process Dura-i Inverter Standard Install Setup Guide... -
Page 27: Create A New User
Inverter Setup 4.2.3. Create a New User Click Create New User. Refer to Figure Fill in the customer’s details in the required fields. Then click ‘Next’. Figure 26. 4.2.4. Create Plant and Add Inverter Figure 27. Fill in the plant‑specific details. Commissioning Process Dura-i Inverter Standard Install Setup Guide... -
Page 28: Enable Bluetooth And Select The Inverter
Inverter Setup Scan or input the inverter serial number. Figure 28. For parallel installations, select the correct number of inverters and NOTE scan/input all of their serial numbers. The first inverter serial number entered will act as the primary. 4.2.5. Enable Bluetooth and Select the Inverter Turn on Bluetooth on your mobile device and select the inverter serial number you will be commissioning. -
Page 29: Complete Quick Setup
Inverter Setup For parallel installations, follow the NOTE found at this link Parallel Install Guide 4.3. Complete Quick Setup Follow the 6 steps of the quick setup guide on -the Dura-i installers app. Step 1. Configure the internet connection First please read the tips on the screen carefully. Then choose the Wi‑fi SSID and enter the Wi‑fi password. - Page 30 Inverter Setup Figure 31. Step 3. Power control parameters In this step you will set how the inverter reads grid and house load. For “Power control” select CT Sensor. For “Meter location” select the location you have chosen in (p19). For 3.8.
- Page 31 Inverter Setup Step 4. Battery type parameters In this step you will set the Work Mode, Battery Type and backup parameters. For “Hybrid work mode” choose the work mode best suited to the customers’ needs. The most commonly used setting is Self-consumption 4.4.
- Page 32 Inverter Setup Step 5. Turn on inverter Figure 34. In this step, please click the power button to turn on the inverter. Green turns to red once enabled. DO NOT COMPLETE THIS STEP IF YOU ARE INSTALLING PARALLEL NOTE INVERTERS. Please now switch to the Parallel Setup Guide.
-
Page 33: Wi-Fi / Lan Module Led Indicator Status
Inverter Setup 4.3.1. Wi-fi / LAN Module LED Indicator Status Below is a description of the Wi‑fi module indicator colours: LED Status Module status Description LAN module is communicating Solid Green Communication normal normally with the server. Module is not connected to Solid Yellow Power on, no network connection the local Wi-fi network. -
Page 34: Hybrid Work Modes
Inverter Setup 4.4. Hybrid Work Modes Dura‑i offers three hybrid work modes for customers to choose from based on their usage requirements. These modes determine the priority for power distribution. 4.4.1. Self Consumption Mode In Self-Consumption Mode, the primary priority for power distribution is the household load. This means the inverter will first supply power to the house, then charge the battery, and any surplus power, once the battery is fully charged and the household load is met, will be exported back to the grid. -
Page 35: Time Based Control Setting
Inverter Setup 4.5. Time Based Control Setting Time based control feature is designed to allow the customer to control when the batteries are charged or discharged by the grid. This setting is mainly for customers who are on a variable price tariff with their energy provider and wish to charge batteries over night when their energy prices are lower. - Page 36 Inverter Setup Figure 37. In Work mode turn on “Time-based control”. Now you can set the following parameters based on your requirements. You can set up to 3 charge times and 3 discharge times. Figure 38. Time Based Control Setting Dura-i Inverter Standard Install Setup Guide...
- Page 37 Inverter Setup For the batteries to charge by grid you need to allow charge by grid. To do this, follow the steps below: In the console page (Bottom right of Dura‑i app), select Hybrid setting. Figure 39. In Hybrid setting select “Battery”. Figure 40.
-
Page 38: Backup Configuration
Inverter Setup Choose whether to allow the grid to charge the battery, which is prohibited by default. When the battery capacity or voltage reaches the set value, the grid will stop charging the battery. Figure 41. 4.6. Backup Configuration For backup circuit configuration navigate to Console then Hybrid Setting then Backup Load. Here you can enable or disable backup. - Page 39 Inverter Setup Figure 42. Below are the backup capabilities of the inverters based on their size limitations: 3.6KVA = 13.1A „ 4.6KVA = 20A „ 5KVA = 21.7A „ 6KVA = 26.1A „ Backup Configuration Dura-i Inverter Standard Install Setup Guide...
-
Page 40: Creating A Plant On The Dura-I App
Creating a Plant on the Dura-i App Establishing a customer plant connects the inverter to the internet, enabling the customer to view data online. Additionally, it allows the installer and Duracell to remotely access the data, make setting adjustments, and perform firmware updates. -
Page 41: Link Plane With Customer's App
5.3. Link Plane With Customer’s App At this stage of the installation the customers Duracell Energy App Account needs to be linked with their plant so they can view information and data. For an in-depth guide on how to set this up, refer to the Installer’s App Guide document or you can follow the steps below: Download the Duracell Energy App and sign in using your installers account. -
Page 42: Alarms / Issues
Alarms / Issues Alarms / Issues Below is a list of alarms which are common experienced during the setup procedure and guidance on how to check for alarms. If you are experiencing an alarm not on the list below, refer to the full Operation Guide for Dura-i. -
Page 43: Alarm Codes & Descriptions
Alarms / Issues 6.2. Alarm Codes & Descriptions Code Alarm Name Description & Solution If the alarm occurs once, no action is required. If the alarm occurs consistently check the grid voltage manually with a multi-meter. If the customer has multiple inverters on the same phase, Grid Over synchronised discharge of batteries can cause grid voltage to Voltage... -
Page 44: Customer Service Contact Information
Customer Service Contact Information Code Alarm Name Description & Solution If the alarm occurs occasionally, no action is required. Battery Over Check that battery over voltage protection value is properly set. Voltage Check that the battery voltage is not high. If the alarm persists, contact customer services. - Page 45 9020 105 Funchal, Portugal Duracell is a registered trademark of Duracell Batteries BV and Duracell U.S. Operations, Inc., used under license. All rights reserved. Manufactured under license and warranty supported by Puredrive Energy Limited in Toddington, UK. NEITHER DURACELL BATTERIES BV, DURACELL U.S. OPERATIONS, INC., NOR ITS AFFILIATES ARE INVOLVED IN THE...
