Digitrax UR90X Manual

UR90X
Features:
▪
Simplifies hookup, maintenance and troubleshooting of LocoNet.
▪
All connections plug-detachable.
▪
One RJ12 Throttle Jacks in front panel.
▪
IR and NET Indicator LEDs
▪
Two RJ12 LocoNet Jacks in rear for connection to other LocoNet devices.
Use with 6 conductor telephone cable with RJ12 6-pin connectors and daisy
chain your LocoNet ports around the layout.
▪
"Power sharing" charge Circuitry for throttles connected to six Universal
Panels. (External 12V supply required for this optional DT602/UT6 charging
source in sleep mode).
▪
PS14 external power supply is required for operation
NOTE TO PURCHASER: Infrared signals sent from the throttle to the
UR90X receiver are line of sight. Reflective walls and ceilings can improve
your IR reception, however more than one UR90X receiver will most likely be
necessary for full coverage of the average home layout.
Parts List
1 UR90X Front Panel
1 PS14 Power Supply

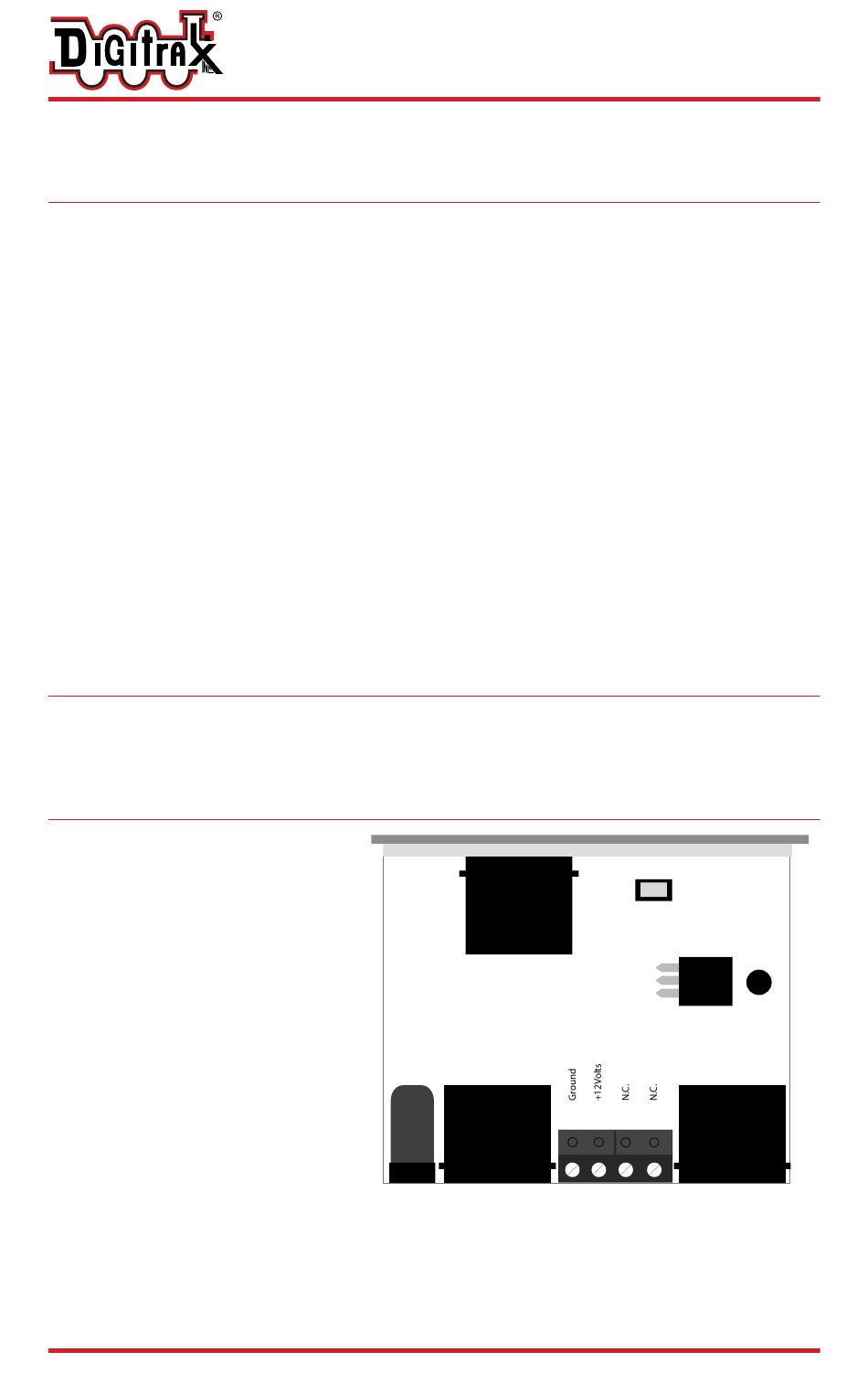

Panel Assembly
The UR90X is shipped with the
front panel unattached. Attach
the panel as oriented in Figure 1
prior to installing the UR90X in
your layout: Unscrew the two #2
screws on the faceplate rear tabs,
insert the UR90X PCB. Screw
back these two screws, which then
clamp the PCB horizontally at the
back of the panel.
© 2024 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
LocoNet Infrared Receiver
Figure 1
— 1 —
1 UR90X PCB with 4pin plug
1 Instruction Sheet
