GRAVITY PLUS TREADMILL

OWNER'S MANUAL AND ASSEMBLY GUIDE

Table of Contents

Need help?

Do you have a question about the GRAVITY PLUS TC2-0A-35 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Fitness GRAVITY PLUS TC2-0A-35

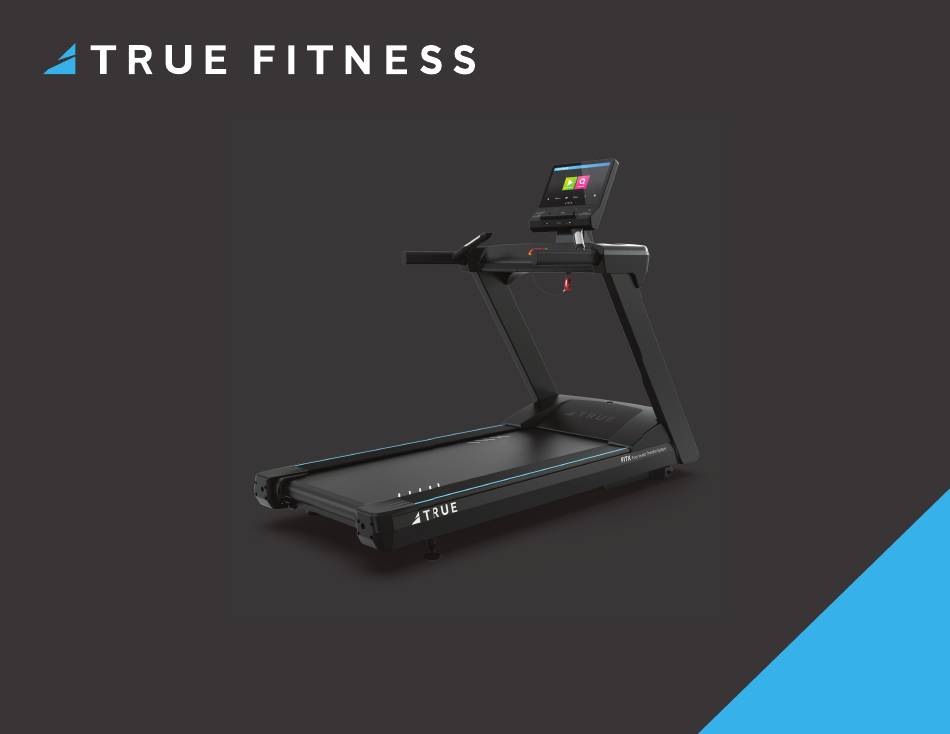

Page 1 GRAVITY PLUS TREADMILL OWNER’S MANUAL AND ASSEMBLY GUIDE...
Page 2: Important-Please Read
Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@trueﬁ tness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.
Page 3: Reporting Freight Claims Or Parts Damage
ﬁ le a claim if the carrier is not notiﬁ ed in a timely manner. Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@trueﬁ tness.com | 800.883.8783) or TRUE sales support (sales@trueﬁ tness.com | 800.426.6570) Monday-Friday during normal business hours. © 2025 TRUE Fitness All Rights Reserved.
Page 4: Table Of Contents
ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................15 PRODUCT FEATURES BASE OVERVIEW................35 CONSOLE OVERVIEW..............36 CARE AND MAINTENANCE INSPECTION................38 CLEANING THE EQUIPMENT............38 LEVELING THE MACHINE..............39 RUNNING BELT ALIGNMENT............40 TENSIONING THE RUNNING BELT..........41 PREVENTATIVE MAINTENANCE............42 LONG TERM STORAGE..............42 © 2025 TRUE Fitness All Rights Reserved.
Page 5: Safety Instructions
Use this equipment only for its intended use as described in this manual. • Use a TRUE AC power cord or AC/DC adapter only. • Position this product so the power cord plug is accessible to the user. © 2025 TRUE Fitness All Rights Reserved.
Page 6 • Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of reach of the equipment while it is in motion. © 2025 TRUE Fitness All Rights Reserved.
Page 7: Power Requirements
Number of Units Model Plug/Outlet* Dissipation (Hz) (Amps) per Circuit (Watt) NEMA 5-20 Dedicated 50/60Hz 1650 TC2-0A-35 NEMA 6-15* Dedicated 50/60Hz 1650 *The plug conﬁ guration for the power adapter may vary by country. © 2025 TRUE Fitness All Rights Reserved.
Page 8: Space Requirements
DIMENSIONS (L X W X H) 83” x 36” x 68” / 211cm x 91cm x 168cm • MACHINE WEIGHT 349 lbs / 158 kg • MAXIMUM USER WEIGHT 500 lbs / 226.7 kg © 2025 TRUE Fitness All Rights Reserved.
Page 9: Warning Decals
TC2-0A-35 number location 24-TC20A3501A SAMPLE base serial number location 220V-240V, 50/60 Hz, 8A COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.trueﬁ tness.com. © 2025 TRUE Fitness All Rights Reserved.
Page 10: Proper Training Position And Treadmill Safety
While using, ensure all hands, legs, and feet remain within the boundary box of the treadmill belt. Treadmill Exit When getting off the treadmill, wait until the belt comes to a full stop, then step on the side rails (straddle covers) and then onto the ﬂ oor. © 2025 TRUE Fitness All Rights Reserved.
Page 11: Assembly Instructions
DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@trueﬁ tness.com | 800.883.8783). © 2025 TRUE Fitness All Rights Reserved.
Page 12: Tools Needed For Assembly
TOOLS NEEDED FOR ASSEMBLY INCLUDED IN BOX 5mm Allen Wrench 15/16” Wrench 6mm Allen Wrench 7/8” Wrench 8mm T-Handle Allen Wrench #2 Phillips Screwdriver 7/16” Ratchet Wire Cutters 13mm Wrench Level Long-Length Ruler 0”-48”/0 cm-120 cm © 2025 TRUE Fitness All Rights Reserved.
Page 13: Box Contents
*The 220V Power Cord, 220V Power Inlet Assembly, and 220V Switch Assembly are only included with this product if the unit is being used on a circuit having a nominal rating of more than 120-V. © 2025 TRUE Fitness All Rights Reserved.
Page 14: Hardware Pack Contents
EST0019 PS0100 SUBASSEMBLY, SAFETY KEY SEMS PAN HEAD BOLT, M8XP1.25X90 ST1024 TPS8123 SCREW, BHCS, M8-1.25X55, BLK CORD LOCK, SAFETY KEY TCS0028 TC10124 SCREW, SEMS, M4-0.7X12MM, NYLOK, BLK TCS0024 TRUSS PHILLIPS BOLT M4XP0.7X12 TI0076 © 2025 TRUE Fitness All Rights Reserved.
Page 15: Assembly Steps
Using a #2 Phillips screwdriver remove and set aside the top and bottom TC10121 WASHER, M5, ID5 X OD15 X 2, BLK ZP motor cover plastics using 11 screws, 1 ﬂ at washer, and 1 motor cap TC10120 SCREW, PHMS, M5-0.8X15, BLK ZP cover. © 2025 TRUE Fitness All Rights Reserved.
Page 16 10 hex screws, but do not tighten. IMPORTANT! DO NOT fully tighten the hardware until step 4. zip tie I/O Data Network I/O Data Network Coaxial Power Coaxial Power © 2025 TRUE Fitness All Rights Reserved.
Page 17 B. Using a 5mm allen wrench and a 13mm open end wrench, install and tighten the 4 hex screws, 4 lock washers, and 4 lock nuts on the side of the heart rate handlebars. NOTE: Handlebars are marked L for left and R for right. © 2025 TRUE Fitness All Rights Reserved.
Page 18 TCS0024 NYLOK, BLK PS0100 SCREW, SHCS M8-1.25X25, BLK ZP PS0099 LOCK WASHER M8, BLK ZP A. Using a #2 Phillips screwdriver, remove and set aside the lower console rack covers using 8 screws. © 2025 TRUE Fitness All Rights Reserved.
Page 19 D. Using a 6mm allen wrench, attach the console rack to the pedestals using 8 hex screws and 8 lock washers. NOTE: Remove the protective ﬁ lm after installing the console rack. E. Fully tighten the pedestal hardware. Heart Rate Cable © 2025 TRUE Fitness All Rights Reserved.
Page 20 Step 5—Connect Console Rack Cables Connect the power, coaxial, network, and I/O data cables between the right pedestal and console rack. IMPORTANT! DO NOT pinch the cables. Network I/O Data Power Coaxial © 2025 TRUE Fitness All Rights Reserved.
Page 22 NOTE: Enable decline functionality on the console, these instructions are included in the console owner’ s manual. If the optional decline kit is installed, select YES, DECLINE to enable decline functionality. A power cycle will be required to complete the process. © 2025 TRUE Fitness All Rights Reserved.
Page 24 Move the brown cable to the brown dot. NOTE: Make sure the colored cables are across from each other. C. Using a #2 Phillips screwdriver, secure the 220V power inlet assembly and 220V switch assembly to the frame. © 2025 TRUE Fitness All Rights Reserved.
Page 25 ON position ). If it does not reset, or the circuit breaker operates again under normal use, contact TRUE Product Support at 800.883.8783 or service@ trueﬁ tness.com. © 2025 TRUE Fitness All Rights Reserved.
Page 26 Please follow the instructions included with your console for important conﬁ guration and calibration steps. Please contact product support right away if you run into issues setting up the machine: 800.883.8783 | service@trueﬁ tness.com | Monday–Friday 8:30am–5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.
Page 29 18 screws. NOTE: Be sure to use a hand screwdriver on the back corners of the lower rack console covers. NOTE: Do not fully tighten until all screws are installed. © 2025 TRUE Fitness All Rights Reserved.
Page 30 C. Attach the safety key clip to the metal tab. D. Remove protective ﬁ lm from safety key attachment point on the console rack. E. Attach the safety key to the console rack. © 2025 TRUE Fitness All Rights Reserved.
Page 31 Tools Used in this Step Item Part Description #2 Phillips Screwdriver TC10076 COVER, CONSOLE BACK TI0076 TRUSS PHILLIPS BOLT M4XP0.7X12 Using a #2 Phillips screwdriver, secure the rear console cover to the console mast using 2 screws. © 2025 TRUE Fitness All Rights Reserved.
Page 33 Check for slippage on the running belt. If adjustments still need to be made, see TENSIONING THE RUNNING BELT on page 30. safety clip quick access speed keys handrail on/off switch running belt straddle cover © 2025 TRUE Fitness All Rights Reserved.
Page 34 3 mph (5 kph) keeping off the unit. H. Allow 2 minutes for the belt to self adjust. Check to see if the belt is still slipping. Repeat these steps if additional tensioning is needed. © 2025 TRUE Fitness All Rights Reserved.
Page 35: Product Features Base Overview
A safety device designed to protect the treadmill from excessive electrical current. J. Power Cord Delivers power from the wall outlet to the treadmill. K. Leveling Feet An adjustable system used to aid in the leveling the treadmill. © 2025 TRUE Fitness All Rights Reserved.
Page 36: Console Overview
CONSOLE OVERVIEW UNITE TOUCHSCREENS (16” SHOWN) Android OS Touchscreen Choose Workout Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2025 TRUE Fitness All Rights Reserved.
Page 38: Care And Maintenance
CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the treadmill. Allow the treadmill to dry completely before using. Frequently vacuum the ﬂ oor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation of the unit.
Page 39: Leveling The Machine
IMPORTANT! Do not adjust the leveling foot to such a height that it detaches or unscrews from the machine. C. Verify the lock nut is securely tightened and ﬂ ush against the bottom of the frame. jam nut jam nut leveling foot © 2025 TRUE Fitness All Rights Reserved.
Page 40: Running Belt Alignment
C. Turn the treadmill on and start the belt at 3 mph (5 kph) keeping off the unit. D. Allow 2 minutes for the belt to self adjust. Repeat these steps if additional adjustment is necessary. © 2025 TRUE Fitness All Rights Reserved.
Page 41: Tensioning The Running Belt
Repeat these steps if additional tensioning is needed. Tools Used in this Procedure 8mm T-Handle Allen Wrench min 36” // max 36¼” (min 91.44 cm // max 92.08 cm) tick mark tick mark Long-Length Ruler 0”-48”/0 cm-120 cm © 2025 TRUE Fitness All Rights Reserved.
Page 42: Preventative Maintenance
TRUE recommends that quarterly scheduled maintenance be performed by a qualiﬁ ed service technician. Please contact your dealer or visit www.trueﬁ tness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certiﬁ ed service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...
Page 43: Additional Information Troubleshooting
Rubbing sound from treadmill when in operation Drive motor may be damaged Contact TRUE product support Drive belt may be misaligned Interference with anti-pinch bracket Adjust belt tension See Tensioning the Running Belt © 2025 TRUE Fitness All Rights Reserved.
Page 44 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2025 TRUE Fitness All Rights Reserved.
Page 45: Wiring Diagrams
TI0321 TI0319 TC0075 TCS0031 TI0321 TC0075 TI0319 TC0076 TCWIR005 TCWIR005 TC1-0A-35 220V POWER SWITCH WIRING TC2-0A-35 220V POWER SWITCH WIRING TC0076 TC0075 TC0075 TI0321 TES005 TI0321 TES005 TI0319 TCS0031 TI0319 TCS0031 TC0076 TCWIR005 © 2025 TRUE Fitness All Rights Reserved.
Page 46: Warranty Information Commercial Warranty
Coax/TV, HDMI, USB, mirroring or Ethernet connections, and safety key. Cables and Linear 1 Year Bearings See Warranty Details for terms, conditions, and complete coverage details. Labor** 1 Year Wear Items*** 90 Days © 2025 TRUE Fitness All Rights Reserved.
Page 47: Limited-Use Commercial Warranty
LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of commercial CARDIO equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or WARRANTY VAPOR, GRAVITY in-home use may receive alternative warranty coverage, provided they meet...
Page 48: Warranty Details
WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the speciﬁ ed period of time.
Page 49: Warranty Registration
St. Louis, MO 63366 WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2025 TRUE Fitness All Rights Reserved.
Page 50 CONTACT US service@trueﬁ tness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-TC2-0A-35 Owner’s Manual and Assembly Guide REV04 © 2025 TRUE Fitness All Rights Reserved.
