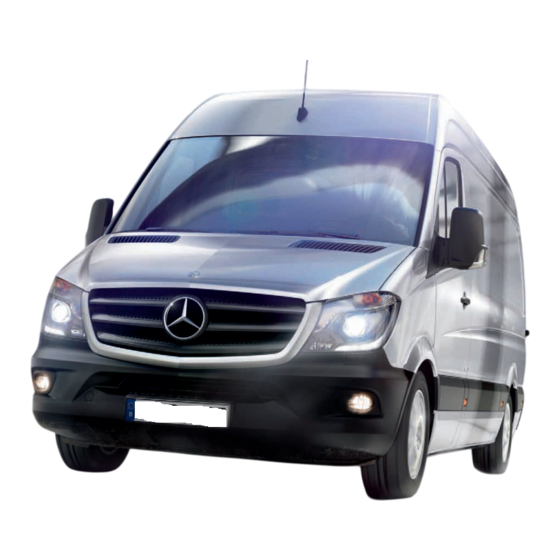

Mercedes-Benz Sprinter 2013 Operating Instructions Manual

Hide thumbs Also See for Sprinter 2013:

Operator's manual (292 pages)

Table Of Contents

page of 369

/ 369
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

Disclaimer

The following online version of the Owner's Man-

ual describes all models as well as all the stand-

ard and optional equipment of your vehicle. Coun-

try-specific differences in the language variants

are possible. Note that your vehicle may not be

fitted with all features described. This is also the

case for safety-relevant systems and functions.

Please contact your authorised Mercedes-Benz

dealer if you would like to have a printed Owner's

Manual for other vehicle models and vehicle

model years. The online version is the current

valid Owner's Manual version. Possible variations

to your vehicle may not be taken into account as

Mercedes-Benz constantly updates their vehicles

and equipment to the state of the art and introdu-

ces changes in design and equipment.

Please also read the printed Owner's Manual, any

supplementary documents and the digital Own-

er's Manual in the vehicle.

Copyright

All Rights Reserved. All texts, images, graphics,

are subject to Copyright and other laws for the

protection of intellectual property. They may not

be copied for commercial purposes or for trans-

mission, nor changed and used on other websites.

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the Sprinter 2013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mercedes-Benz Sprinter 2013

Page 1 Note that your vehicle may not be fitted with all features described. This is also the case for safety-relevant systems and functions. Please contact your authorised Mercedes-Benz dealer if you would like to have a printed Owner’s Manual for other vehicle models and vehicle model years.
Page 2 Sprinter Operating Instructions...
Page 3 Symbols WARNING Warning notes make you aware dangers which could pose a threat to your health or life, or to the health and life of others. Environmental note Environmental notes provide you with infor- mation on environmentally aware actions or disposal.
Page 4 Welcome to the world of Mercedes-Benz English in the interactive Operating Instruc- tions on the Internet at: Before you first drive off, read this Operating Instructions carefully and familiarise yourself www.mercedes-benz.de/ with your vehicle. Please adhere to the infor- betriebsanleitung-transporter...
Page 6 Contents Index ............4 At a glance ........... 31 Introduction ......... 23 Safety ........... 43 Opening and closing ......69 Seats, steering wheel and mirrors ..93 Lights and windscreen wipers ..103 Climate control ......... 125 Driving and parking ......151 On-board computer and displays ..
Page 7 Index Airbags 1, 2, 3 ... Front airbag (driver, front 12 V socket ........271 passenger) ........47 4ETS (Electronic Traction Support) . . . 60 Important safety guidelines ..... 46 Triggering ......... 45 Windowbag ........48 Air-conditioning system ABS (Anti-lock Braking System) see Climate control Display message ......
Page 8 Index Switching off the alarm ....66 Selecting a switch-on time ..... 140 Tow-away protection ......66 Setting the switch-on time ..... 141 Attachments AUX jack ..........272 see Add-on equipment Attachments/add-on equipment ..28 Authorised workshop BAS (Brake assist) see Qualified specialist workshop Display message ......
Page 9 Index Bleeding the fuel system ....162 Brake fluid (notes) ......357 Blind Spot Assist Checking brake fluid level ....290 Activating/deactivating ....190 Display message ......236 Notes/function ......188 Driving tips ........176 Trailer towing ......... 190 Important safety notes ....176 New brake pads/linings ....
Page 10 Index Wheels ........... 304 Rear interior light ......120 Windows ........304 Reversing lamp (platform truck) ..117 Wiper blades ........305 Side marker lamp ......119 Car key Tail lamp (platform truck) ....117 see Key Turn signals (front) ......114 Turn signals (rear, platform truck) ..
Page 11 Index Reheat function (air dehumidifica- Coolant (engine) tion) ..........135 Checking the level ......289 Setting the air distribution ..... 134 Displaying the temperature (on- Setting the airflow ......134 board computer) ......217 Setting the air vents ...... 137 Display message ......
Page 12 Index Diagnostics connection ...... 26 Distance warning function Diesel ..........351 Activating/deactivating ....63 Diesel engine Function/notes ........ 62 Warning lamp ........63 Preglow indicator lamp ....258 Door Diesel fuels Central locking/unlocking (key) ..70 Bio-diesel (FAME fuel) ....352 Control panel ........
Page 13 Index Brakes ........... 176 Manual retraction ......84 Downhill gradient ......176 Obstacle detection ......83 Driving abroad ....... 175 Electrical system Driving in mountainous areas ..181 Battery main switch ....... 152 Driving in winter ......178 Electric sliding door Driving on flooded roads ....
Page 14 Index Tow-starting (vehicle) ..... 318 Exhaust gas aftertreatment ....27 Warning lamp (engine diagnos- Display messages (vehicles with- tics) ..........257 out steering wheel buttons) ... 231 Engine electronics Display messages (vehicles with Notes ..........347 steering wheel buttons) ....242 Problem (fault) .......
Page 15 Warning and indicator lamps ... 36 Gear stick Instrument cluster lighting ....211 cleaning ......... 307 Instrument lighting Genuine Mercedes-Benz parts ..346 see Instrument cluster lighting Glove compartment ......264 Interior lighting ......... 110 Changing bulbs ......119 Front ..........110 Motion detectors ......
Page 16 Index Interior motion sensor Lashing eyelets Deactivating ........67 Fitting ..........281 Function ........... 66 Permissible tensile load ....360 Priming ..........67 Lashing points and lashing mate- Switching off ........67 rial ISOFIX child seat securing system ..53 Important safety notes ....
Page 17 Operation ........216 tion ..........150 Settings ......... 219 Load distribution ....... 278 Telephone ........226 Loading guidelines Mercedes-Benz Service Centre Important safety notes ....276 see Qualified specialist workshop Loading rails Message see Display message Maximum tensile strength ..... 360...
Page 18 Index Pets in the vehicle ......58 Vehicle registration ......26 Seat belt .......... 48 Warning note sticker ......27 Odometer ........... 217 Operating system see Total distance recorder see On-board computer see Trip meter Outline lamp Off-road driving Replacing bulbs ......118 Checklist after driving off-road ..
Page 19 Index Perimeter lamp Range (vehicles with steering Replacing bulbs ......118 wheel buttons) ........226 Petrol ..........349 Rear bench seat Pets in the vehicle ....... 58 Installing/removing (crewbus) ..97 Stowage compartment (crewcab) . . 267 Plastic trim (cleaning instructions) .. 307 Rear compartment Platform dropside Activating/deactivating the air...
Page 20 Index Refuelling Fuel filler flap ......... 167 Safety Fuel gauge ........211 Children in the vehicle ..... 51 Important safety notes ....166 Child restraint systems ....51 Refuelling process ......167 Safety systems see Fuel see Driving safety systems Releasing the parking lock man- Seat ually (automatic transmission) ..
Page 21 Index Service product Closing assist ........79 Bio-diesel (FAME fuel) ....352 Important safety notes ....77 Service products opening/closing ......77 see Electrical sliding door ® AdBlue special additives ....354 Sliding door and rear door Brake fluid ........357 Unlocking (key) ........
Page 22 Index Starting-off aid Switching the surround lighting Display message ......236 on/off (on-board computer) ..... 223 Indicator lamp ........ 252 Switch unit Operation ........157 see Control panel Start-off assist Swivel seat ........... 96 Display message ......236 Steering assist Display message ......
Page 23 Index Time Trailer coupling Setting the clock (vehicles with- see Trailer tow hitch out steering wheel buttons) ... 213 Trailer towing Setting the time (vehicles with 7-pin connector ......208 steering wheel buttons) ....222 Blind Spot Assist ......190 Timer Cleaning the trailer tow hitch ..
Page 24 Index Tyre pressure Calling up (on-board computer) ..327 Variable SPEEDTRONIC Display messages (vehicles with- see SPEEDTRONIC out steering wheel buttons) ... 230 Vehicle Display messages (vehicles with Correct use ........27 steering wheel buttons) ....248 Data acquisition ....... 29 Recommended .......
Page 25 Index Battery charge ....... 255 Windscreen Brakes ........... 252 Demisting ........134 Brake wear ........255 Windscreen heating Bulbs ..........260 Switching on/off ......135 Clutch pedal ........261 Windscreen washer fluid Diesel particle filter ....... 258 Topping up ........291 Doors ..........
Page 26: Product Information
Mercedes-Benz will take back your this planet sparingly and in a manner which Mercedes-Benz in order to dispose of it in an takes the requirements of both nature and environmentally responsible manner in humanity into consideration.
Page 27 Important safety notes Genuine Mercedes-Benz parts, approved con- version parts and accessories are available WARNING from a Mercedes-Benz Service Centre. Here If you do not have the prescribed service/ you will receive advice about permissible maintenance work or necessary repairs car-...
Page 28 1999/5/EC. You can obtain further informa- assemblies and systems. tion from any Mercedes-Benz Service Centre. There is a risk of damage to the vehicle if: Electromagnetic compatibility the vehicle makes contact with the ground, e.g.
Page 29 There is a risk of an accident. work on electronic components Do not connect any equipment to a diagnos- Mercedes-Benz recommends that you use a tics connection in the vehicle. Mercedes-Benz Service Centre. WARNING...
Page 30 It is advisable to register your vehicle with a To function properly, BlueTEC exhaust gas Mercedes-Benz Service Centre. Inform aftertreatment must be operated with the Mercedes-Benz as soon as possible about any ® ® change of address or vehicle ownership.
Page 31 ® When the AdBlue supply tank is empty, after Mercedes-Benz expressly for the type of vehi- the engine is restarted the engine manage- cle concerned. ment system restricts travel to a maximum of These parts have been specially tested to 20 km/h.
Page 32 Mercedes-Benz implied warranty or by the Services include, for example: New or Used-Vehicle Warranty. repair services...
