Copeland 810-1600 Quick Start Manual

Programmable touchscreen thermostat

Advertisement

Quick Links

Programmable Touchscreen
Thermostat
Setup in E2 and Site Supervisor
The Programmable Touchscreen Thermostat (P/N 810-1600) is a configurable device
intended for light commercial applications. The thermostat is a communicating, intelligent
sensor and controller combination with built-in temperature and humidity sensors used to
control systems such as conventional Rooftop Units (RTU) and Heat Pumps (HP).
The thermostat communicates over a Modbus RTU network that easily integrates with a
building management system (BMS). For more information, download the full user manual
(P/N 026-1739).

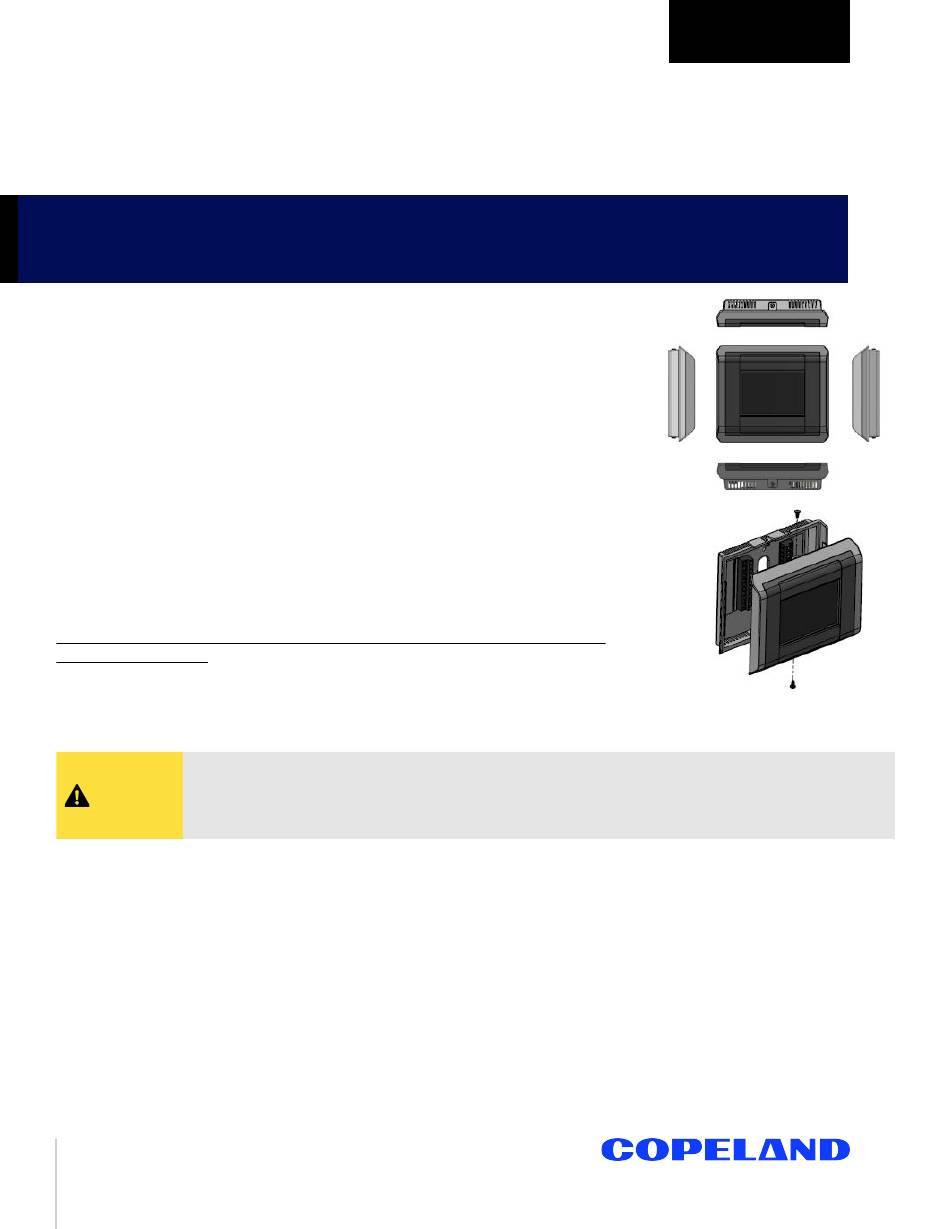

Thermostat Installation and Mounting
To open the thermostat enclosure, grip the top and the bottom edge of the front part of the
device and pull straight. A certain physical resistance is normal from the 24x contacts pins
(terminal strips and terminal blocks) that have to be separated during the operation.
To close the thermostat enclosure, make sure to align the top and the bottom tabs
between the front part and the baseplate, and then push the front part firmly toward the wall.
Again, some force is required to mate both parts.
Note that both top and bottom securing screws are optional and normally not
installed on the units.
To fix the baseplate on a wall, pass the wires through the opening of the baseplate, and use
either 2x self-taping screws and dry-wall anchors, or regular 6-32 machine screws to attach on a
standard single-gang electrical junction box (2" x 4").
Do not over-tighten the screws when attaching the baseplate on a wall as physical damage may
occur.
CAUTION
Keep the thermostat housing and vents clean and free of any debris to avoid malfunction of the
device.
026-4850 R2
©2024 Copeland LP.
QUICK START GUIDE
