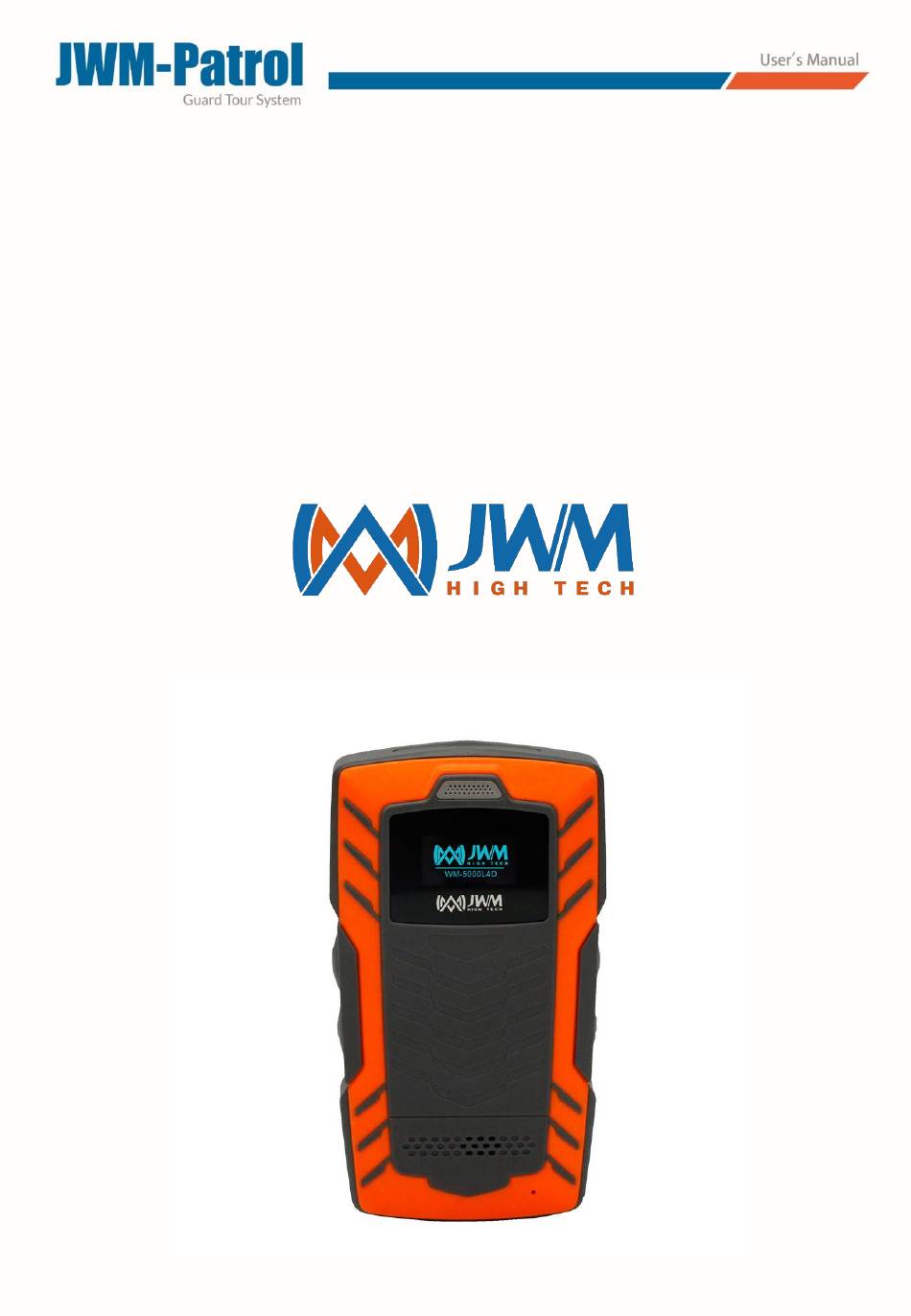

- Page 1 GUARD TOUR MANAGEMENT SYSTEM USER’S MANUAL WM-5000P4D...
- Page 2 WM-5000P4D Guard Tour System User’s Manual 1. What is guard tour system? A guard tour system is a system used to help companies and organizations to organize, log and execute guard tours and patrols in their assets ensuring that the officers will accomplish their tasks within the predefined time intervals.
-
Page 3: Functional Diagram
2. Applications warehouse systems improving rent a car systems monitoring proper service supervising personnel work time and place monitoring scheduled technical maintenance supervising guards supervising service producers supervising drivers monitoring rent systems airport protection and supervising workers hotel protection and supervising workers protection for other public institutions 3. -
Page 4: Call Button
Function Button Alarm Button 4. Prompt: Basic Function Working Prompts Red LED flashes one second and vibrates once. Power on Screen: JWM logo Voice: Make Patrol Easier Vibrates once Power off Screen: POWER OFF Voice: Power off Internet registration automatically when power on. - Page 5 5. Prompt: GPS Function Working Prompts GPS Positioning Device automatically position after power on Positioning Red LED flashes once per second Successfully Screen: GPS Icon Vibrates once Screen: ARRIVED Voice: Arrived patrol location Arrived GPS Play voice event if generate position •...
- Page 6 6. Prompt: Phone Call Function Working Prompts Device in standby mode, press call button Vibrates once. Screen: Contact information Contact Press call button for switching another Switching If no contact Vibrates 3 times Screen: NO CONTACTS Voice: No contact In contact information interface, hold button for 3 seconds Vibrates once SCREEN: DIALING...
- Page 7 7. Prompt: Power and Data Upload Working Prompts Charging Red LED solidsss on Full charge Green LED solidsss on Screen: UPLOAD; Voice: Uploading; Blue LED solidss on Upload Successfully: Vibrates once Screen: UPLOAD OK Voice: Data uploaded successfully Upload Patrol Data Blue LED flashes 5 times and turns off Upload Failed: Vibrates 3 times...
- Page 8 8. Prompt: Read Checkpoint Working Prompts Vibrates 3 times Clock error Screen: TIMING PLS Voice: The clock is wrong, please timing Vibrates once Screen: SUCCESS Read Checkpoint Voice: Reading successfully Successfully Play voice event if generate • Sending data directly if internet register successfully •...
-
Page 9: Technical Specification
9. Technical Specification Model WM-5000P4D Physical Material Metal body with silicon shell outside Dimensions 120mm*68mm*32mm Weight 221g Reading Type RFID Reading Frequency 125KHz 125KHz card: 3-5cm Reading Distance -20℃ to +85℃ Operation Temperature 60,000 pieces Storage 32Mb Flash ROM Memory... - Page 10 RFID checkpoints 10. System Components 1) WM-5000P4D reader 2) USB Cable 3) Standalone Software 4) Charger 5) Holster 6) Checkpoints (optional purchase) 7) Guard ID Tags (optional purchase)
- Page 11 11. User Flow 1) Make a sketch of the checking places that the guard needs to check. 2) Install checkpoints on each checking place. *The round shape checkpoint can be stuck or screwed on the wall. *For the cylinder glass checkpoint, make a hole in the wall, and then put it inside and cover it.
- Page 12 How to collect GPS position ? • The security guard take the WM-5000P4D reader outside. • Guard arrives the GPS checking place where he wants to patrol, Long press the function button • Device vibrates once. Screen: GPS COLLECTING Voice: Collecting GPS locations •...
- Page 13 12. Warranty Policy (1) All products are strictly tested and qualified before sale. (2) Hardware devices sold by our company are covered by 5 Year parts warranty. (3) During 5 Year warranty period, we will replace or repair units without charge, subject to any problem coming from product itself under ordinary usage condition.
- Page 14 JWM Hi-Tech Development Co., Ltd TEL: 0086 24 83782790 Email: sales@jwm-rfid.com support@jwm-rfid.com Web: http://www.jwm-rfid.com...
